Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $110.65 | $108.39 | $105.01 | $100.49 | Contact US |

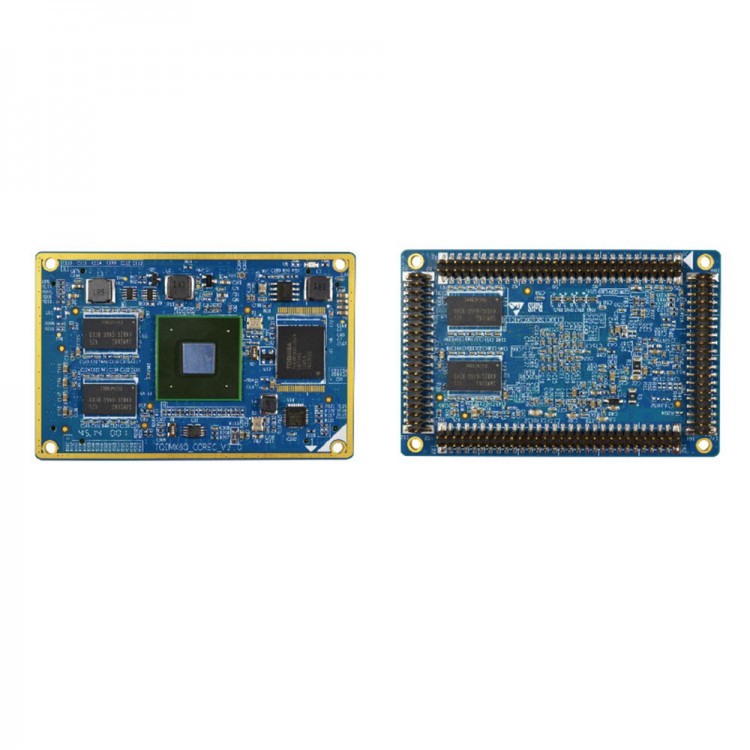

i.MX6Q Cortex-a9 Core Board 1.2GHz 2GB DDR3 8GB eMMC Quad Core Module for Android4.3 Ubuntu 12

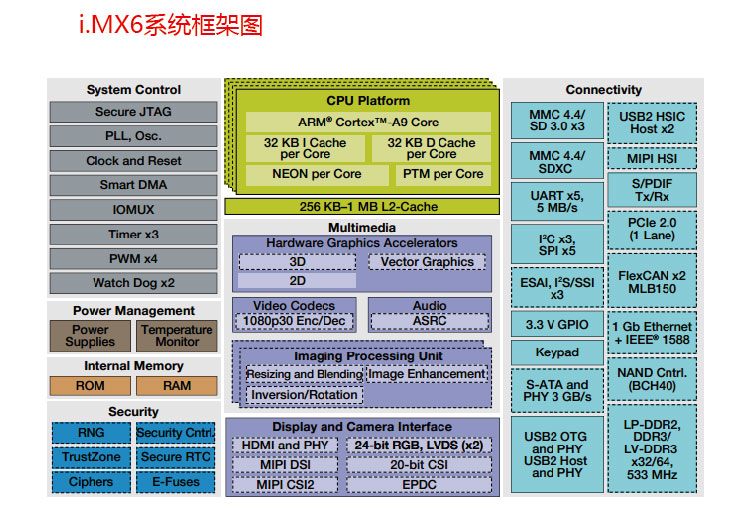

Features of CPU
- 4 ARM Cortex-A9 kernel, each core operating frequency up to 1.2 GHz
- 2.0 spacing BTB interface, lead out interface up to 200 pin
- Provide Android4.3,Linux+QT, ubuntu12.04 system
- With ARMv7TM, Neon, WFPV3 and Trutzone support
- Processor 64/32bit
- 12000DMIPS
- With 3D/2D graphics acceleration engine, support 4096*4096 pixels
- Video coder supports MPEG-4/H.263/H.264 up to 1080P 30fps
- Decoding MPEG2/VC1/Xvid up to 1080P 30fps,support HDMI TV output
Specification:
- Processor: i.MX6Q
- Core:4
- Framework: a9
- Max. frewquency: 1.2G
- GPU: GC2000
- Polygon generation rate:100M
- Pixel fill rate: 1.25G
- Floating point operation:24G
- Memory support: DDR3-1066, LV-DDR3-1066 and LPDDR2-1066(single and dual channel) NANDFLASH,NORFLASH,PSRAM
- Memory channel: 64bit sual channel
- USB2.0 OTG: 1 channel
- USB2.0 HOST: 1 channel
- HDMI: 2 channel
- HDMI: 1
- Hard disk interface:sata ii 3Gbps
- RGB interface: 2 channels( single channel 1920*1200)
- LVDS interface: 2 channels(single channel 1366*768,suanl channel 1920*1080)
- Multimedia decoding and encoding: Support 2 channel 720P at the same time
- Ethernet: 1000/100/10 Mbps
- PCIE interface: 1 channel, PCIE2.0
- CAN bus interface: 2 set
- Audio interface: 3 channels I2S/AC97
- Camera interface:3 set
- SD/SDIO interfaace: 4 set,support 1.8V/3.3V CARD
- SPDIF interface: 1
- Matrix keyboard keyboard: 8*8
- I2C: 3 channel
- SPI: 5 channel
- UART: 5 channel
- GPIO port level: 3.3V
- Power consumption: 350W
Core board parameter:
- Core board size: 52x80x8.5mm (no interface size)
- Core board layer: 8 layer deposition process
- Input voltage: 12V power input
- CPU: NXP (Freescale) i.MX_6Quad
- Frequency: Max x4Core 1.2GHz
- SDRAM: 2GB DDR3 1333M
- Store: 8GB eMMC, supports up to 32G TF card or SD card boot memory
- OS: Android 4, 4.2, 4.3, Ubuntu 12.04
- Kerne: 3.0 or higher version
Android4.3
- Cross compiler: Arm-fsl-linux-gnueabi-gcc-4.6.2
- Support SD card off line fast program and write
- Support USB download and program
- Support single / multiple files with a key to write
- Support EXT4 format system file program and write
- MFG Tools supports Windows XP/ Vis /Windows7
- Multi boot mode selection (eMMC, SD card)
- Memory (1G/2G)
- TFTP boot mode (load image and start system)
- Ubuntu : Linux-3.0.35
- Support EXT4/NFS/FAT32/NTFS
- eMMC drive(4G/8G)
- Watchdog drive
- IO drive
- RTC DRIVE
- RTC driver
- SPI driver
- User button driver: 4
- I2C driver
- Capacitive touch driver
- LCD driver
- USB host driver (support USB hub, USB keyboard U-disk )
- USB Device driver
- TF/SD/MMC drive
- Seriel port drive
- Audio drive
- Ethernet drive
- USB camera
- IPU drive
- VPU drive
- HDMI drive
- 3D acceleration
- 2D acceleration
- LVDS single dual channel
- USB to seriel port drive
- SATA hard-disk drive
- Encoding uboot
- GStreamer hardware encoding and decoding
Linux + Qt system:
- Cross compiler: Arm-fsl-linux-gnueabi-gcc-4.6.2
- Support SD card off line fast program and write
- Support USB download and program
- Support single / multiple files with a key to write
- Support EXT4 format system file program and write
- MFG Tools supports Windows XP/ Vis /Windows7
- Multi boot mode selection (eMMC, SD card)
- Memory (1G/2G)
- TFTP boot mode (load image and start system)
- Ubuntu : Linux-3.0.35
- Support EXT4/NFS/FAT32/NTFS
- eMMC drive(4G/8G)
- Watchdog drive
- IO drive
- RTC DRIVE
- RTC driver
- SPI driver
- User button driver: 4
- I2C driver
- Capacitive touch driver
- LCD driver
- USB host driver (support USB hub, USB keyboard U-disk )
- USB Device driver
- TF/SD/MMC drive
- Seriel port drive
- Audio drive
- Ethernet drive
- 3G drive
- USB TO SERIEL PORT drive
- SATA drive
- LVDS single and dual channel
- Embedded graphics system interface:Qt/Embedded-4.5
- More APPs
Package List:
- 1 x i.MX6Q Cortex-a9 board
