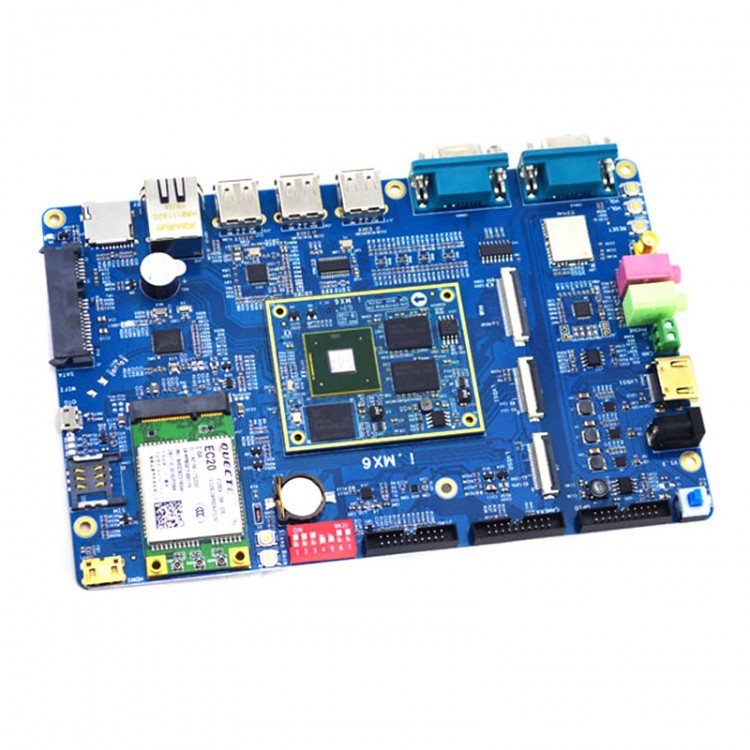

i.MX6Q Developemnt Board 2G+16G Quadcore Cortex A9 iMX6Freescale NXP for DIY
Core board parameters
- Size: 51mm*61mm
- CPU: Freescale Cortex-A9 quad core i.MX6Q, main frequency 1 GHz
- Memory:DDR3 2GB
- Storage: EMMC 16GB storage
- Power management: Internal independence
- Working voltage: 5V
- System support:Linux-QT/Android/Ubuntu operating system
- Extension of PIN: up to 320
- Operating temperature: -20 to +80 deg C

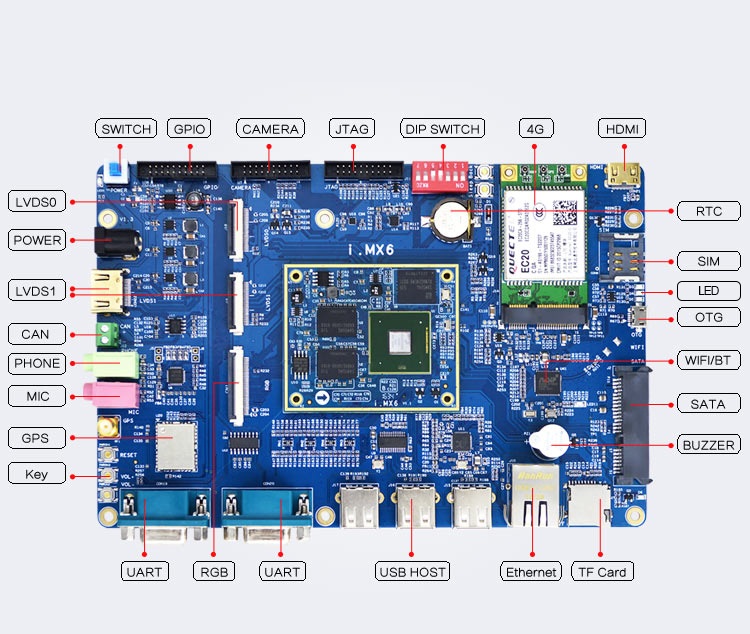

Bottom plate parameters
- Size: 125mm*190mm
- POWER: DC power input interface, 12V/2A power input
- SWITCH: Power switch
- LVDS interface: 2CH
- RGB interface: 1 CH
- CAN: 1CH CAN bus interface
- MIC: Support MIC input
- PHONE: Support headphone input
- RESET: 1 reset button
- Serial port: 2CH serial port
- HOST USB: 3CH
- Net export: 1CH Gigabit Ethernet, RJ45 interface
- TF Card: 1
- SATA: 1 SATA interfaces
- WIFI Bluetooth: Support
- OTG: 1CH
- SIM card slot*1
- HDMI interface: Standard v1.41080p HDMI HD resolution output
- SWITCH DIP: 1*7 bit dial switch
- JTAG: 1
- CAMERA interface*1, support 5MP camera
- GPIO Interface: 20PIN
- Key: 4
- RTC: Real time clock
- BUZZER *1
Package list:
- 1 x Development board
- 1 x Net line
- 1 x Seriel line
- 1 x USB cable
- 1 x HDMI cable
- 1 x Power adapter
- 1 x CD
