MPPT controller LCD setting information

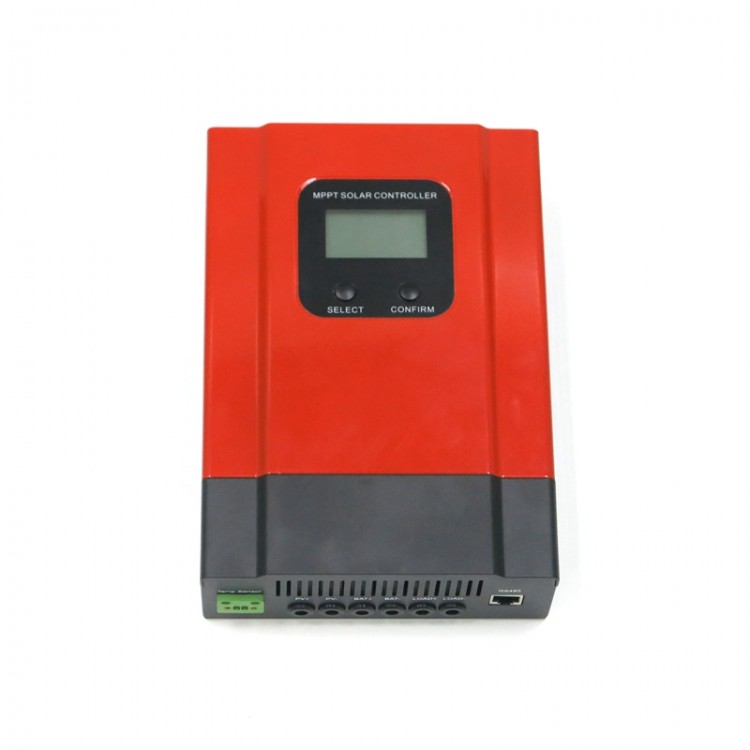

Product Description:
- eSmart3 series is the third generation of eSmart mppt controller,based on eSmart1,eSmart2 series mppt controller,we update the display with back-light LCD display,load control way,connect way,internal structure,reduce the static standby self-consumption, energy saving and more simply for small system.etc.
- It features an efficient MPPT control algorithm to track the maximum power point of the PV array.Greatly improve the utilization of solar panel.Its intelligent LCD and upper PC display,mostly convenient for customers to check,records and parameter setting.It widely used in off-grid solar system,communication base station solar system,household solar systems,street light solar systems, field monitoring and other fields temperature etc.
Features:
- High efficiency MPPT control algorithm,MPPT efficiency≥99.5%,whole Machine conversion efficiency upto 98%;
- 12V/24V/36V/48V system Automatic Recognition,users can use it in different system conveniently.
- Maximum PV input voltage: DC150V
- Charge mode: three stages (fast charge,constant charge,floating charge).It prolongs service life of the batteries.
- Discharge mode: ON/OFF mode,PV voltage control mode,Time control,PV & Time control mode.
- Recommended battery types: Flooded,Sealed lead acid,Gel battery.Other types of the batteries can also be defined.
- Most information could be provide by LCD like: model No.,PV input voltage,battery type,battery voltage,charging current,charging power,working status and so on.Also customer's information like company name,website and logo can be added into Solar Eagle software.
- RS485 communication,we can offer communication protocol also,it's convenient for user's integration management.
- CE,RoHS,FCC certifications approved.We can help clients to approve other certifications.

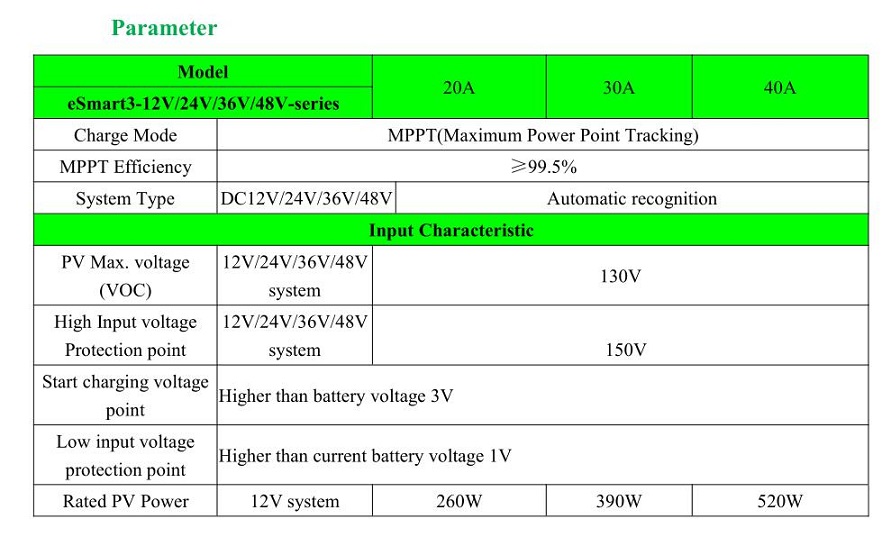

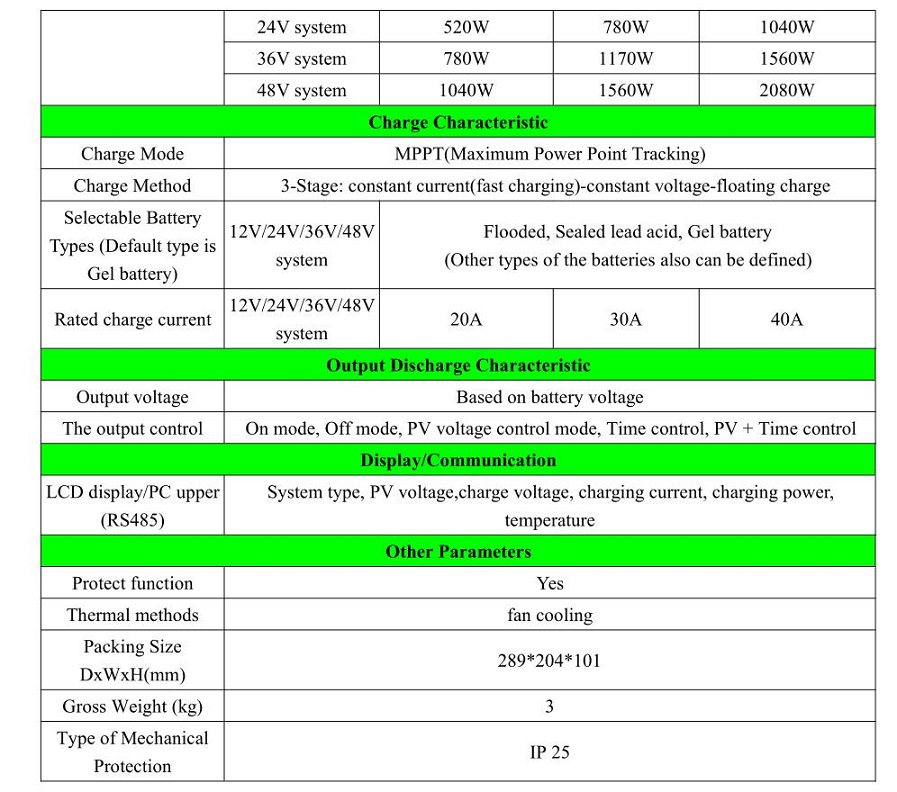

Specification:
- Rated current: 20A 30A 40A
- Rated PV input power:12V/24/36/48 system.20A--260W/520W/780W/1040W;30A--390W/780W/1170W/15607W;40A--520W/1040W/1560W/2080W
- Max PV input voltage (VOC):15A 20A:DC100V;30A 40A 50A:DC150V
- LCD display/RS485 to USB(PC software optional),Meter,WiFi modular(APP):System type,PV type,PV voltage,Charge voltage,charge current,charge power,temperature etc.
Note:The whole product packaging not include in communication wire,APP and meter.If have required,please purchase it alone.
Package List:
- 1 x I-P-eSmart 3 Series MPPT Solar Charge Controller
- 1 x User manual
