i-PCANC CAN Interface for USB Professional CAN Adapter Hardware Outperforming IPEH-002022/21
Description:
i-PCANC adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications. The opto-decoupled version guarantees galvanic isolation of up to 1500V between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic. The device's driver supports different operating systems, so the program can easily access the connected CAN bus.
Technical Specifications:
- Support USB (full-speed mode; compatible with USB1.1, USB2.0, USB3.0)
- Supports high-speed CAN connection (ISO 11898-2)
- Support bit rate adjustment: 5Kbit/s~1Mbit/s
- Timestamp resolution: about 42us
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via 9-pin D-Sub interface (Complies with CiA 303-1)
- CAN galvanically isolated up to 1500V
- Supports for Windows 7, Windows 8.1, Windows 10 and Windows 11
- Support for Linux systems; kernel for Linux has integrated PCAN driver (Socket CAN)
- Support for MacOS (for Mac CAN)
- USB cable: industrial-grade 1.5m/4.9ft black cable

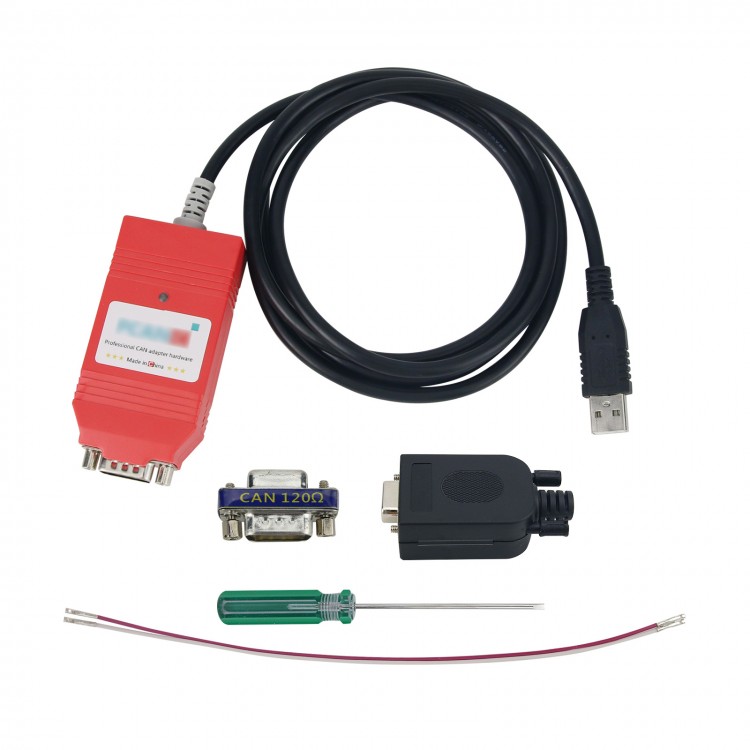

Package Included:
- 1 x CAN Adapter
