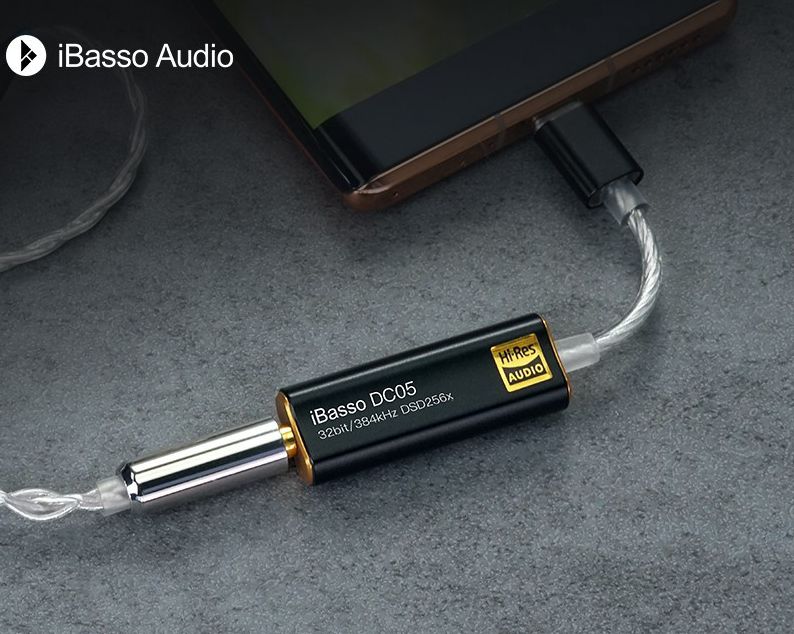

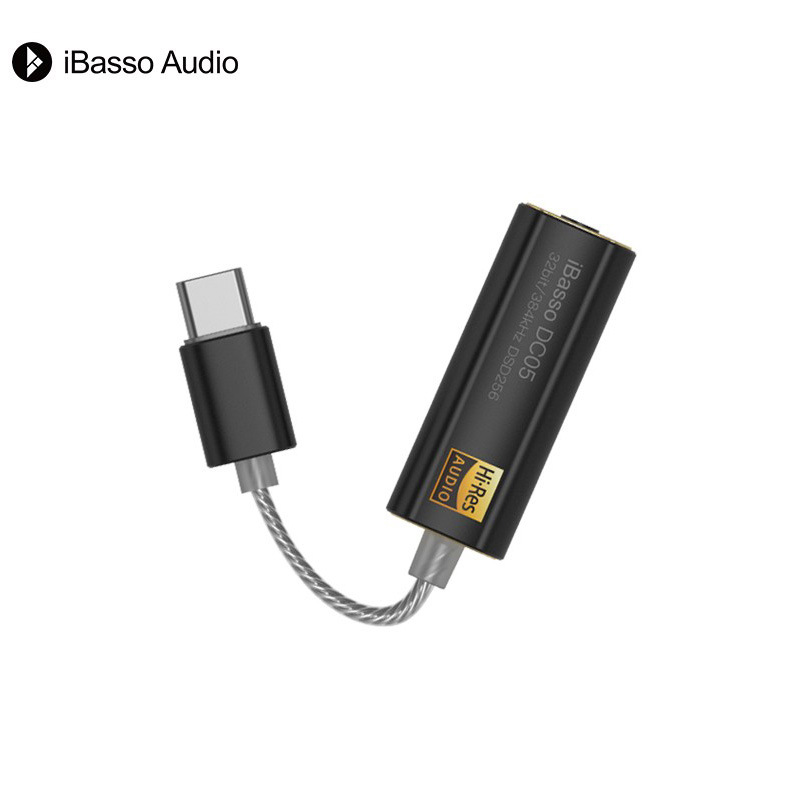

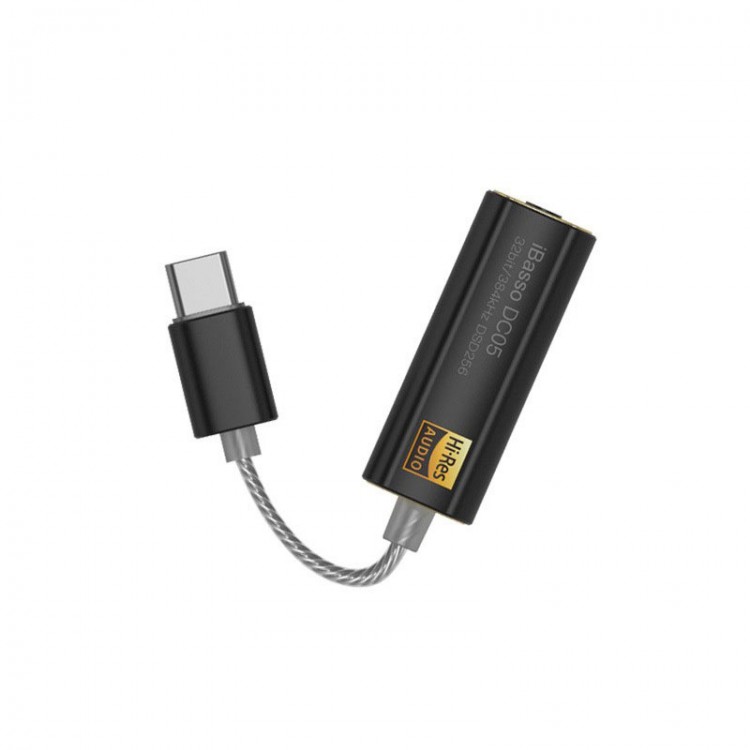

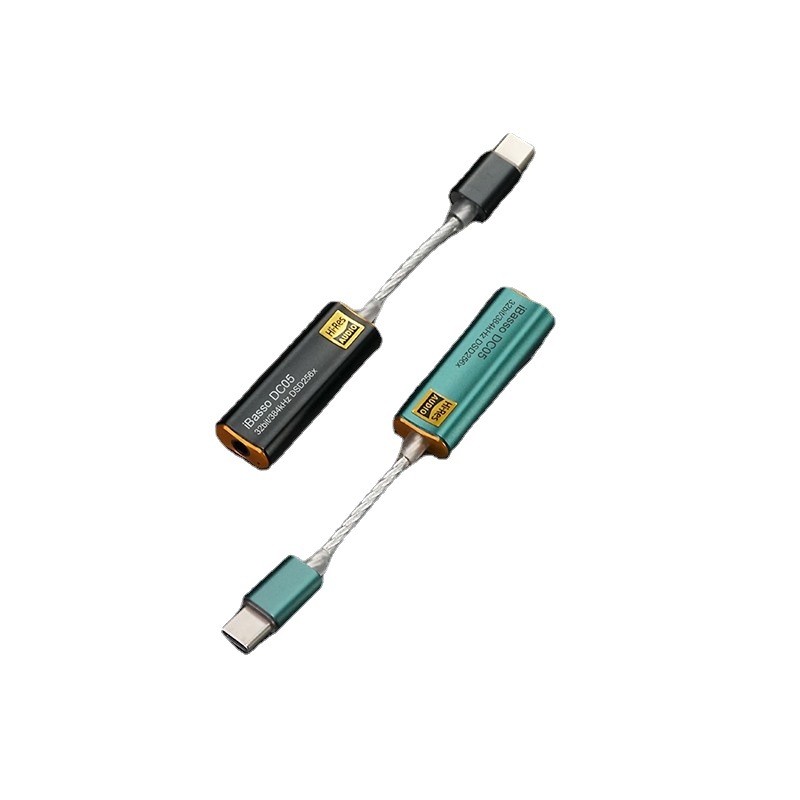

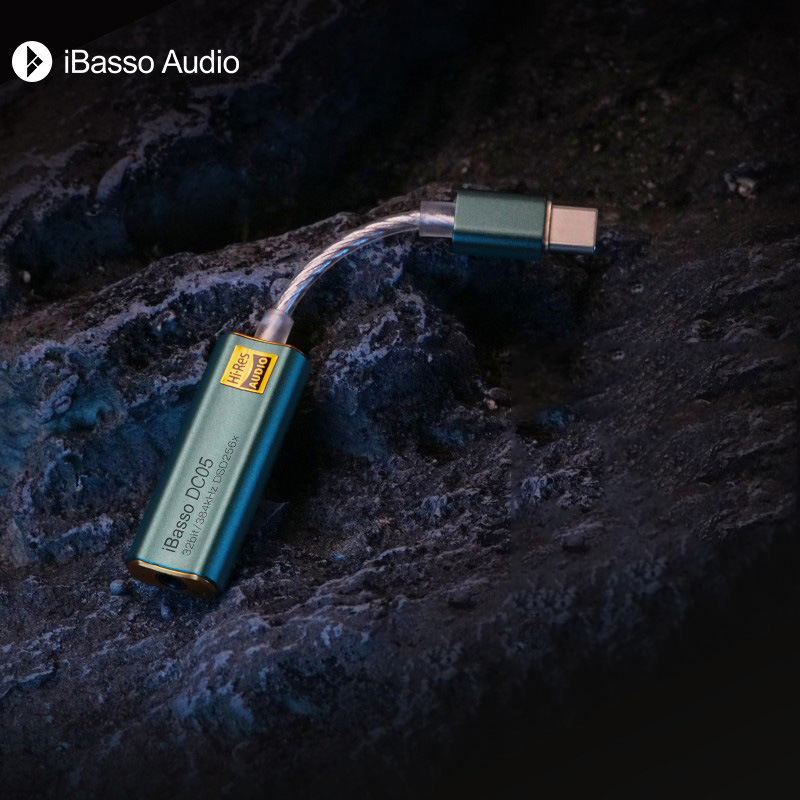

iBasso DC05 Decoding Amplifier USB Type C to 3.5mm for Android Phone Lossless HiFi Headset Earphone Audio Decoding wired
Description:
- Parameter index:
DAC chip: ES9219C*2
Maximum output level: 2Vrms (300Ω Load), power is about 13mW
Maximum non-distortion level: 1.73Vrms (32Ω Load), power is about 93mW
Maximum distortion level: 1.5Vrms (16Ω Load), power is about 140mW
Noise floor: 1 55pVrms
SNR: 121dB
THD+N: -105dBA (32Ω load)
Output impedance: <0.5Ω
PCM: support 32bit/384kHz
DSD: Native DSD64, DSD128, DSD256
MQA: Support 16X expansion
Weight: about 9g
Length: Approximately 105mm
- DC05 is equipped with Japanese for NDK-femtosecond crystal oscillator, which is of pioneering significance in decoding line, can effectively reduce phase noise, and provides more accurate clock reference for DACs.
- MQAs can provide high resolution playback at low data rates, solving the problem that high-resolution audio files are too large when streaming media. With Tidal and other MQA-supporting playback software, DC05 can realize MQA 16X expansion.
- Where 2X is expanded by software (unfolding), 8X is rendered by DAC hardware (Hardware rendering).
- No cumbersome settings, just apps and audio files support, plug and play, convenient and fast.

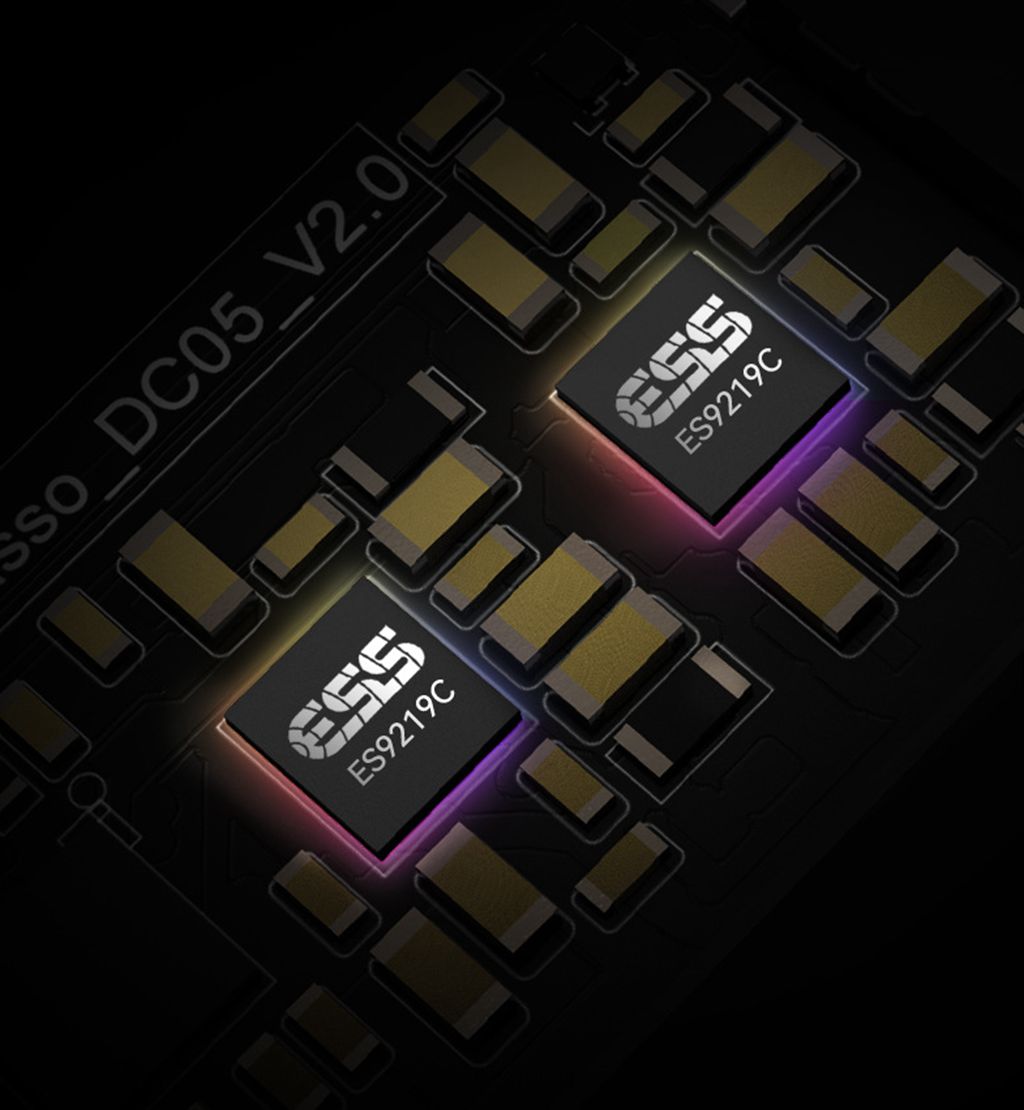

- We strictly follow the principle of sound quality and performance first, and adopt dual DAC
design to achieve better output power and bottom noise control than single DAC. Based on double materials, we give full play to the advantages of for ES9219C to ensure outstanding sound performance.

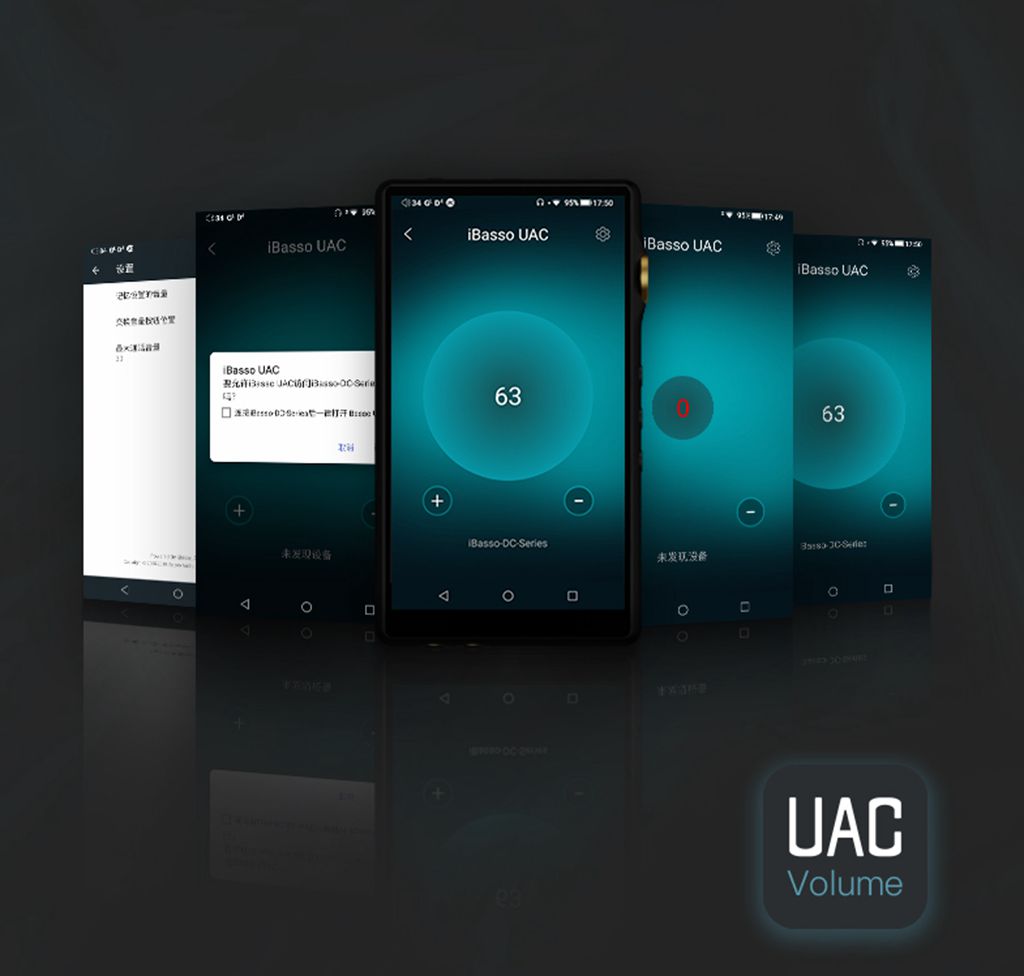

- DC05 can be plug and play on Android devices with Android 5.1 or above (due to the influence of device system or hardware, there may be compatibility differences on a few Android devices). Since the output level of DC05 is as high as 2Vms, even if the volume is 1 on some Android devices, the volume may be very high. Therefore, it is recommended that you install a dedicated Android APK-iBasso UAC to achieve more fine volume adjustment. Some models of Android devices may need to manually turn on the OTG function in the system settings. When used with mobile phones, it can support up to PCM32bit / 384kHz and native DSD 256 output.
Features:
- ES9219C x 2
- Support MQA 16X expansion
- 93mW@32Ω / 140mW@16Ω
- THD+N -105dB
Attention:
- If the headset with remote control and microphone is connected to DC05, the remote control and microphone functions of the headset cannot be used.
Package Included:
- 1 x DC05 Decoding Headphone Amplifier
- 1 x USB-C to USB-A Adapter
- 1 x Instruction
