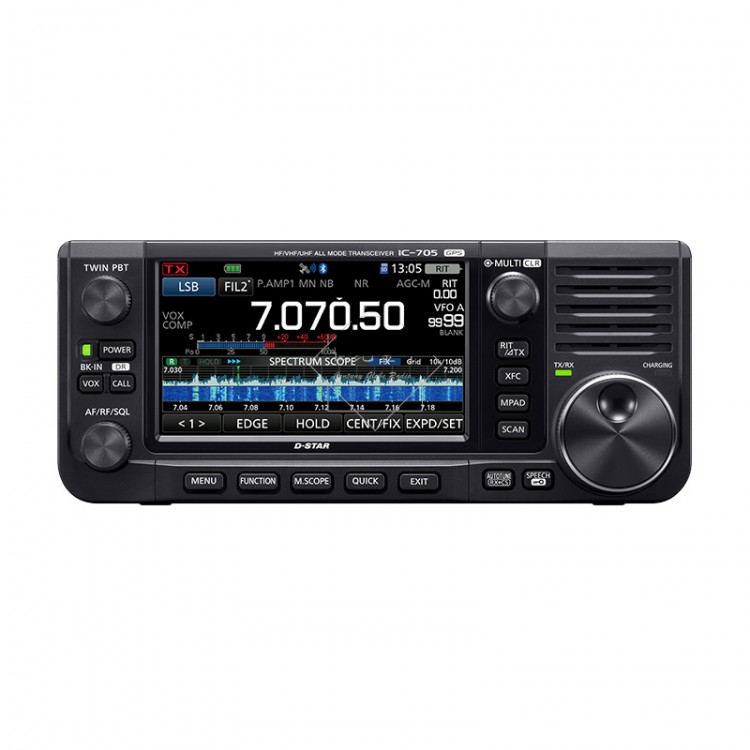

IC-705 HF VHF UHF All Mode Transceiver GPS Mobile Radio Portable Radio Built-In Bluetooth For ICOM

IC-705 HF VHF UHF All Mode Transceiver GPS Mobile Radio Portable Radio Built-In Bluetooth For ICOM

Features:
- HF/50/144/440 MHz Multi-mode. From HF to 50/144/440 MHz, you can enjoy a variety of bands in the D-STAR DV, SSB, CW, RTTY, AM and FM modes. The IC-705 receives continuously from 30 kHz through the 144 MHz band. You can also enjoy FM broadcast and air band reception.
- RF Direct Sampling System. The IC-705 employs an RF direct sampling system, where RF signals are directly converted to digital data. Then processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction as well as reducing internal noise that can mask weak signals. * The down-conversion IF sampling method is used for 25 MHz and above.
- Real-Time Spectrum Scope and Waterfall Display. Performance seen with the IC-7300 and IC-9700 spectrum scope is at the tip of your fingers for field operation. You can quickly see band activity as well as finding a clear frequency, all in the compact radio and not as an expensive add-on. Scroll mode automatically keeps the operating signal within the scope range.
- Large Touch Screen Color Display. The large 4.3" color TFT touch LCD, same size as the IC-7300 and IC-9700, offers intuitive operation of functions, settings, and various operational visual aids, such as the band scope, waterfall, and audio scope functions.
- One-Touch FT8 Mode Preset. Preset memory offers smooth FT8 mode operation. You can start FT8 mode operation only by selecting [FT8] from PRESET menu. Up to five preset memories can be stored.
- Compact and Lightweight Design. "Base Station" performance in the palm of your hand! You will quickly see how this compact radio is rugged, for outdoor use.
- BP-272 Li-ion Battery Pack or 13.8 V DC External Power Supply. Utilizing the high capacity Li-ion battery from the ID-51A and ID-31A handheld radios. A 13.8 V DC external power supply can be used for operation and charging of the BP-272.
- Maximum Output Power 5 W (BP-272), 10 W (13.8 V DC). In portable mode, the IC-705 has the maximum output power of 5 W from the BP-272 which can last approximately 3 hours*. This is perfect for true 5 W QRP as well as the 0.5 W QRPp operations. Once you setup with a 13.8 V DC power source, you have up to 10 W. * TX : RX : standby = 1 : 1 : 8 (The Power Save function ON, in the FM mode).
- WLAN/Bluetooth Technologies. Utilize WLAN/Bluetooth technologies for linking and remote control, for a true wireless operation. The VS-3 headset (optional) enables more comfortable operation via Bluetooth.
- GPS Functions. An internal GPS receiver and antenna enhance your operations by providing location logging*, RX/TX locations via D-PRS , "Near Me" repeater search/scan, QSO recording with metadata*, and internal clock synchronization.
- MicroSD Card Slot. The microSD card slot enables the storage of user profiles, QSO recording, TX voice memory keyer, RTTY logging, GPS data, screen capture, firmware upgrades, and programming.
- Micro USB Connector. In addition to the two COM ports, radio control plus audio, the IC-705 can be charged via the micro USB port.
- D-STAR Function. Enjoy the latest DV mode features with the IC-705. Have direct access to the D-STAR network with Terminal/Access point modes. Additionally, the IC-705 has the Photo Share feature introduced with the IC-9700. Share photos, without the need of a computer with other users with an IC-705 and IC-9700.
- Programmable Speaker Microphone. Enjoy portable operations with the supplied HM-243, programmable speaker microphone. Perfect for operation with the IC-705 safely secured in the optional LC-192 backpack. User assignable buttons put functions like frequency and volume adjustments at the tip of your fingers.

Product Information:
Basic Parameters:
- Model: IC-705
- Operation Mode: SSB/CW/RTTY/AM/FM/DV (D-STAR)
- Transmission frequency range: 1.8-1.999MHz, 3.5-3.999MHz, 5.255-5.405MHz, 7.0-7.3MHz, 10.1-10.15MHz, 14.0-14.35MHz, 18.068-18.168MHz, 21.0-21.45MHz, 24.89-24.99MHz, 28.0 -29.7MHz, 50.0-54.0MHz, 144.0-148.0MHz, and 430.0-450.0MHz
- Receiving frequency range: 30kHz~199.999MHz and 400.000MHz~470.000MHz
- RF power: 10W (external power supply 13.8V); 5W/0.5W (using lithium battery)
- Operating temperature range: -10℃ to 60℃
- Appearance size: approx. W200 x H80 x D85mm/7.9 x 3.1 x 3.3" (excluding the size of the protruding part)
- Antenna port: BNC-J type
- Antenna Impedance: 50Ω
- Power requirements: external 13.8V power supply, or use the included battery (7.4V)

Current Consumption (approximately):
When using an external DC power supply (13.8VDC):
- Receive: 0.3A (standby, typical)
- MAX Audio: 0.5A (typical)
- Transmit: 3.0A (10W power)

When using the battery pack (7.4VDC):
- Receive: 0.5A (standby, typical)
- MAX Audio: 0.8A (typical)
- Transmit: 2.5A (5W power)

Package Included:
- 1 x Set of Transceiver

Note:
- MicroSD memory card is not included.
