IC-M220 VHF Marine Radio Transceiver Waterproof Mobile Radio Fits Boats Ships Vehicles for ICOM
Features:
- Sealed design; intuitive operation; scanning function
- IPX7 waterproof design: compact and small. At the same time, the machine can withstand the test of 30 minutes underwater at a depth of 1m/3.3ft
- Front clear speakers: Users can hear audio clearly and prevent audio degradation even in noisy marine environments
- Built-in DSC with CH70 channel: Built-in DSC provides automatic distress and safety communications. The dedicated DSC duty receiver continuously monitors the DSC call channel (CH70) to ensure the safety of navigation
Functional Parameters:
1. General Specifications:
- Frequency range: TX: 156.025-157.425MHz; RX: 156.050-163.275MHz; CH70: 156.525MHz
- Channels used: USA, CAN, INT and WX channels
- Transmitter Type: 16K0G3E (FM); 16K0G2B (DSC)
- Voltage: 13.8V DC nominal (11.7-15.9V DC)
- Current (13.8V DC): TX 25W output: 5A; RX volume output: 1.2A
- Operating temperature: -20C to +60°C
- Antenna Impedance: 50Ω (SO-239)
- Dimensions (WxHxD): 156.5 x 66.5 x 110.1mm/6.2 x 2.6 x 4.3" (excluding protrusions)
- Weight: about 700G/1.5LB (including HM-237B)
- NEMAJ format: Input: RMC, GGA, GNS, GLL and VTG; Output: DSC, DSE, RMC, GSA and GSV
2. Transmitter:
- Output power (at 13.8V DC): 25W, 1W
- Frequency offset: ±5kHz
- Frequency Tolerance: ±5ppm
- Spurious emission: less than -60dBc
3. Receiver:
- Sensitivity: Main: -13dBμ typical (12dB SINAD); DSC: -5dBμ emf typical (1% BER)
- Noise suppression sensitivity: less than -10dBμ
- Adjacent channel selectivity: Main: greater than 68dB; DSC: greater than 68dBμ emf (1% BER)
- Intermodulation: Main: greater than 63dB; DSC: greater than 55dBμ emf (1% BER)
- Sensitivity: -14dBμ typical (at 12dB SINAD)
- Noise: greater than 40dB
- Audio output (10% distortion 4Ω load): 4.5W nominal

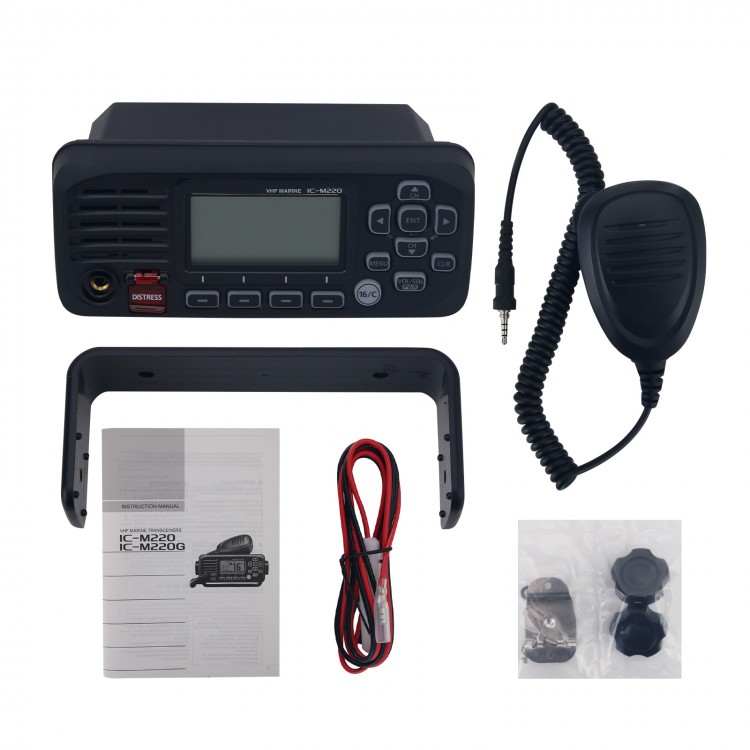

Package Included:
- 1 x Transceiver
- 1 x Microphone
Note:
- Antenna, feeder and transformer are not included.
