IC-U86 400-520Mhz 5.5W Walkie Talkie Handheld Transceiver Portable Marine UHF Radio for ICOM

IC-U86 400-520Mhz 5.5W Walkie Talkie Handheld Transceiver Portable Marine UHF Radio for ICOM

Features:
- IC-U86 UHF single band handheld radio of 5.5W high power
- UHF wideband handheld radio suitable for maritime service
- Up to 5.5W RF output power; four powers can be set
- Complies with IP54 and MIL-STD 810G protection standards
- 207 channels (200 memory channels, 1 call channel and 6 scan edges)
- 1500mW audio output; clear and loud sound, enabling high degree of reproduction
- Standard BP-298 high-performance battery with a capacity of 2100mAh and 19-hour endurance time
- Built-in CTCSS and DTCS encoder/decoder
- Priority, program, memory, skip and tone scanning
- Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob
- Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
- Integrated VOX function
- Suitable for harsh environment; working temperature -20℃ to 60℃
- With full digital rubber button design, comfortable and wear-resistant, easy to operate
- BNC type antenna connection port
- Safety buckle design to ensure the stability of the battery and the body

Specifications:
- Brand: For ICOM
- Model: IC-U86
- Operating Mode: FM
- Frequency range: TX 400-472MHz; RX 400-472MHz
- Output power: 5.5W/4.0W/2.0W/0.5W (High/Low/Medium/Low)
- Power Requirements: 7.5V DC
- Number of channels: 207 channels (200 memory channels, 1 call channel and 6 scan edges)
- Transmission Type: F2D, F3E (FM, FM-N)
- Antenna Impedance: 50Ω
- Operating temperature range: -20℃ to +60℃
- Frequency Stability: ±2.5ppm (-20℃ to +60℃)
- Current Consumption (Typical): TX (EX High/High/Medium/Low): 1.6/1.5/1.0/0.5; RX (maximum audio): 450mA (built-in speaker) and 200mA (external speaker)
- Dimensions: W112 x H58.6 x D30.5mm (including BP-298 and excluding the dimensions of the protruding part)
- Weight: about 290g (including BP-298 and FA-B57U)

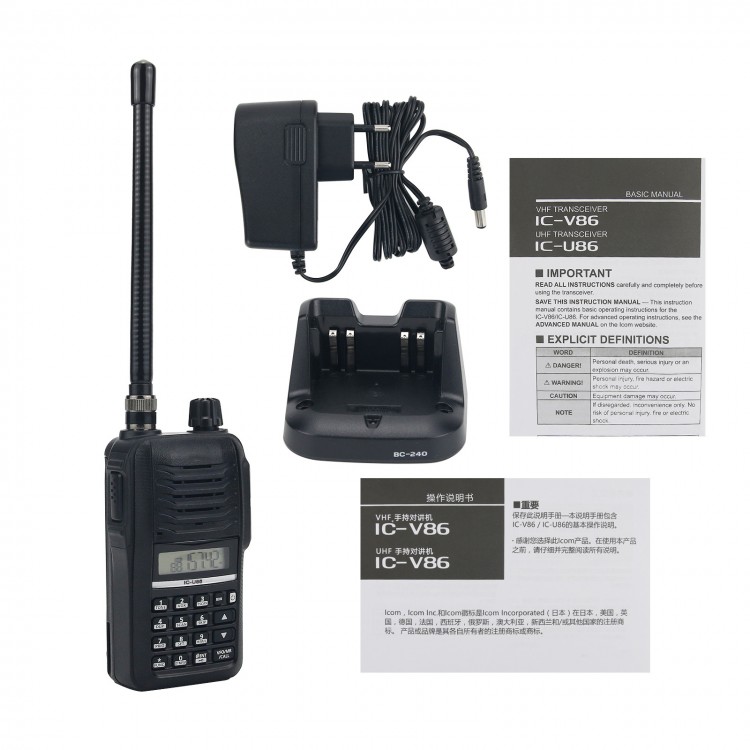

Package Included:
- 1 x Walkie Talkie Body
- 1 x Battery
- 1 x Belt Clip
- 1 x Antenna
- 1 x Power Adapter
- 1 x Charger Dock
- 1 x Chinese User Manual
- 1 x English Manual
