IC-V88 VHF 136-174Mhz 5W Walkie Talkie Waterproof Handheld Transceiver 128CH 800MW Audio Output for ICOM
Features:
- High Power Handling Capacity Speaker (36mm) for 800mW Powerful Audio
- IP67 Waterproof and Dust-tight Protection
- 5W (VHF) of Output Power
- Up to 10.5 Hours of Operating Time with the Supplied Waterproof Battery
- 128 Memory Channels and Eight Zones
- Eight Character Alphanumeric Display
- Built-in CTCSS and DTCS Encoder/Decoder
- Eight DTMF Autodial Memories
- MDC 1200 PTT ID and BIIS 1200 PTT ID
- Inversion Voice Scrambler (16 code) for Private Conversations
- Channel Announcement of the Operating Channel Number
- Seven Programmable Buttons with Shift Key Function
- 16 Scan Lists and Priority Scan Functions
- Applicable U.S. Military Specifications
Specifications:
General:
- Model: IC-V88
- Frequency coverage: 136MHz–174MHz
- Type of emission: 16K0F3E, 11K0F3E (25/12.5kHz)
- Number of channels: 128 channels
- Antenna impedance: 50Ω
- Power supply requirement: 7.5V DC
- Operating temperature range: -30°C to +60°C (Radio only)
- Frequency stability: ±2.5ppm
- Current drain (approx.): 1.5A for Tx High; 500mA (Internal SP) /77mA for Rx Max. audio/Stand-by
- Dimensions (WxHxD) (Projections not included): 52.2x111.8x22.3mm (with battery)
- Weight: 230g (with battery)
Transmitter:
- Output power (at 7.5V): 5/2.0/1.0W (Hi/L2/L1)
- Max. frequency deviation: ±5.0kHz/±2.5kHz (Wide/Narrow)
- Spurious emissions: 70dB min.
- Ext. microphone connector: 3-conductor 2.5(d)mm (1/10")/2.2kΩ
Receiver:
- Sensitivity: 0.25μV typical (at 12dB SINAD)
- Squelch sensitivity: 0.25μV typical (at threshold)
- Adjacent channel selectivity: 76dB/53dB typical (Wide/Narrow)
- Intermodulation: 74dB typical
- Spurious response: 70dB min.
- External speaker connector: 3-conductor 3.5(d)mm (1/8")/8Ω

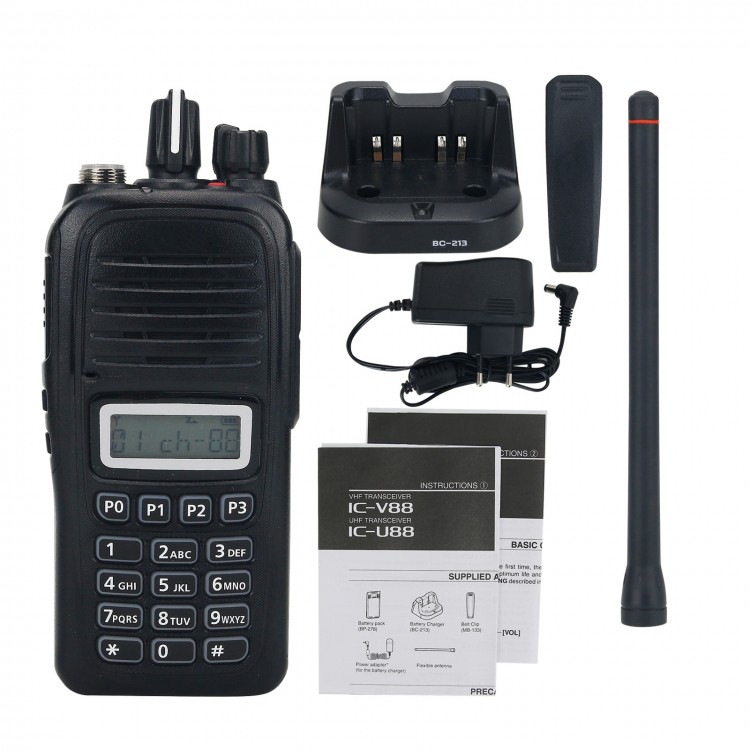

Package Included:
- 1 x Walkie talkie body
- 1 x Power adapter
- 1 x Charger dock
- 1 x Antenna
- 1 x Battery
- 1 x Belt clip
