ICEpower Amplifier 200ASC 200W Single-channel Digital Amplifier Module with +12V auxiliary DC output
Description:
- The ICEpower200ASC is an integrated power solution which completely eliminates the need for heat sinks and EMI shields. The ICEpower200ASC also provides an auxiliary +/-12V supply for external signal conditioning circuitry and the DC-bus output for powering additional ICEpower200AC amplifiers makes designing compact multi-way or multi-channel solutions easy.
Features:
- Rugged construction
- Suitable for CE and FCC approved designs
- +12V auxiliary DC output
- Universal mains 85- 264VAc
- Thermal protection
- Over current protection
- DC output protection
- Sound optimized soft clipping
- EMI conforms to: EN55013 and others.
- Safety conforms to: UL60065, 62368 and others
Specification:
- 200W at 0.2% THD+N (10Hz - 20kHz, 4Ω)
- 110dBA dynamic range at 200W, 40
- Max output voltage / current: 43VP/ 12.5AP, 4Ω
- THD+N = 0.006% (1W, 8Ω, 1kHz)
- THD+N < 0.2% (0.1W - 200W, 4Ω)
- 79 % total efficiency at 200W, 4Ω
- CCIF Intermodulation distortion = 0.0005% (10W, 4Ω, 14kHz/15kHz)
- Damping factor = 4000 (100Hz, 8Ω)
- Stand-by power consumption 0.25W at 230VAC
Package Included:

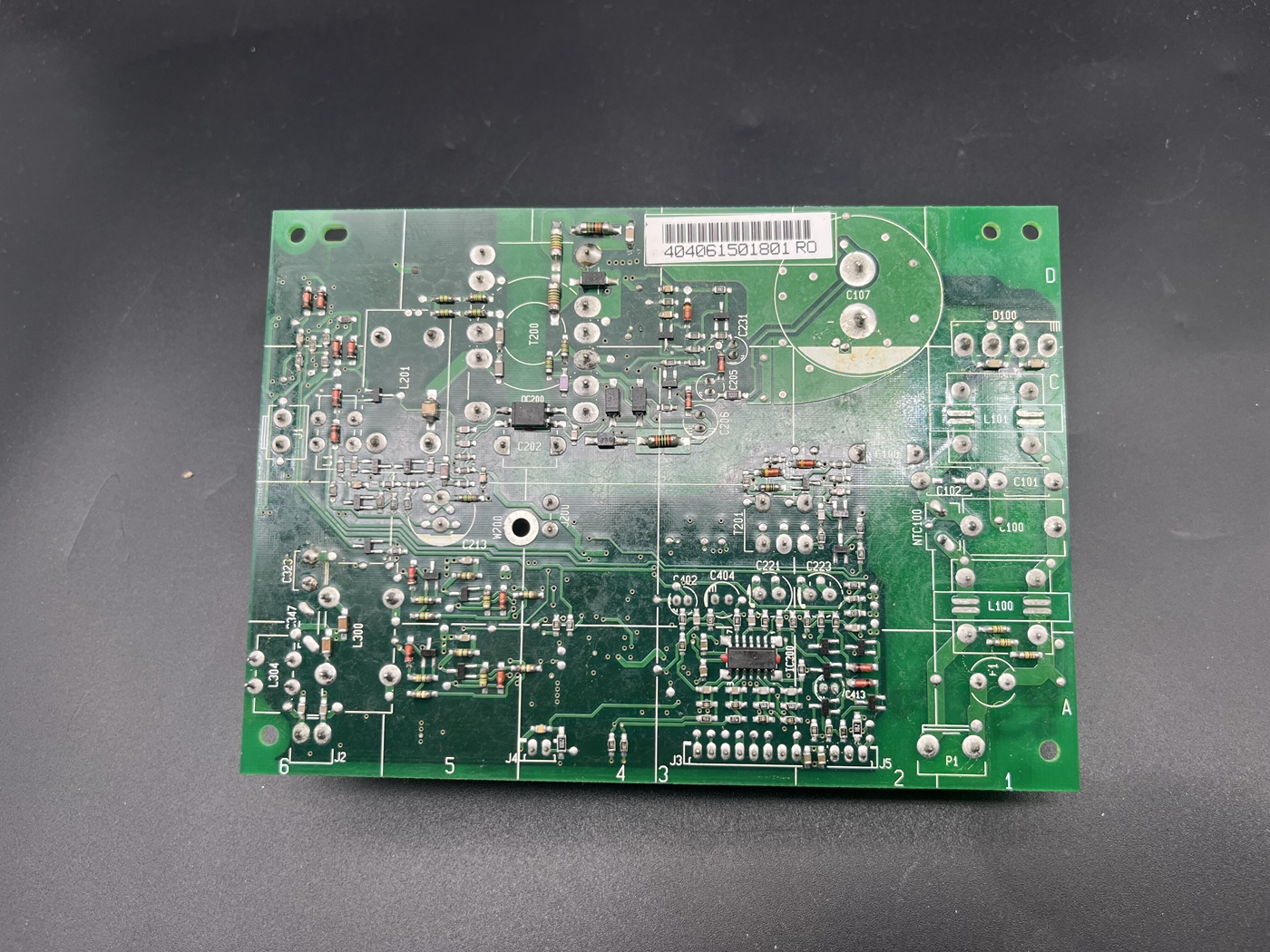

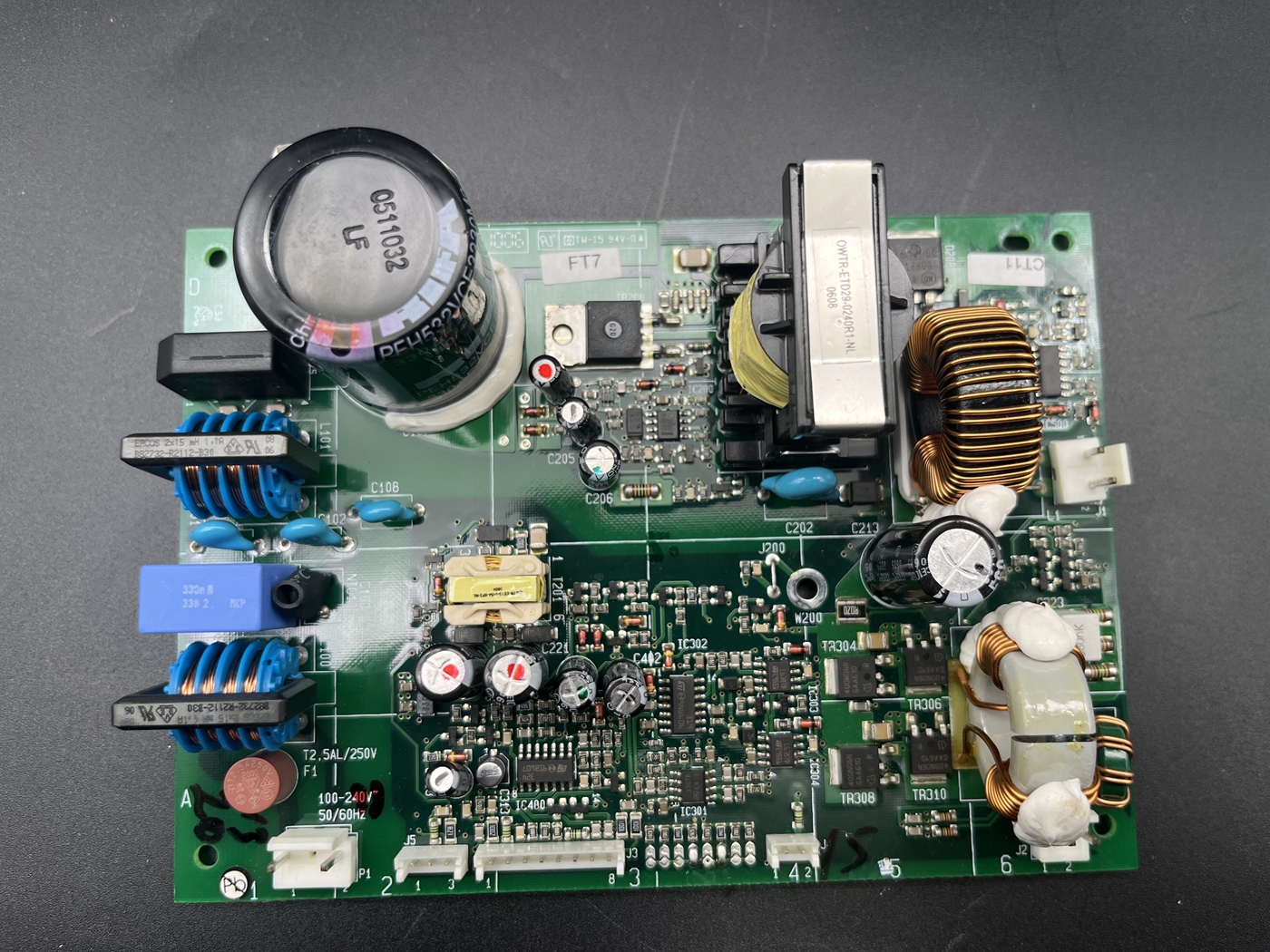

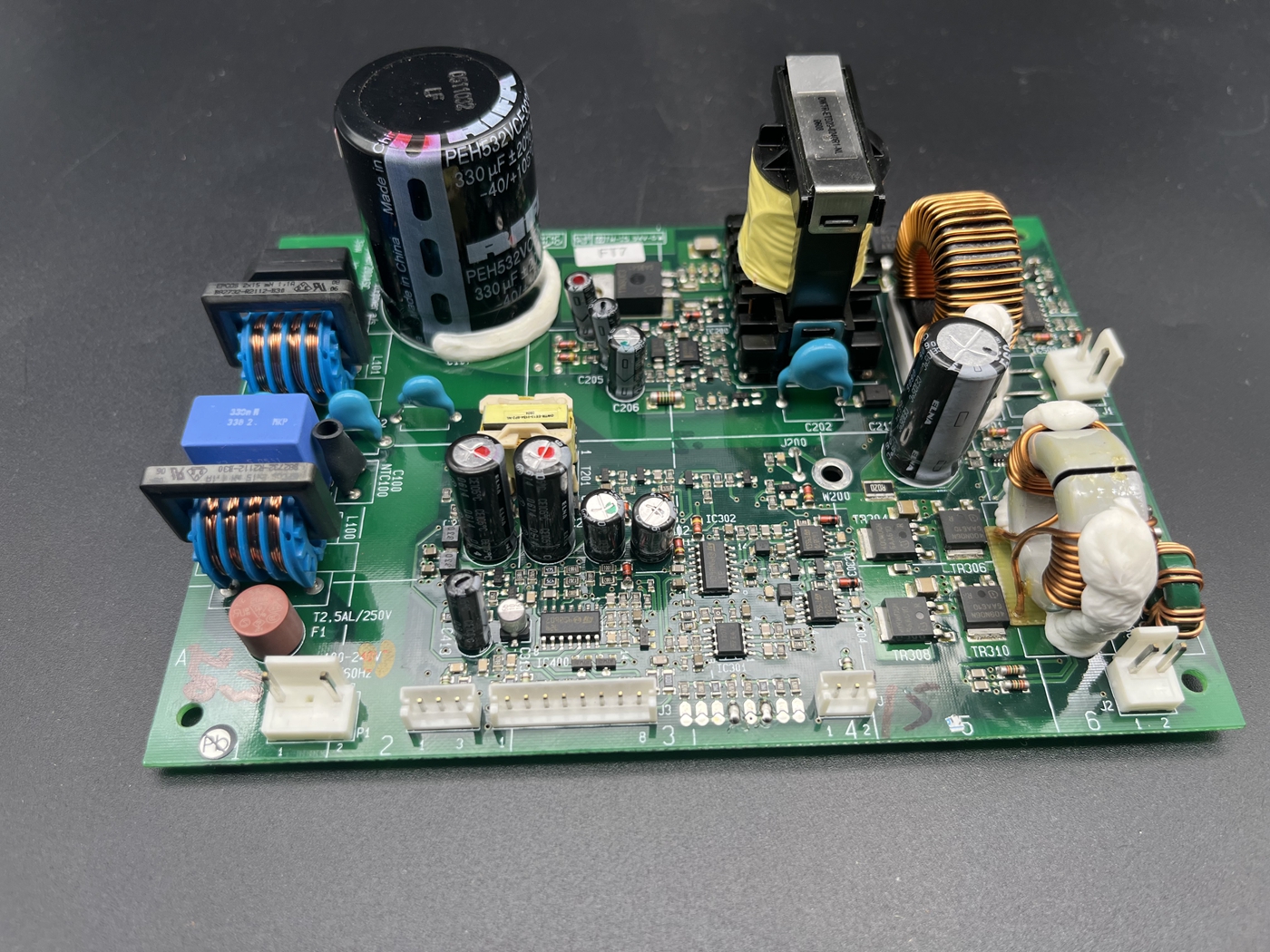

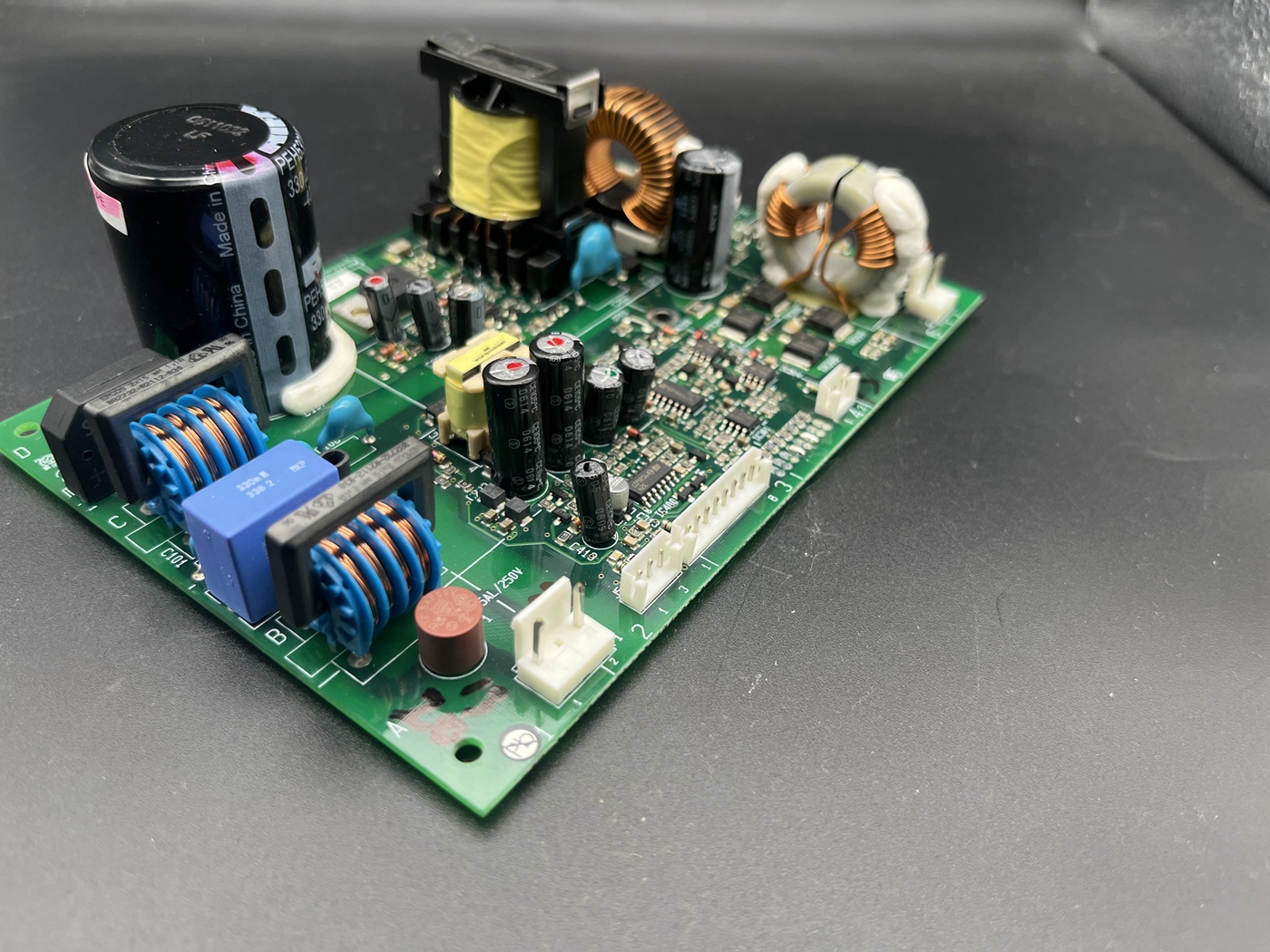

- 1 x ICEpower200ASC Board
