ICEPOWER Power Amplifier Board ICE125ASX2 Dual Channel Digital Audio Amp Module

ICEPOWER Power Amplifier Board ICE125ASX2 Dual Channel Digital Audio Amp Module

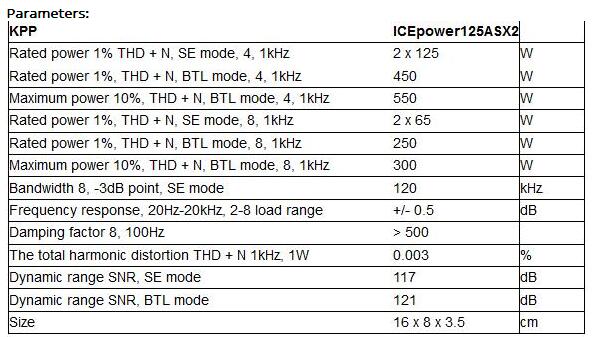

Specification:
- Output power: 120WX2 (1% THD + N, -20Hz-20kHz, 4 ohms SE);450W (1% THD + N, 20Hz-20kHz, 4 ohms BTL) (in order to run BTL mode it requires additional BTL board)
- Dynamic :117dBA;THD + N 0.002% (1W, 8 ohms, 1kHz, Se mode)
- Bandwidth: 1.5Hz-90kHz
- Intermodulation distortion: 0.0009%
- Transient intermodulation distortion: 0.007%
- Damping coefficient: >500
- Maximum output current is up to 30a, allow 100ms to 500ms
- Over temperature protection, over current protection
- Continuous output power: 65W (ambient temperature: 25deg C)
- Maximum power output time: 80s (400W output)

- Rated power output: L, R:115W@4Ohm
- Frequency response: L, R:20Hz~20KHz (+ 1dB)
- Input sensitivity: 40mV
- Rated load impedance: 4~8 Ohm.
- Overload source electromotive force:>=2V
- Harmonic distortion + noise (nominal working conditions and a decrease in the output 26dB, 20Hz~20KHz) L, R< = -40dB
- Mute signal-to-noise ratio (A weight): L, R = 90dB
- Degree of separation (normal working conditions, L, R): 45dB
- Rate Voltage: 110-220V. Manually switch voltage
- Frequency: 50Hz
- In the normal working conditions of power: less than 300W
- Working conditions - rated power: less than 320W
- Size: 280X330X90 (mm)
- wWeight: 3.4Kg
- Outer dimensions: (w) 162*(h) 62 *(d) 261 MM

Note: This amp is without volume adjustment. No shell.

Package included:
- 1 x HIFI Amplifier
