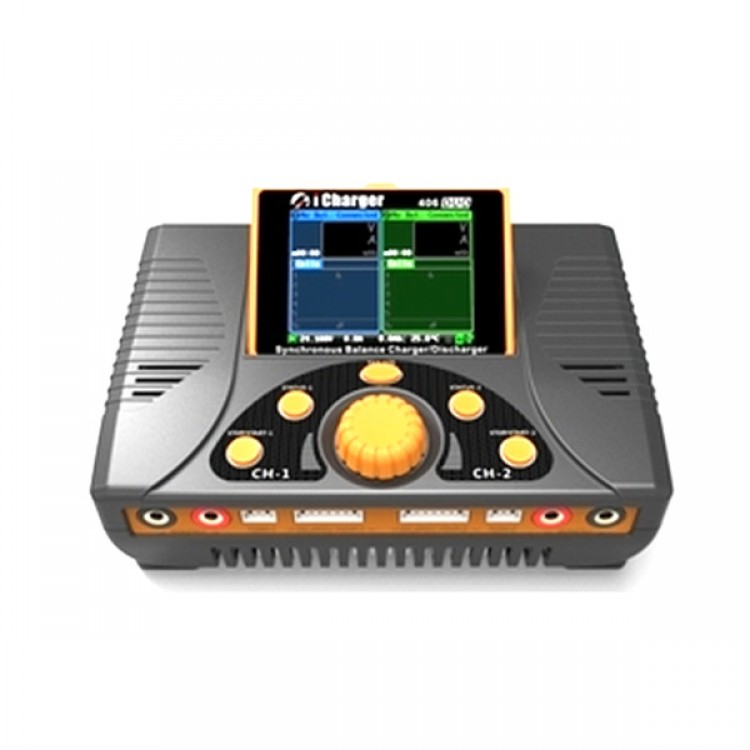

iCharger 406 Duo 1400W 40A 6S Dual Port Charger

iCharger 406 Duo 1400W 40A 6S Dual Port Charger

Description:
- This dual port charger with a color LCD screen allows charging different batteries up to 40A, or up to 70A in synchronous mode.
- iCharger 406 Duo is a little brother of the popular and extremely powerful iCharger 4010 Duo. Instead of charging 10S batteries up to 40A, - - iCharger 406 Duo can handle up to 6 cell LiPo packs up to 40A. These two chargers share the same operation interface and extra functions, such as battery internal resistance measurement, servo test, and pulse test. The charge and discharge data can be stored in a micro SD card that can be read with Logview on a PC. Eventhough with a high output power ability of 1300W, 30A, and dual ports, iCharger 308B retains f iCharger's reputation in making compact and powerful charge stations.

Why select iCharger
- Best power to cost ratio.
- Powerful chargers in compact sizes.
- Accurate cut off voltage.
- Fast balance speed.
- Works with almost all types of batteries used in RC hobbies.
- Versatile functions and extra features available.
- Easy to operate than competitors' products.
- Excellent techincal support.
- Very popular among hardcore RC hobbyists.

Specifications:
- Input voltage range: 10.0—30.0VDC
- Maximum input current limit: <60A, CH1/2<47A
- Maximum charge/discharge current: 70A@Syn. Mode 40A@Asyn. Mode
- Maximum charge power capacity: 1400W (Channel 1000W @input > 23.5V)
- Maximum discharge power capacity: 140W (Channel 80W)
- Maximum regenerative discharge power capacity: 1400W (Channel 1000W)
- Maximum extra discharge power capacity: 2000W (Channel 1000W @25V/40A)
- Maximum current drain for balancing: 2.4A@Syn. Mode 1.2A@Asyn. Mode
- USB charging port: 5V/1A（current-limiting protection 1.2A）
- PC Connectivity: USB port
- Dimensions: 171x118x59 mm
- Net Weight: 910g

Extra functions:
- Battery internal resistance measurements
- Servo test
- Pulse test
- Store and read data from micro SD (TF) card
