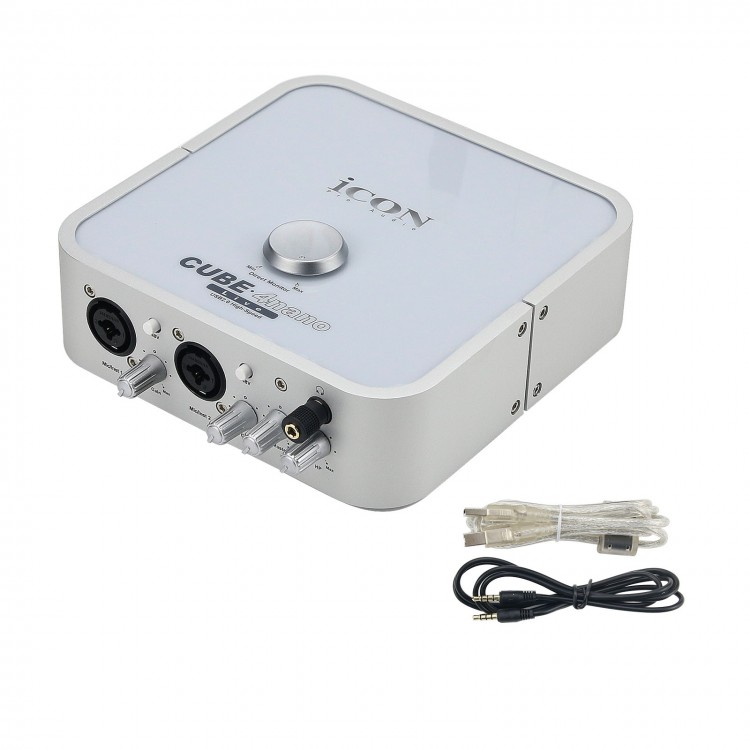

Icon Cube 4Nano 4 in 4 out Computer External Sound Card USB Recording Audio Interface Dual MIC Full Duplex

Icon Cube 4Nano 4 in 4 out Computer External Sound Card USB Recording Audio Interface Dual MIC Full Duplex

Description:
Loading racks for computer performance requirements, below the configuration requirements, may cause intermittent sound effects, noise, sonic boom or card machine phenomenon. Recommended System Performance Requirements: Intel dual-core CPU; memory: 2G or more.

Simple "sound flat rack Cantabile Performer", the effect is seamless handover. K song is very good, a very high degree of integration as a whole recorded a work, is close to CD quality, and supports a key switch dodge function without complicated settings, is a favorite of web hosting friends. The overall design of compact chassis structure is flexible, taking up very little computer resources, even if some of the lower computer performance can be fluent, it is recommended to use the sound of the faithful "sound flat rack Cantabile Performer, definitely give you a surprise.
Tone flat rack Cantabile Performer Download:zx.ingping.com/c_4/1621

Features:
- 24bit 96/192khz 4xx USB video card
- 2x2 analog linear input and output; support full duplex recording and playback
- Dual function,Pre amplifier input supports mic, instrument input, with gain knob
- LED, Phantom power and gain
- 2*Analog input output of TRS interface
- 1*1 S/PDIF input and output of RCA coaxical interface
- 1*1-16 channel MIDI  I/O
- Total volume control in front of the front panel
- 1*Volume knob for earphone output
- - Sampling rate: 44.1-192 khz
- USB2.0 transmitting speed and USB supply power
- Support Direct sound, WDM and ASIO2.0
- Support system: Window XP,  Vista (32bit), and Mac OS X
- Aluminum structure

Product Specifications:
- Microphone 1/2 input (at minimum gain):
- Frequency response: 22Hzto 22kHz (+/- 0.1dB)
- Dynamic range: 100dB, A- weighted
- SNR: -100dB, A- weighted
- Total harmonic distortion plus noise: <0.0061 (-90dB)
- Crosstalk: -87dB 1kHz.
- Input Impedance: Mic in: 1.8K, typical
- Adjustable Gain Range: + 34dB
- Total gain range: + 50dBSignal

Output 1/2 (unbalanced)
- Frequency response: 22Hzto 22kHz (+/- 0.1dB)
- Dynamic range: 102dB, A- weighted
- SNR: -102dB, A- weighted
- Total harmonic distortion plus noise: <0.003% (- 90 dB)
- Crosstalk: -87dB 1kHz.
- Rated Output Level: Unbalanced + 4dBV, typical
- The maximum output level: + 11dBV, typical
- Output Impedance: 150
- Load Impedance: 600 minimum

Inst 1/2 input (at minimum gain):
- Frequency response: 22Hzto 22kHz (+/- 0.1dB)
- Dynamic range: 100dB, A- weighted
- SNR: -100dB, A- weighted
- Total harmonic distortion plus noise: <0.0061 (-90dB)
- Crosstalk: -87dB 1kHz
- Input impedance: Inst in: 500K Ohms, typical
- Adjustable Gain Range: + 39dB
- Total gain range: + 39dB

Headphone output 1 & 2 (at maximum volume load 100) :
- Frequency response: 22Hz to 22kHz (+/- 1dB)
- Power: 90mW / 100
- Total harmonic distortion plus noise: <0.06% (-66dB)
- SNR: -90dB, A- weighted
- Maximum output level /100:+2.0dBV, typical
- Output Impedance: 75Ohm
- Load Impedance: 32 to 600
- Weight: 1.08kg (2.38lbs)
- Size: 165 x 185 x 58 mm

Package included:
- 1 x External Sound Card
- 1 x Cable
- 1 x Manual
