| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $112.97 | $110.67 | $107.21 | $102.60 | Contact US |

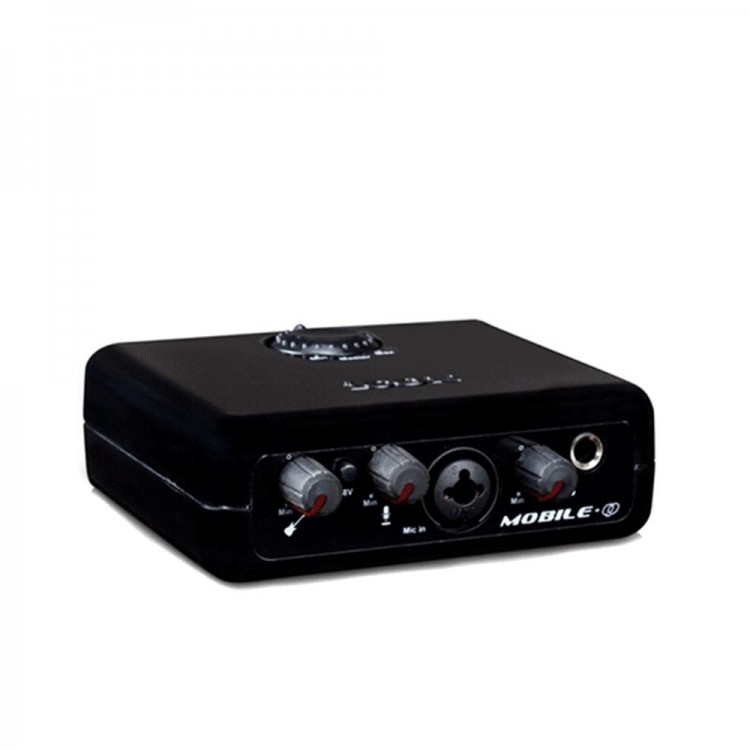

ICON Mobile Q External Sound Card for Karaoke Audio Recording Guitar Music Production
Description:
- Support : Mac OS X, Vista / Win XP / Win7 / Win8 the 32bit and 64bit, Samplitude 11 silver gift genuine software
- 24bit / 192kHz high resolution ( up to 192kHz sampling rate )
- 2 into 2 USB audio interface ( one mic input, 1 channel high-impedance guitar input, 2- output line of the road and at the same time a small three core 3.5mm stereo output )
- USB2.0 high-speed data transmission and USB direct power supply
- Built-in real-time monitoring of virtual channel wet signal ( such as voice + effect ) , full duplex recording and playback while recording
- One -way ( sophomore core / TRS / XLR ) composite inputs with separate gain control knob and 48V phantom power for condenser / dynamic microphone a way sophomore core inputs with separate gain control knob and 48V phantom power supply , suitable instruments ( eg guitar ) / preamp
- A channel 6.35mm TRS stereo headphone amplifier output , independent gain control knob overhead a total volume control knob 2 6.35mm ( TRS / sophomore core ) analog line outputs
- A 3.5mm stereo mini three core output interface supports DirectSound, WDM and ASIO2.0, ultra-low latency
Specifications:
- Instrument Input Frequency Range : 22Hz to 22kHz (+/- 0.1dB)
- Dynamic Range : 93dB, A-weighted
- SNR : -93dB, A-weighted
- Total harmonic distortion plus noise : <0.0061% (-90dB)
- Crosstalk : -87dB 1kHz
- Input impedance ( guitar input ): 500K Ohms, typical
- Adjustable gain : + 31dB
- Microphone Input Frequency Range : 22Hz to 22kHz (+/- 0.1dB)
- Dynamic Range : 93dB, A-weighted
- SNR : -93dB, A-weighted
- Total harmonic distortion plus noise : <0.0061% (-90dB)
- Crosstalk : -87dB 1kHz
- Input impedance ( microphone input ): 1.8K Ohms, ypical
- Adjustable gain : + 34dB
- Headphone output ( at maximum volume , continued to 100 Ohm load )
- Frequency range : 22Hz to 22kHz (+/- 1dB)
- Ohm power : 90 mW into 100 Ohms
- Total harmonic distortion plus noise : <0.06% (-66dB)
- SNR : -90dB, A-weighted
- The maximum output level at 100 Ohms: + 2.0dBV, typical
- Output Impedance : 75 Ohms
- Load Impedance : 32600 Ohms
- Linear output 1/2 ( stereo , unbalanced ) or 3.5mm mini three core output ( stereo, balanced )
- Frequency range : 22Hz to 22kHz (+/- 0.1dB)
- Dynamic range : 100dB, A-weighted
- SNR : -100dB, A-weighted
- Total harmonic distortion plus noise : <0.003% (-90 dB)
- Crosstalk : -100dB 1kHz
- Output Level : Unbalanced + 4dBV, typical
- Maximum output level : + 11dBV, typical
- Output Impedance : 150 Ohms
- Load Impedance : 600 Ohm minimum
Package list:
- 1 x Sound Card
