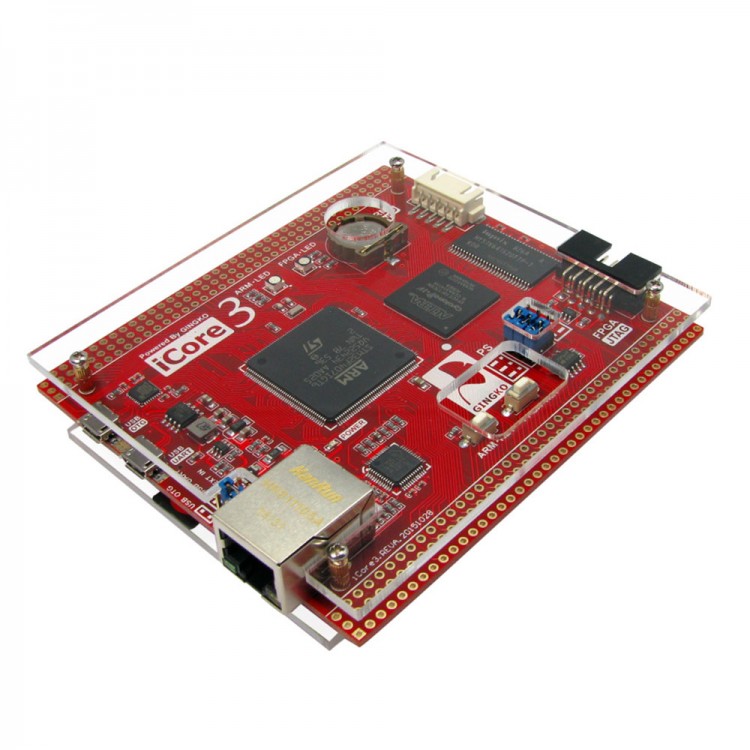

iCore3 ARM FPGA Dual Core Board Ethernet High Speed USB STM32F407 Controller

iCore3 ARM FPGA Dual Core Board Ethernet High Speed USB STM32F407 Controller

Description:
- ARM+FPGA structure, the two are connected by FSMC bus;
- Red heavy gold four laminates, size 10.16 X 9 cm;
- ARM upgrade as 176 pin M4 chip (STM32F407IGT6) performance is great, more pins ;
- FPGA using the fourth generation  Cyclone EP4CE10F17C8N, 256 pin BGA package,
- ARM extended pin up to 68; the standard 2.54 pin out, easy to do experiments;
- FPGA extended pin up to 105; the standard 2.54 pin out, easy to do experiments;
- Built-in high speed USB OTG interface, as the Device communication speed approaching 40M bytes / sec; and can read U disk through the cable;
- Built in 100M Ethernet circuit;
- Built-in USB to UART interface;
- Through the pin to supply power (5V power), can be directly through the USB interface;
- FPGA supports PS configuration mode, through the arm for FPGA ;
- Built-in dual active crystal;
- Built in two keys, connected to the ARM and FPGA;
- Built in two  LEDs used as an indication; for the ARM and FPGA;
- Built-in SDIO interface TF card socket ;
- Built in high-end current detection circuit and voltage monitoring circuit, real-time monitoring of the core board current, a power supply module voltage, more practical;

Package list:
- 1 x iCore3 board
- 2 x Micro USB cable
- 1 x 1G TF card
- 1 x Adapter
- 2 x 3*40p 2.54 spacing pin
- 1 x Button battery
- 10 x Dupont cable
- Acrylic, copper column and screws
