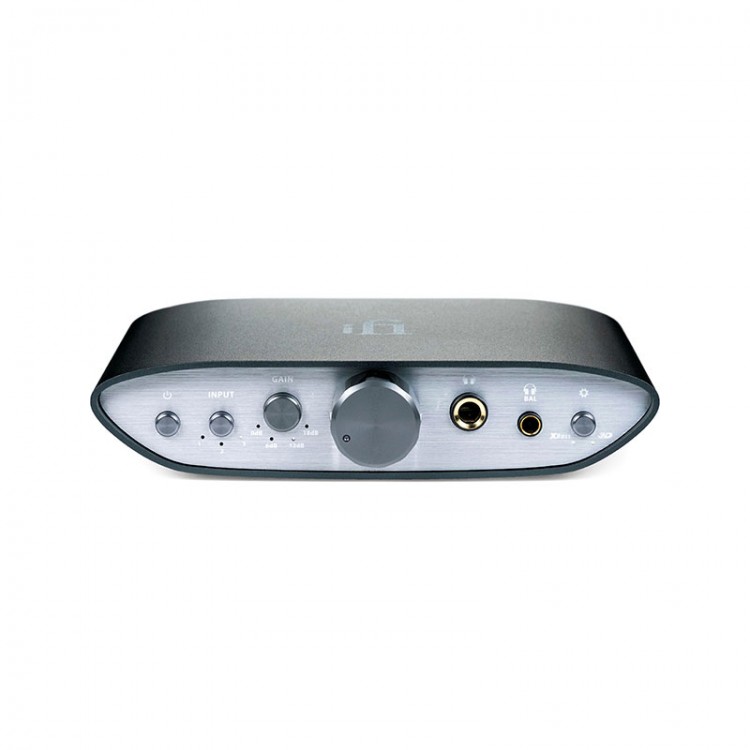

iFi Zen CAN Fully Balanced Class A Headphone Amplifier 1600mW 3D Stereo Amplifier 4.4mm+6.3mm Output

iFi Zen CAN Fully Balanced Class A Headphone Amplifier 1600mW 3D Stereo Amplifier 4.4mm+6.3mm Output

Features:
- It has balanced output >1890mW, 11.0V output, single ended output >1600mW, 7.2V output; It can easily drive high impedance tablet earphones.

- ZEN CAN supports for Pentacon 4.4mm balanced and single ended 6.3mm headphone outputs, compatible with both balanced and single ended headphones, while fully unleashing the potential of balanced headphones.

- ZEN CAN uses a simulated 3D matrix system to recreate a holographic sound field, restoring the music to its correct position outside the head and creating a live concert atmosphere.

- A complex 'bass enhancement' technique that expands bass response to accommodate different headphones.

- Four level gain +6dB, very suitable for headphone matching, can be freely adjusted according to preferences.

- Featuring balanced 4.4mm headphone and single ended 6.3mm headphone outputs, connected to a balanced amplifier/active speaker and balanced 4.4mm line output for use as a preamplifier, single ended 3.5mm input, RCA input, balanced 4.4mm input.

- Using the same discrete pure A-class output buffer and for J-FET operational amplifier (OV2637A) as ProiCAN, the FET input avoids load volume control - low distortion/noise, the SE input (1MOhm) ensures the source load, and the amplifier maintains pure A-class operation to achieve low distortion.

- The dedicated input circuit stage pairs the signal source and adjusts the level to match the headphone output. The Pro series voltage conversion circuit separates large inductors, capacitor filters, and "isolated" power devices. The 4000uF power capacitor of the audio to power circuit can act as a huge "energy storage".

- Using high-quality HiFi components for TI, Panasonicm TDK, etc.

Specification:
- Input voltage: DC 5V/2.5A, AC100 - 240V, 50/60Hz
- Maximum output:
  Balanced: > 15.1V/385mW at 600ohms, > 11.0V/1890mW at 64ohms, > 6.2V/1200mW at 32ohms
  Single-ended: > 7.6V/98mW at 600ohms, > 7.4V/870mW at 64ohms, > 7.2V/1600mW at 32ohms
- THD+N:
  Balanced: < 0.006% at 360m/2.4V 16ohms
  Single-ended: < 0.005% at 100mW/1.27V 16ohms
- SNR:
  Balanced: > 120dBA at 15.2V
  Single-ended: > 118dBA at 7.6V
- Maximum input: 7.4V RMS for balanced; 3.8V RMS for RCA; 1.92V RMS for 3.5mm
- Gain: 0dB, 6dB, 12dB and 18dB
- Frequency response: 10Hz - 200kHz
- Power consumption: 5W for no signal; 13W for maximum signal
- Product size: 158 x 117 x 35mm
- Net weight: 515g

Package Included:
- 1 x ZEN CAN
- 1 x Power Adapter
- 1 x RCA Cable
- 1 x 6.35 to 3.5mm Adapter
- 1 x User Manual
