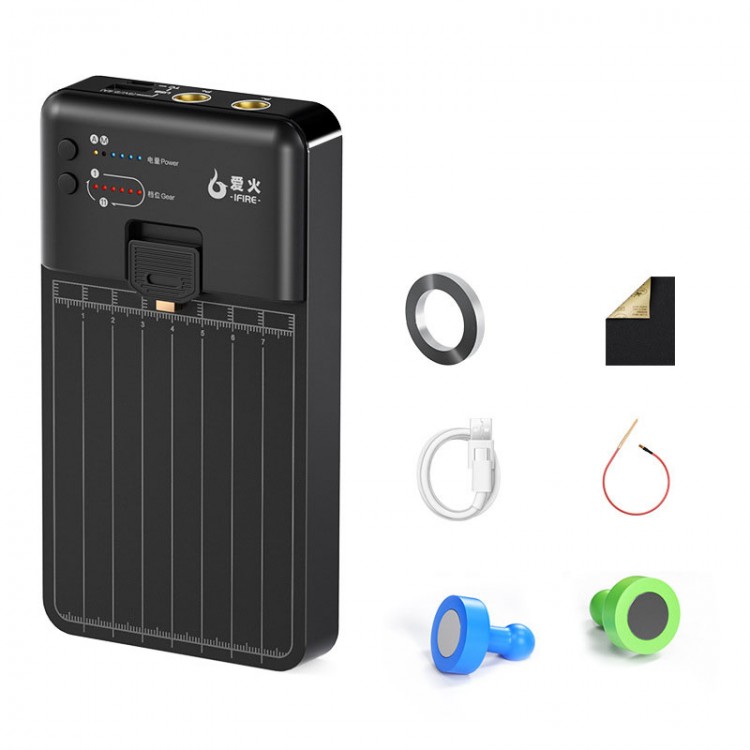

IFIRE MC1-4000mAh Portable Spot Welder Spot Welding Machine with 11 Gears for Phone Battery Cells

IFIRE MC1-4000mAh Portable Spot Welder Spot Welding Machine with 11 Gears for Phone Battery Cells

Features:
Ideal for Battery Cell Transplants
* The integrated design makes operation more convenient.

Metal Suspension Rail – Long Lifespan, No Stuttering
* Abandoning the traditional plastic sliding structure, we adopt an innovative metal suspension rail system. It supports seamless, lag-free operation and extends the lifespan by 10 times.
* Over 20,000 uses
* Smoothness is improved by 5 times, and durability is increased by 10 times.
* The above data is based on tests conducted by the IFIRE Laboratory, compared with traditional plastic sliding structures. For reference only; actual performance may vary.

Grade A Battery Cells for Safer Use
* We refuse to use low-quality Grade B battery cells that consume power excessively and pose safety risks. We only use premium and more expensive Grade A cells because they are safe, durable, and hold their charge reliably.

Integrated Heat Dissipation & Fast Cooling for Stronger Battery Mounting
* Replacing the previous design that separated copper components and circuits, we now adopt an integrated heat dissipation and fast cooling technology. It changes the direction of current and enhances the cooling method, ensuring a more secure battery mounting that won't loosen or fall off.

4000mAh Battery Capacity
* Equipped with USB output, the spot welder can also function as a power bank.

Fully Upgraded, Broad Compatibility
* Say goodbye to outdated mechanical clamps. This device uses damage-free strong magnetic fixation, allowing compatibility with battery cells of various sizes. It supports battery cell transfers for multiple brands and models. It is for Apple, Huawei, and more—ushering in a new era of boundary-free battery transplantation.

Multiple Safety Protections
* Built with high-quality cells and features including independent cell separation, impact protection, voltage regulation, short-circuit protection, low-temperature protection, high-temperature protection, overcharge protection, and over-discharge protection.

Powerful 11-Level Output & Easy 0.3mm Spot Welding
* It supports 11 adjustable power levels and manual spot welding. This allows for greater control and more professional welds.
* Operation is simple, welds are firm, spots are clean, and the process is smooth and continuous.

Wide Application
* Capable of welding various mobile phone battery cells. Suitable for Apple, Huawei, Xiaomi, OPPO, VIVO, Samsung, and more.

Supports Multiple Materials
* It can be used for spot welding nickel-plated strips, pure nickel strips, steel strips, and iron strips. It delivers strong performance with secure welds and high-quality welding spots.

Three-Color Indicator Lights
* The spot welder includes indicators for power level, battery status, and operating mode. The three-color light system makes it easier to understand the current status at a glance.

Compact as a Smartphone – More Portable
* Product Dimensions: approx. 165mm x 90mm x 30mm – about the size of a smartphone. Lightweight and portable design makes it ideal for mobile repair and on-the-go tasks. It weighs about 0.33kg.

Copper Welding Pen for Professional Spot Welding
* It uses a gold-plated pen tip, a copper pen body and an alumina copper soldering pin. The alumina copper soldering pin has ultra-low resistance. The soldering pen is resistant to oxidation, comfortable to hold and easy to use. The total length of the soldering pen is about 40cm.

Specifications:
* Brand: iFire
* Model: MC1
* Product Name: Spot Welder for Battery Cell Transplant
* Battery Type: Lithium Polymer Battery
* Adjustable Levels: 11 Levels
* Battery Capacity: 4000mAh
* Product Dimensions: Approx. 165mm × 90mm × 30mm
* USB Output: 5V/2.4A (MAX)
* Charging Port: Type-C
* Charging Parameters: 5V/2.1A (MAX)
* Output Voltage: 4.2V (MAX)
* Output Current: 650A (MAX)

Packing List:
* 1 x Set of Spot Welder

Packaging Details:
* Weight: 1.1kg

Note:
* Thumbtacks are not included.
