iFlight BLITZ 4.9G 2.5W High Power FPV VTX Module with Built-in Microphone MMCX Interface for FPV Racing Drones
Precaution:
- When installing the VTX module, space should be left to ensure convection of surrounding air and ensure module heat dissipation. Otherwise, the module overheating protection will be activated, reducing power transmission and even shutting down power transmission.
- It is recommended to ensure the correct voltage range and positive and negative poles before connecting the power supply to avoid burning out the components.
- It is recommended to ensure that the RF output terminal has an antenna installed before connecting to the power supply, which can extend the service life of the module.
- Please read the manual carefully before use, make sure to connect the wires correctly, and extend the service life of the module.
Features:
- Built-in microphone
- 4 Power levels up to 2500mW
- The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.
- The separate power and frequency buttons are designed for easy switching between VTX power and frequency.
Tips:
- VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specification:
- VTX power: PIT/25mW/400mW/1000mW/2500mW
- Installation hole: 25.5 x 25.5/1.6mm (diameter)
- External frame size: 50 x 30 x 16mm
- Antenna interface: MMCX
- Net weight: 32
- VTX protocol: for IRC Tramp
LED Indicator:
Frequency band and channel buttons:
- Short press blue (CH): The LED light remains on, indicating channels CH1 to CH8. Short press to switch channels.
Power button:
- Press and hold for 2 seconds to enter or exit PIT mode. A green LED that remains on indicates entering PIT mode.
- Short press green (output power):
- The flashing LED light indicates the output rate of image transmission. Short press to change the output power. Flashing once=25mW, flashing twice=400mW, flashing three times=1000mW, flashing four times=2500mW

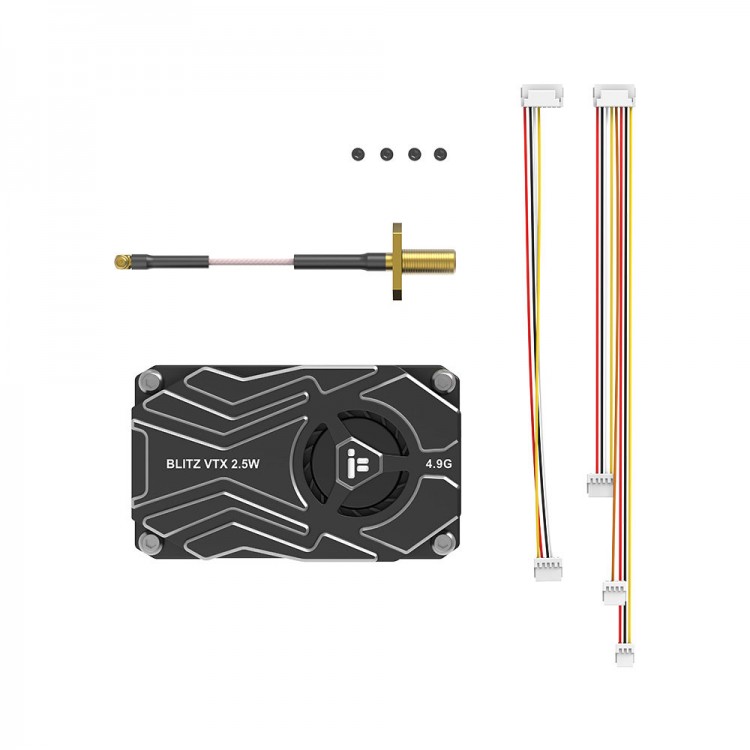

Package Included:
- 1 x VTX Module
- 1 x Antenna
- 2 x Flat Cable
