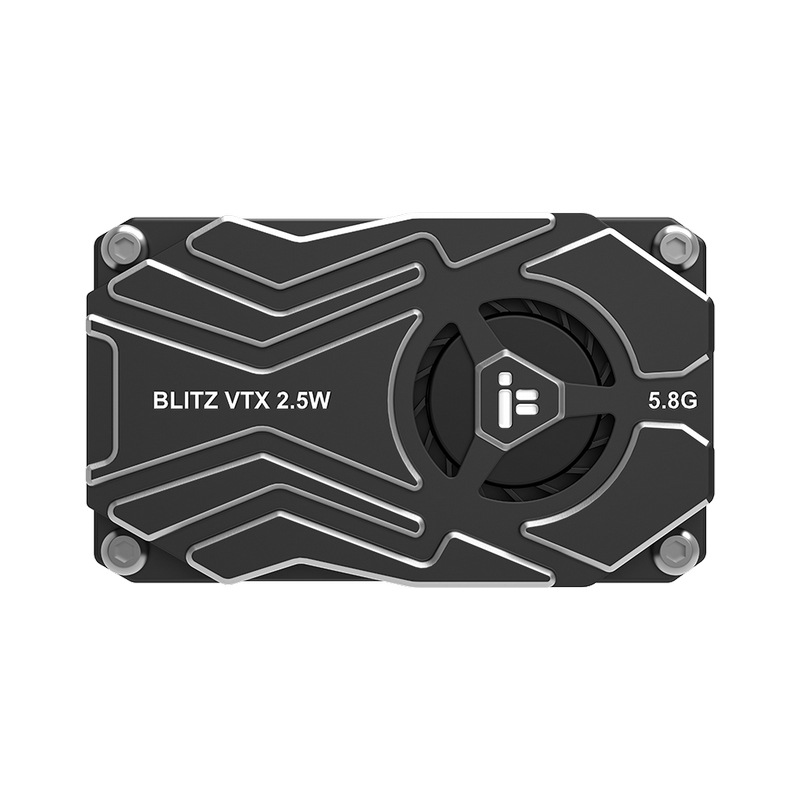

iFlight BLITZ 5.8G 2.5W High Power FPV VTX Built-in Microphone with MMCX Interface for Long Range Transmission

iFlight BLITZ 5.8G 2.5W High Power FPV VTX Built-in Microphone with MMCX Interface for Long Range Transmission

Features:
- Built-in microphone
- 4 Power levels up to 2500mW
- 40 Channels (including Raceband)
- Fast frequency lock, no startup interference with other pilots
- Built-in output power self-check functionality
- The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.

Specification:
- Input voltage: 7V ~ 34V
- Interface: MMCX
- Power levels: PIT/25mW/400mW/1000mW/2500mW
- Channels: 40 (including Raceband)
- Mounting pattern: 25.5 x 25.5mm/Φ1.6

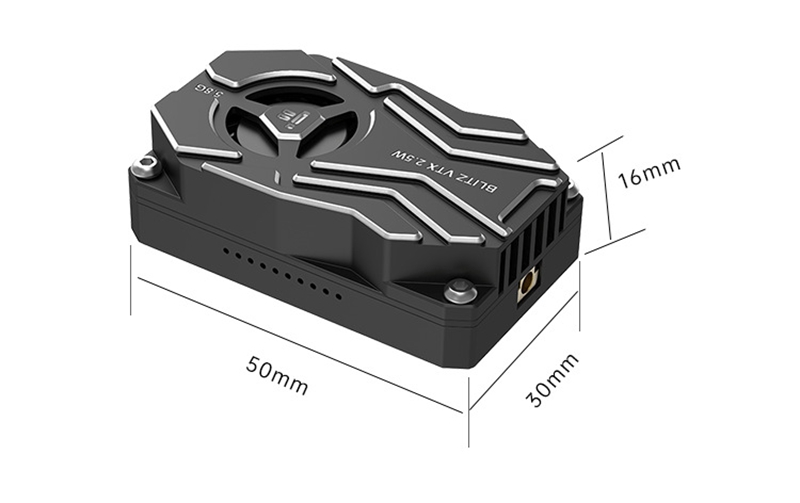

- Lightweight: 32g (excluding antenna)
- VTX telemetry: IRC Tramp
- Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
- RC Tramp VTX table values: 25mW/400mW/1000mW/2500mW
- LED Indicator and Function Button

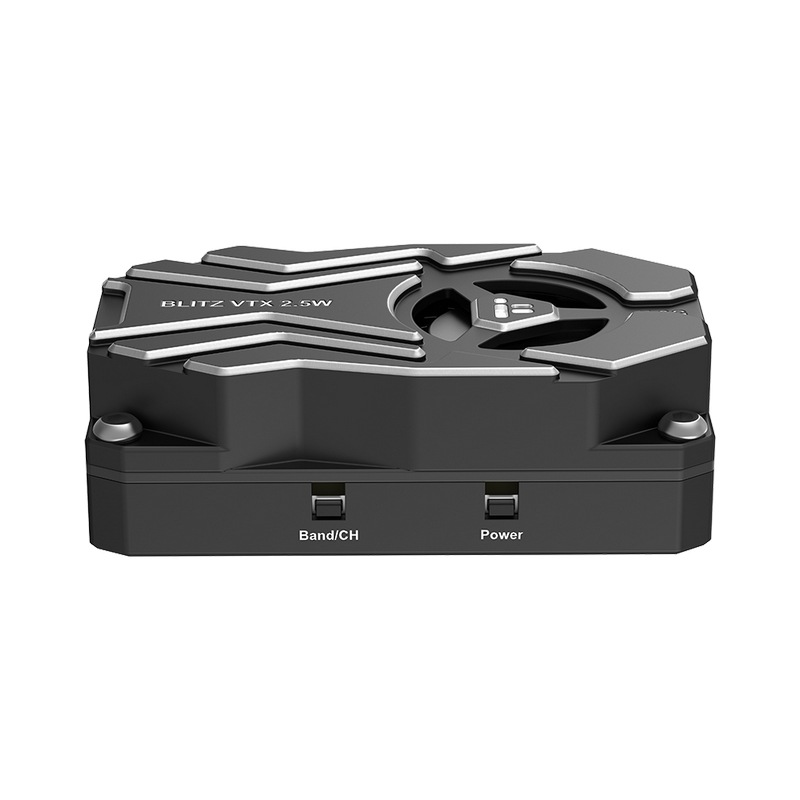

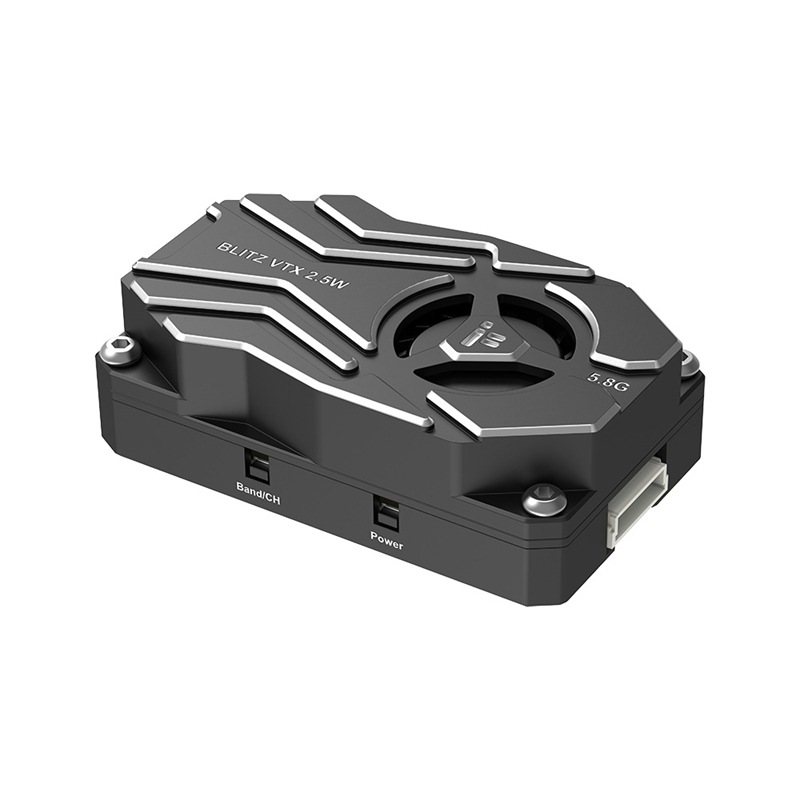

Power Button:
- Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
- Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2 flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW. Short press to change output power.

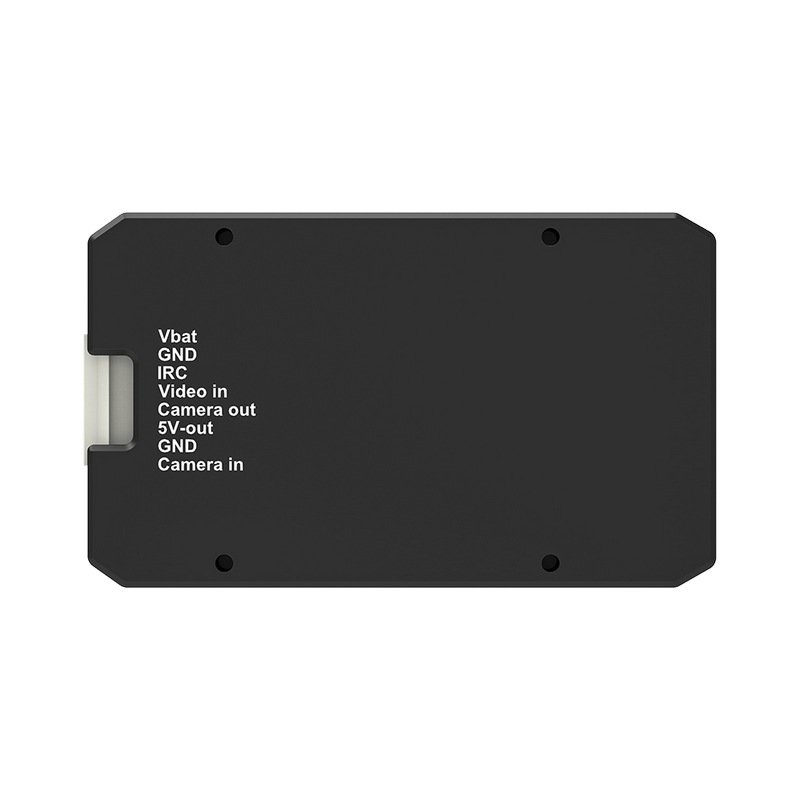

Ports:
- VBAT: 2 - 8S, 7-34V DC positive input
- GND: Negative
- 5V out: 5V voltage output
- IRC: IRC tramp signal input
- GND: Negative
- Video in: Video signal input
- Camera in: Camera video input
- Camera out: Camera video output

Band and Channel Button:
- Press and hole for 2s: Red(BAND): The number of LED flashing indicates the BAND A-R. Press and hold for 2s to switch Band.
- Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.

Tips:
- VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
- Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2 flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW. Short press to change output power.

Precaution:
- Please read the instructions for proper wiring before use.
- It is recommended that before switching on the power, make sure that the antenna has been installed, it can extend the life of the module.
- It is recommended to ensure the correct voltage range and the correct positive and negative polarity before switching on the power to avoid burning the components.
- Please keep enough space when you install the VTX to ensure air convection around the module for heat dissipation. Otherwise, the module will enable overheat protection and the power transmission will be reduced or even switched off.

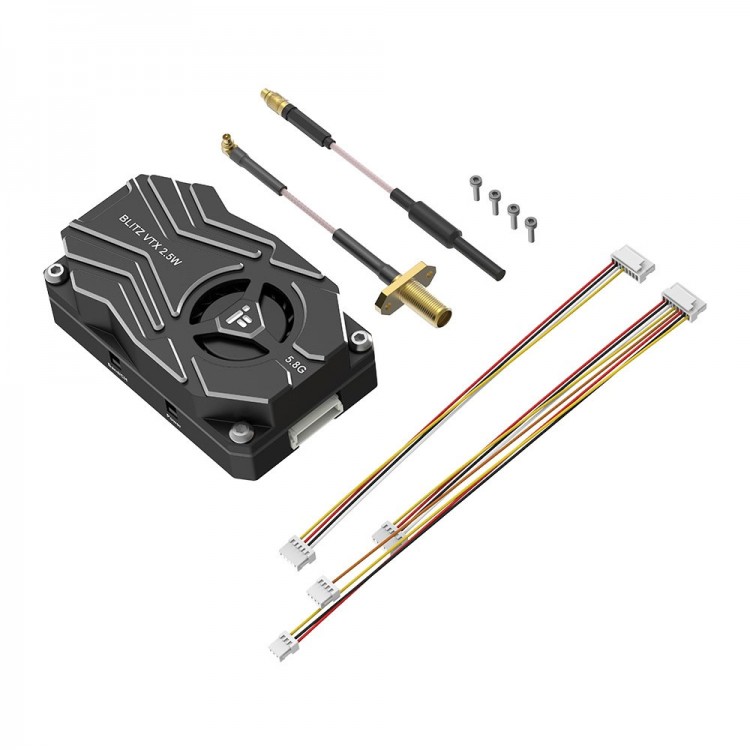

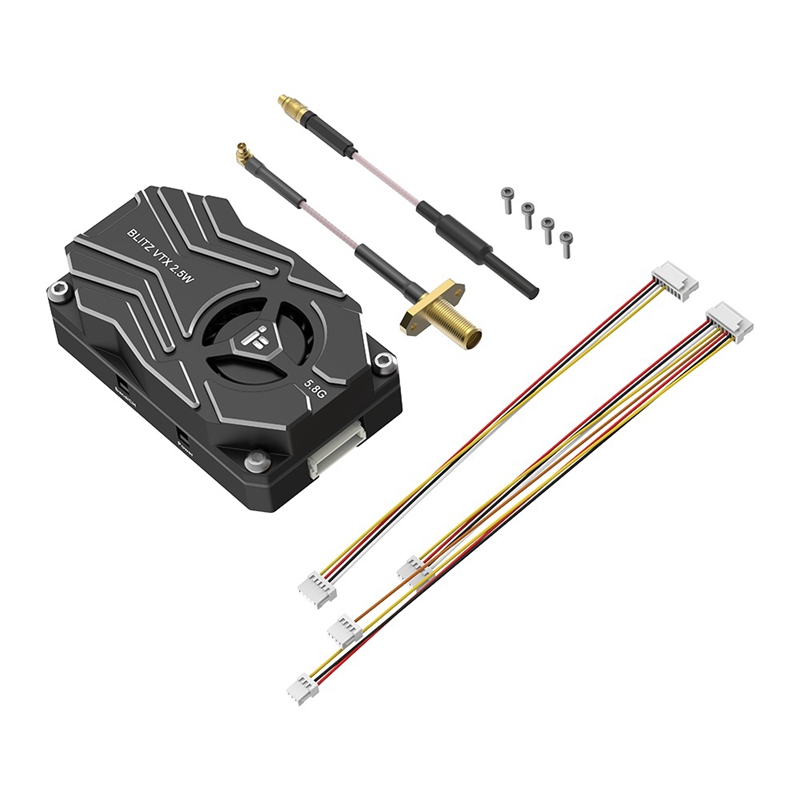

Package Included:
- 1 x VTX
- 1 x Antenna
- 1 x Adapter Cable
- 2 x Terminal Cable
- 4 x Screws
