iFlight BLITZ E80 80A 2-8S ESC Kit-2 STM32G071 MCU Support BLHELI_32 ESC Telemetry for FPV Racing Drones (for X8 Model)
Features:
- Adopting a double-sided fully wrapped CNC shell, it can efficiently dissipate heat even under high current loads. At the same time, the fully wrapped design also prevents debris from entering the electric regulator, making the operation of the regulator more stable.
- The electrical control adopts a dual MOS transistor parallel connection scheme, with 12 high-quality MOS transistors in one circuit, supporting 2-8S LIHV battery input. The PCB adopts a 6-layer 3OZ process, supporting a continuous current of 80A and a peak current of 100A.
- Support the blheli_12 electrical control telemetry function, which can monitor real-time parameters such as electrical control temperature, motor speed, current, etc.
- Onboard LED lights, the color of the electrically adjustable LED lights can be adjusted through the blaheli_12 tuning software.
Specification:
- Continuous current: 80A
- Instantaneous current: 100A (10 seconds)
- MCU: STM32G071
- Outer frame size: 20 x 43.5 x 13.5mm
- Weight: 14.5g (± 2g)
- Input voltage: 2-8S
- BEC: None
- Firmware: IFLIGHT BLITZ_G3
- Telemetry for electrical dispatch: support
- Current sensor: Proportional 200 (1/10mV/A)
- Driver signal support: for DShot150/300/600, for MultiShot, for OneShot driver signals
- Firmware version: 32.9 blaheli_12

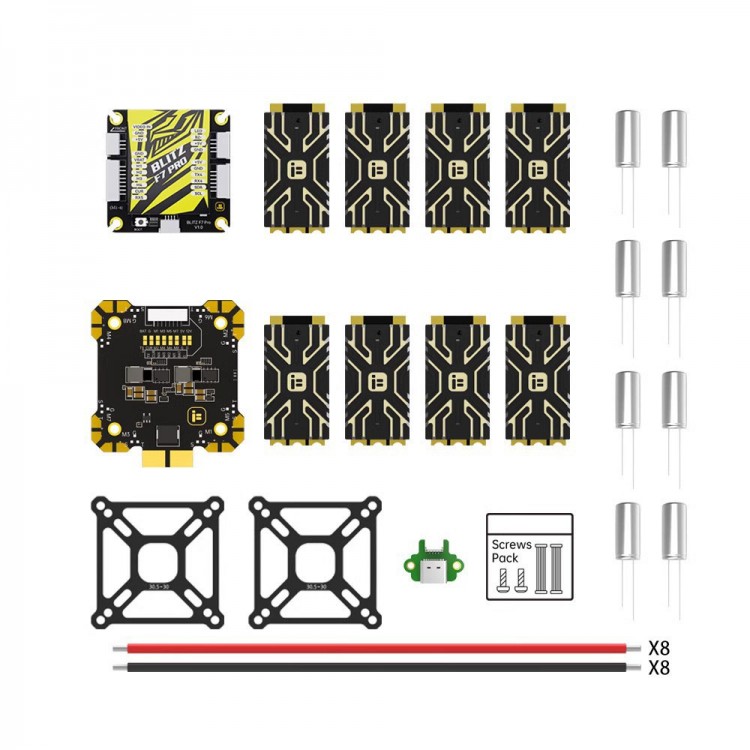

Package Included:
- 1 x Flight Kit for X8
