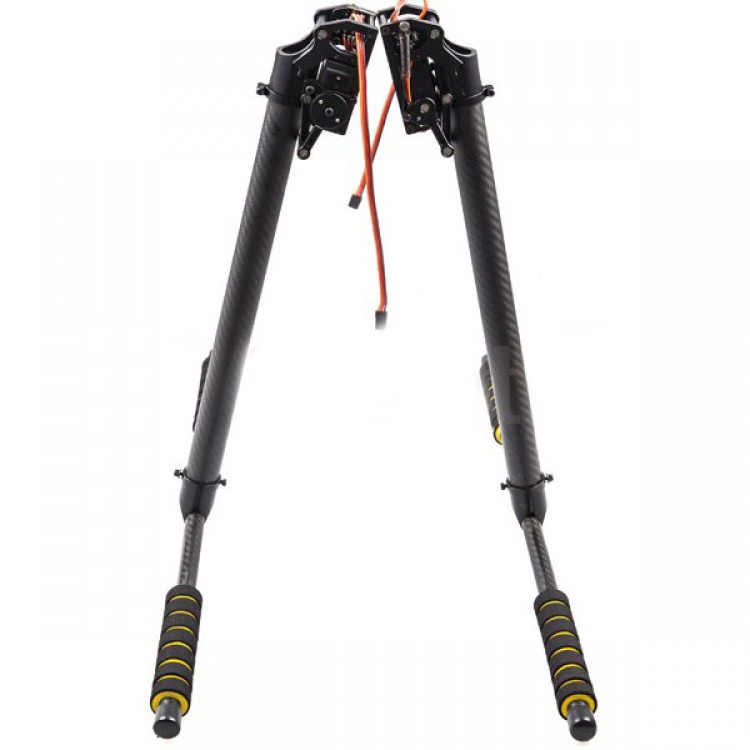

Iflight Carbon Fiber Retractable Landing Skid for B105 B106 Octacopter Multicopter FPV Photography

Iflight Carbon Fiber Retractable Landing Skid for B105 B106 Octacopter Multicopter FPV Photography

Descriptions:
- This electric retractable landing gear is specailly design for iFlight B105,B106 large octocopter aerial photography application,it can be widely applied to various medium and large-scale aerial photography using multi-axis aircraft . through radio 2 motion switcher to control tripod retracting and lowering action, in order to avoid blocking footage tripod for cameras providing 360-degree horizontal rotation shooting space for multi-axis aircraft aerial photography to provide more good shot experiences.

Main features:
- Compatible with16mm/20mm/22mm/25mm multi-rotors arm tube
- Retract freely giving a 360 degree view
- Easy Setup & Operation
- No extra power needed for the Servos
- Simple design,Easy Setup & Operation
- Easy Calibration
- Built-in retractable buffer controller slowly
- Hide -and-drop state, both physical locking mechanism to prevent tripod malfunction
- After power , regardless of what state the remote control switch , tripod always default to put down
- Aluminum + Carbon fiber structure, with high reliability and load carrying capacity

Specifications:
- Maximum ground clearance : 400mm
- Weight: about 560g
- Operating voltage :5-6V
- Power consumption : <0.2W ( standby ); <5W ( run-time )
- Controller: Normal receiver
- Main support tube diameter : 25mm
- Bar diameter : 14mm
- Bar length: 500mm
- Tripod split angle: 110 degrees

Package included:
- 2x main support tube
- 2x bar
- 2x aluminum lazytongs
- 2x large torque servos
- 2x buffer controller
- 1x Servo Y cable
