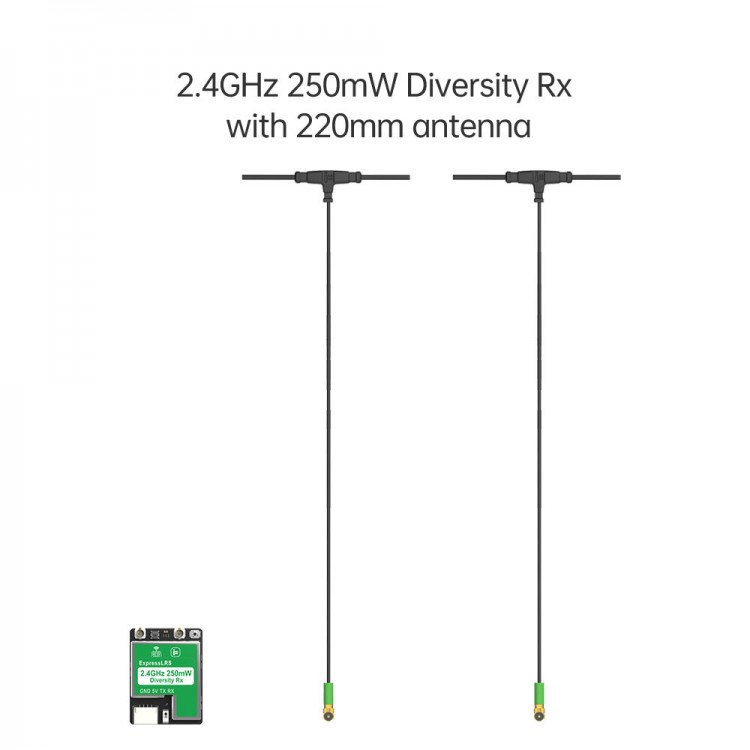

iFlight ELRS 2.4GHz 250mW RX Long Range True Diversity Receiver with Dual 220mm Antenna for FPV Drones
Precaution:
- If you want to use Gemini mode, you need to use a TX (not included) that supports Gemini mode.
Description:
- iFlight ELRS diversity receiver is a true dual-antenna diversity receiver developed in close cooperation with the ExpressLRS Team. ExpressLRS is known for its long-range operation, low latency, and high-power telemetry feedback capabilities.
- The ELRS diversity receiver features well-placed dual antennas with shielding covers, enhancing its resistance to interference, widening signal reception, and ensuring a more stable connection compared to conventional single-antenna receiver systems.
- It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations, with telemetry power reaching up to 500mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Features:
- Gemini mode and True Diversity mode are compatible, better reception effect.
- Integrated shields can protect electronic components and enhance anti-interference capabilities.
- Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability.
- Up to power 250mW telemetry transmission, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
- High-performance at 2400MHz or 900MHz (915 / 868 bands available).
Specification:
- MCU: ESP32-Pico D4
- RF chip: SX1281 (2.4GHz)/SX1276 (868/915MHz)
- Receiver type: Gemini/True Diversity
- Telemetry Power: 100-500mW (20-27dBm) (868/915MHz) / 50-250mW (17-24dBm) (2.4GHz)
- LNA: YES (only for 2.4GHz)
- Size: 24.5 x 18.6 x 4.3mm (±0.2) for 2.4GHz version; 24.3 x 18.5 x 6.5mm (±0.2) for 868/915MHz version
- Weight: 4.2g (±0.5g) (868/915MHz) / 3.3g (±0.5g) (2.4G)
- Firmware: iF 900 500mW GRX (868MHz/915MHz) / iF 2.4G 250mW GRX (2.4G)
- TCXO: Yes
Package Included:
- 1 x Receiver Module
- 2 x Antenna
