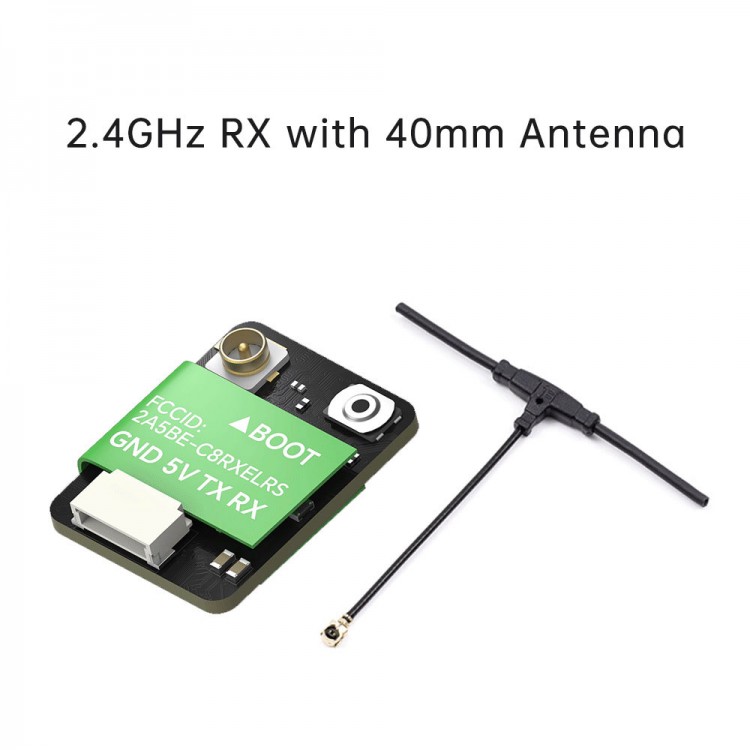

• iFlight ELRS 2.4GHz Nano RX Opensource Receiver with 40mm Antenna 12.3dBm for FPV Racing Drone

iFlight ELRS 2.4GHz Nano RX Opensource Receiver with 40mm Antenna 12.3dBm for FPV Racing Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.14
  • Price in reward points: 231 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.68 $22.21 $21.52 $20.59 Contact US
Quantity:

iFlight ELRS 2.4GHz Nano RX Opensource Receiver with 40mm Antenna 12.3dBm for FPV Racing Drone

Description:

- It's finally here, the iFlight ELRS System! Extreme range and markets highest packet rate for lowest delay. Failsafes are a thing of the past.
- ExpressLRS RX Nano modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
- Checkout the official ExpressLRS website: https://www.expresslrs.org
- Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
- Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating: https://opencollective.com/expresslrs

Features:
- Improved circuit design
- Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
- High-performance at 2400MHz or 915MHz (915 / 868 bands available)

Specification:
- Antenna connector: IPEX(868MHz/915MHz/2.4G) / SMD antenna(2.4G w/SMD antenna)
- Firmware: ExpressLRS iFlight 900MHz Nano RX(868MHz/915MHz) / ExpressLRS iFlight 2.4GHz Nano RX (2.4G)
- Frequency bands: 868MHz/915MHz and 2.4GHz ISM
- Telemetry power: 17dbm (50mW 868/915MHz) / 12.3dbm (17mW 2.4G)
- Dimension: 10 x 13mm
- Interface: RX TX 5V GND
- Input voltage: 5V
- Protocol: CRSF
- Weight: 0.5g

Package Included:
- 1 x FPV RX
