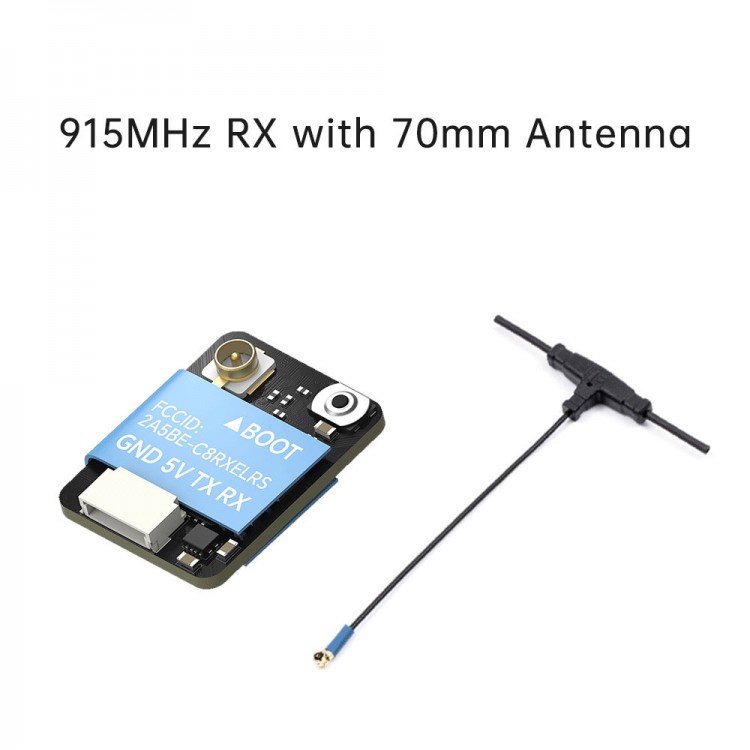

• iFlight ELRS 868/915MHz Nano RX Opensource Receiver with 70mm Mini Antenna 17dBm for FPV Racing Drone

iFlight ELRS 868/915MHz Nano RX Opensource Receiver with 70mm Mini Antenna 17dBm for FPV Racing Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.14
  • Price in reward points: 231 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.68 $22.21 $21.52 $20.59 Contact US
Quantity:

iFlight ELRS 868/915MHz Nano RX Opensource Receiver with 70mm Mini Antenna 17dBm for FPV Racing Drone

Description:

- It's finally here, the iFlight ELRS System! Extreme range and markets highest packet rate for lowest delay. Failsafes are a thing of the past.
- ExpressLRS RX Nano modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
- Checkout the official ExpressLRS website: https://www.expresslrs.org
- Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
- Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating: https://opencollective.com/expresslrs

Features:
- Improved circuit design
- Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
- High-performance at 2400MHz or 915MHz (915 / 868 bands available)

Specification:
- Antenna connector: IPEX(868MHz/915MHz/2.4G) / SMD antenna(2.4G w/SMD antenna)
- Firmware: ExpressLRS iFlight 900MHz Nano RX(868MHz/915MHz) / ExpressLRS iFlight 2.4GHz Nano RX (2.4G)
- Frequency bands: 868MHz/915MHz and 2.4GHz ISM
- Telemetry power: 17dbm (50mW 868/915MHz) / 12.3dbm (17mW 2.4G)
- Dimension: 10 x 13mm
- Interface: RX TX 5V GND
- Input voltage: 5V
- Protocol: CRSF
- Weight: 0.5g

Package Included:
- 1 x FPV RX
