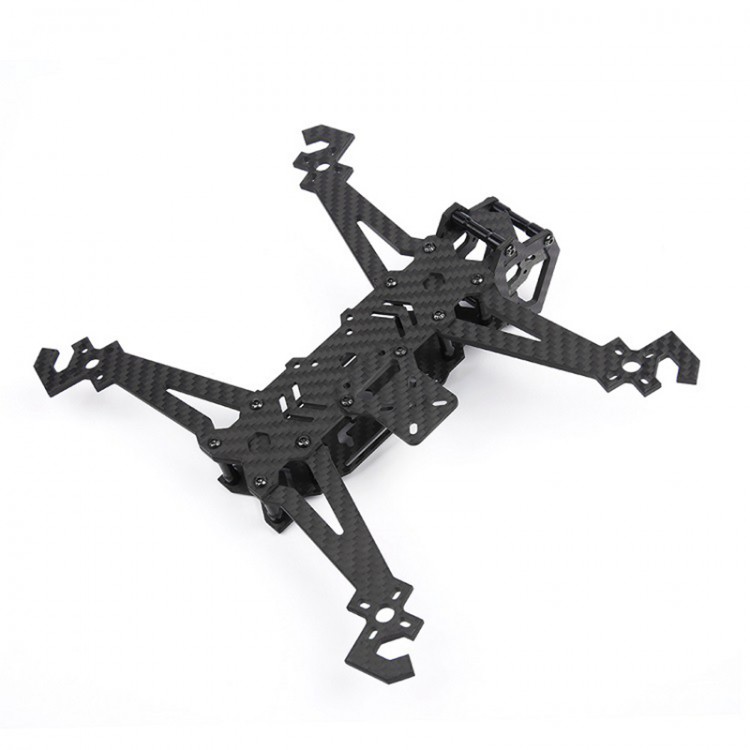

iFlight HL5 V2 225mm 5 Inch FPV Frame FPV Freestyle Frame Unassembled For FPV Quadcopter

iFlight HL5 V2 225mm 5 Inch FPV Frame FPV Freestyle Frame Unassembled For FPV Quadcopter

Description:
iFlight HL5 V2 is a fully upgraded version based on V1. In keeping with the excellent attributes of V1, we have also made various changes to improve performance!

Upgrading (compared to V1):
1. Added support plate for sports camera
2. Integration of left and right arms, regardless of front and rear
3. The shape of motor base is updated, more concise and effective
4. 5 inch and 7 inch accessory kits are universal

Features:
- 40*110mm battery (battery not included) support space, 40*26*110mm equipment installation space.
- With lens frame, in addition to fixing your camera, can also protect lens well. It comes with a 30° tilt angle and can be directly equipped with camera for Gopro and other sports cameras.
- Scientific frame structure and reasonable force analysis make the whole machine solid and thick, which is reliable and durable while reducing the jelly phenomenon of recorded video.
- Equipped with a 3D printed antenna base. Arm protection base and base for Gopro sports camera are optional. The former's reasonable bifurcated antenna maximizes the signal strength of the receiver. The 45° tilt image transmission antenna has the same principle as the receiver. Similarly, the latter protects the arm to minimize bumps, and mount for Gopro acts as a fully enclosed mount, which supports shooting while protecting the sports camera.

Specifications:
- Diagonal wheelbase: 225mm
- Bottom plate thickness: 2mm
- Top plate thickness: 2mm
- Arm thickness: 4mm
- Camera side panel thickness: 3mm
- Camera side plate spacing: 28mm
- Top and bottom plate spacing: 26mm (aluminum column height: 22mm)
- Flight control hole distance: 30.5mm, 20mm
- Net weight: 116g
- Support motor: level 22
- Support propeller: maximum 5 inches

Package Included:
- 1 x Set of FPV Freestyle Frame

Note:
- Assembling is needed.
- Battery is not included.
