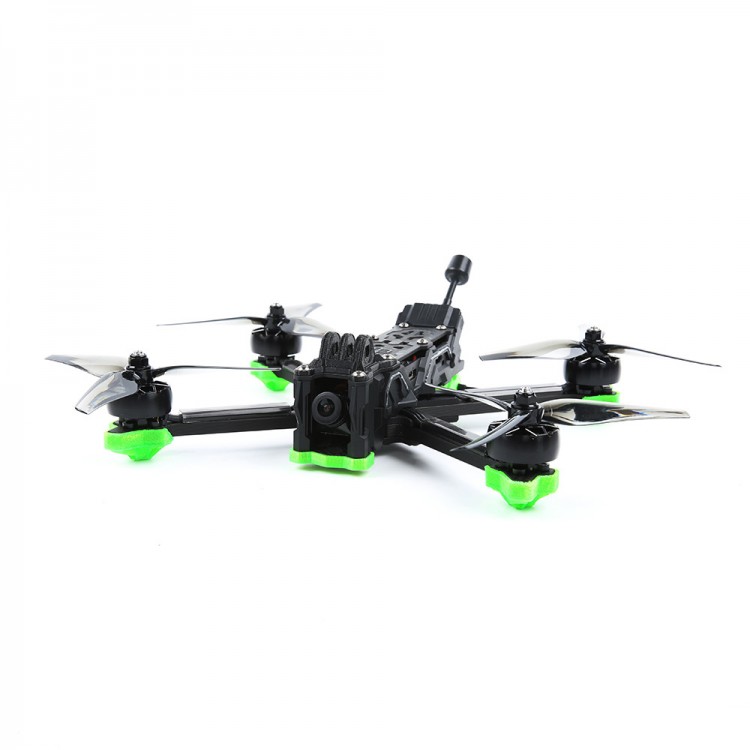

iFlight Nazgul Evoque F5X 5-Inch FPV Drone HD Whoop Drone 6S BNF ELRS 915MHz (Nebula Pro Vista)

iFlight Nazgul Evoque F5X 5-Inch FPV Drone HD Whoop Drone 6S BNF ELRS 915MHz (Nebula Pro Vista)

Description:
The Secret Of Ultimate Performance Is Passion
That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

Lightweight Side Panels - Keep Your Rig Clean
Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

Secured Integrated XT60 Battery Plug - As Safe, It Can Be
Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

High-Performance Electronics - F7 55A Power Stack
Our BLITZ Mini F7 TwinG flight control with Gyro Fusion technology, modern USB type-C plug, 16MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new BLITZ Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.

XING2 Performance Motors - The Best Motors Just Got Better
7075 aluminum bell, 5mm titanium alloy shaft, durable bearings for NSK, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.

Illumination - Let It Be Green
360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.

FC // BLITZ MINI F7 V1.1
Top Features:
- BlackBox: 16MB
- Air Unit (for DJI) Plug-and-Play. No need to solder tiny wires
- BAT, +5V, 3.3, Start indicator
- With LC filter

Specs:
- MCU: STM32 F722
- Gyro: BMI270
- Baro: DPS310
- Betaflight OSD: IFLIGHT OSD (AT7456E)
- Blackbox: 16MB
- 5 X UARTs
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART3 and UART4 for GPS or 0ther sensors that require a serial port
- UART6 for ESC Telemetry
- 4xDshot/PWM outputs
- 1xI2C
- 1xSH1.0 9pin connector for HD VTX/Analog VTX & CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)
- 1xSH1.0 8pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/G)
- 1xSH1.0 6pin connector for Any Receiver or DJI (3V3/R2i/5V /G/R2/T2)
- 1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
- 1xSH1.0 4Pin connector LED & Beeper (BUZ/LED/G/5V)
- Support VTX protocol for Smartaudio & IRCTramp
- WS2812 led Strip: Yes
- Beeper: Yes
- Firmware: IFRC-IFLIGHT_BLITZ_F722
- Mounting: 20*20mm/diameter 4
- Dimensions: 30.5*27mm
- Weight: 5.0g

ESC // BLITZ Mini 55A
Specification:
- Dimension: 35*42mm
- Mounting Holes: 20*20mm/diameter 4mm
- Weight: 11.3g
- Supports 2-6S lipo input
- MCU: G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: for DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G1

Specifications:
- Model: Nazgul F5X
- Wheelbase: 225±2mm
- Frame size: 145*172mm
- Structure: Squashed-X type
- Empty weight: 391±5g (analog); 412±5g (HD)
- Motor circlip hole: 6mm
- Internal space height: 22-31mm
- Motor mounting hole: 16*16mm

Nazgul F5X Configuration (HD):
- Flight controller: BLITZ Mini F7
- ESC: BLITZ Mini E55
- VTX: Nebula Vista
- Camera: Nebula
- Motor: XING2 2207 2750KV 4S/1750KV 6S
- Propellers: Nazgul F5

Package Included:
- 1 x Nazgul Evoque F5X (Squashed X pattern)
- 4 x Nazgul F5 Props
- 2 x Sets of Battery Pads
- 2 x Battery Straps
- 1 x Screw Bag

Note:
- Camera for GoPro, battery (4S 1550mAh and 6S 1300mAh are recommended) and other devices are not included.
