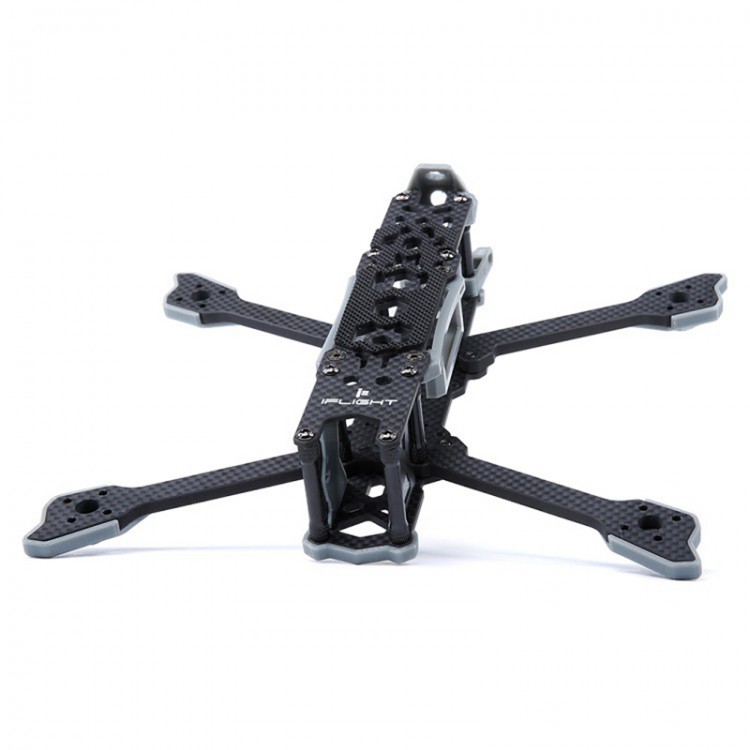

iFlight TITAN FH5 FPV Frame 223mm Unassembled For DJI FPV Sky End Digital Image Transmission

Availability: Out Of Stock

  • Price:$52.88
  • Price in reward points: 529 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $51.82 $50.76 $49.18 $47.06 Contact US
Quantity:

iFlight TITAN FH5 FPV Frame 223mm Unassembled For DJI FPV Sky End Digital Image Transmission

Features:

- The frame can be used for DJI FPV sky end
- New TITAN design style
- Left and right integrated arm, simple design, can enhance the strength of the arm
- Support propeller up to 5.1 inch
- Support for motor 22/23 series
- Compatible with system for DJI FPV
- H-shaped frame structure
- Switch between aerial photography and freestyle at will. Note: Both sky end and sky end printed parts are optional.

Technical Parameters:

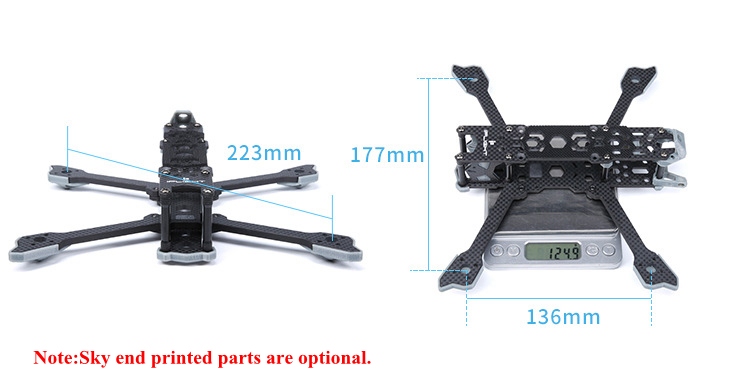

- Diagonal wheelbase: 223mm
- Frame size: 177*136mm (LxW)
- Bottom plate thickness: 3mm
- Top plate thickness: 2.5mm
- Arm thickness: 5mm
- Arm width: 10mm
- Electronic equipment installation height: 35mm (aluminum column height 35mm)
- Flight control hole distance: 30.5*30.5mm/20mm*20mm
- Motor circlip hole position: 8mm
- Motor: 22/23 series
- Camera spacing: 19mm/20mm/22mm

Package Included:

- 1 x Set of FPV Frame

Note:
- Assembling is needed.
- Sky end printed parts are optional.
