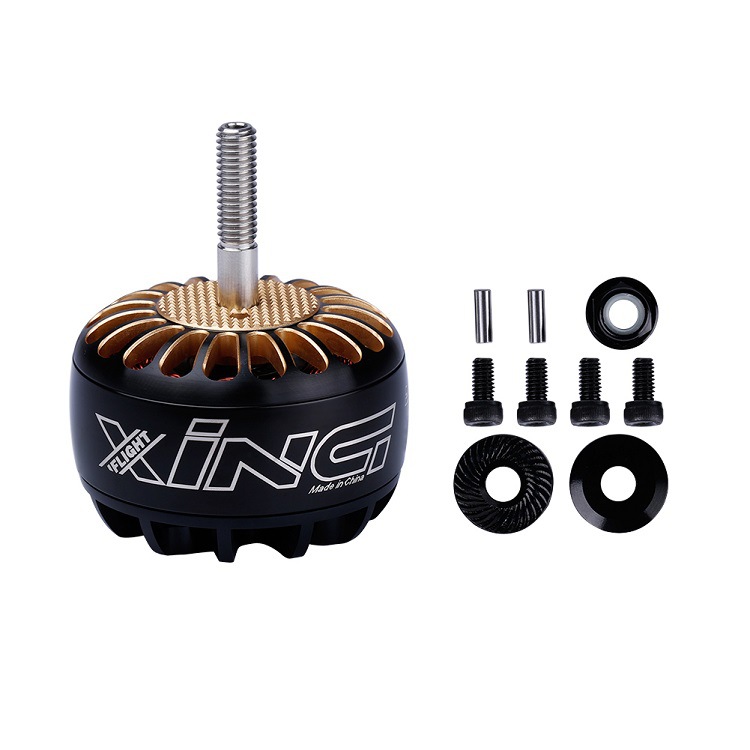

iFlight XING 4214 660KV FPV Brushless Motor 3-6S X-Class Brushless Motor for RC FPV Racing Drone
Description:
The iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pac'ific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!
Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) diameter 6mm shaft & M6 hex nut enables most propellers on market easy to install and remove on 4214. Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.
All in all, the new iFlight XING 4214 is definitely the first choice for X-Class racing!
Features:
- Designed for X-Class models
- Exquisite design, solid structure with large airflow
- The whole body processed with high precision CNC treatment, ensuring high strength and high precision
- The pulling force of 660KV brushless motor reaches 7.9KG
- N45SH magnet ensures torque and high temperature without demagnetization
- 50%-90% throttle maximum force and thrust
- The motor body is precisely balanced to ensure the balance of the motor at high speed
- EZO bearing empowers smooth running of the motor
- Tile magnet with minimal clearance
- 420 stainless steel shaft
- Optimized heat dissipation structure design, down 20% year-on-year
- Reliable magnetic circuit optimization for excellent power conversion

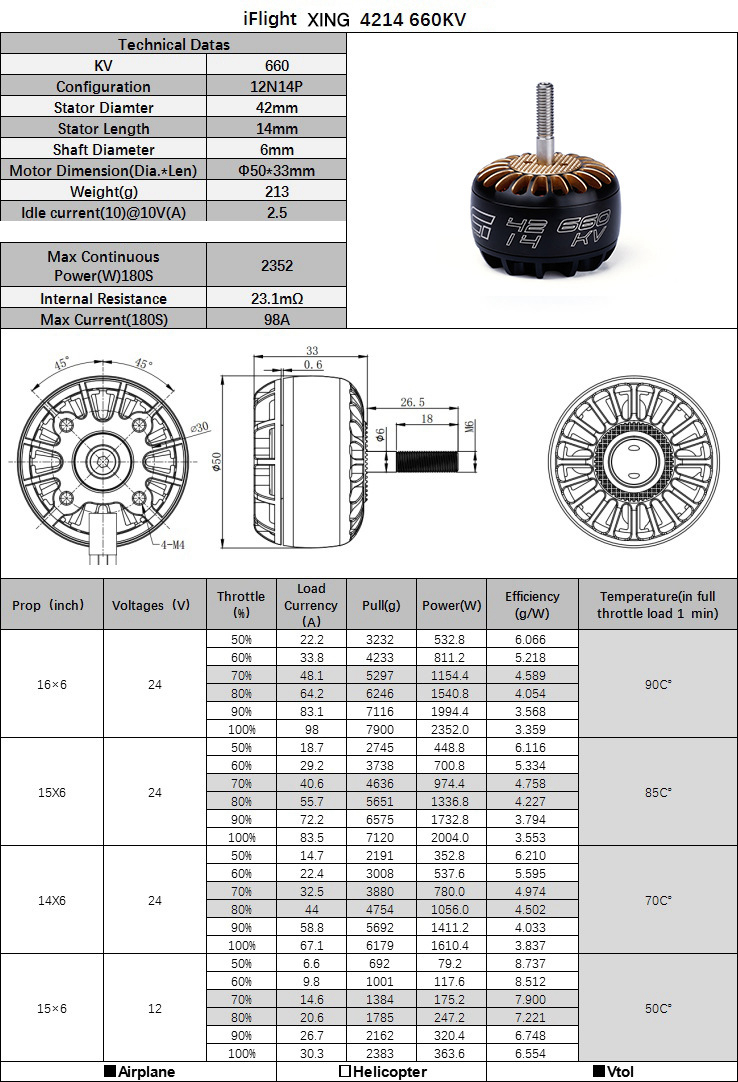

Technical Parameters:
- Item Name: iFlight XING 4214 Motor
- KV: 660KV
- Structure: 12N14P
- Stator Diameter: 42mm
- Outer Shaft Length and Diameter: 26.5mm M6
- Motor Size: Diameter 50*33mm
- Magnet: N45SH
- Bearing: EZO
- Output Cable: 14AWG,800mm
- Weight: 208.8g
Package Included:
- 1 x FPV Brushless Motor
- 1 x Set of Accessories
