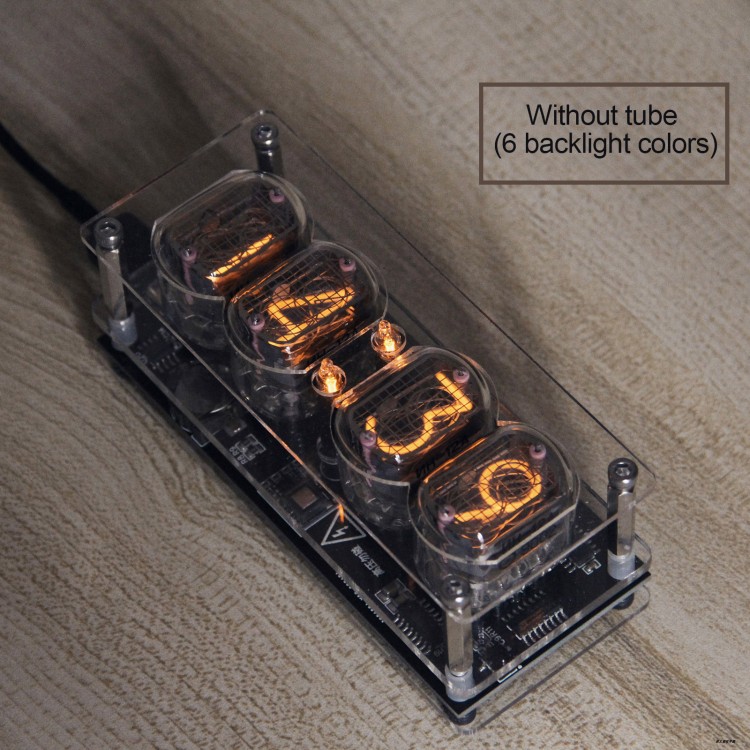

IN-12 Glow Tube Clock Fluorescent Nixie Clock 6 Colors Light Display Time Date (without Tubes)

IN-12 Glow Tube Clock Fluorescent Nixie Clock 6 Colors Light Display Time Date (without Tubes)

Specification:
Name: IN12 Glow Tube Clock
Working voltage: DC 5V (USB-C interface)
Material: high-grade acrylic
Size: 114*46mm

Features:
1. Time display: hour, minute and second time display.
2. Date display: year, month and day date display.
3. Colorful background breathing lights.
4. High-precision clock: built-in high-precision clock chip with an annual error of less than 1 minute.
5. Power-off memory: power-off or shutdown does not affect the clock timing. It is not necessary to reset the time after power-on or start-up.
6. Infrared remote control: use the matching infrared remote control to set.
7. Anti-poisoning procedure: when the cathode is lit, it will radiate some substances outwards and deposit on other cathodes that are not lit, making it unable to glow discharge normally. Under normal circumstances, if each cathode cycle is lit and the lighting time is similar, then the life of the tube will be longer, so the anti-poisoning program is added, and the cycle is lit at intervals to extend the service life of the glow tube.
8. Low power consumption: high-efficiency power supply is used, and the power consumption is controlled at about 1W.
9. Timing switch function.

Instructions:
Button corresponding function:
CH-: on/off
NEXT: switch the bottom atmosphere light color
EQ: enter the set time mode
1: minute, second display mode
2: hour, minute mode
3: display month and day
4: display year
5: test glow tube

Method of setting time:
1. Press EQ, the glow tube at the minute position starts to flash, enter the set time mode.
2. You can change the value by pressing + or -.
3. Set the next item by continuing to press EQ. The sequence is minute-hour-day-month-year, and finally press EQ to exit the setting mode.

Method for setting timing switch:
1. Press the button 6, the glow tube starts to flash, firstly set the minute, use + or- to change the value, press 6 again to set the hour, after setting is completed, press button 6 once again to exit the setting timing mode.
2. Press button 7, the glow tube starts to flash, firstly set the minute, use + or- to change the value, press 7 again to set the hour, after setting, press button 7 once again to exit the setting timing shutdown mode.
3. The default is 00:00, which means to turn off the timing on/off, so if you want to set 00:00 on/off, please set it to 23:59 or 00:01.

Set the brightness and mode of the atmosphere light:
1. Press the button 9, the glow tube starts to flash, use + or- to change the value, 00 is the breathing light mode, 01 is the spectral cycle mode, press the number 9 again, the left glow tube starts to flash, use + or- to change the brightness of the atmosphere light, 0 is to turn off the backlight.
2. In the non-setting mode, use NEXT to change the color of the bottom atmosphere light.

Set the anti-poisoning execution time interval:
Press the button 8 to enter the anti-poisoning execution time interval setting, press + or- to set, after the setting is completed, press the button 2 to exit.

Package List:
1 x Glow Tube Clock (without Tubes)

Note:
-The product does not included glow tubes, please buy them yourself. The model is IN12.
-The product does not comes with power cable, please buy it yourself. The power interface is USB-C.
