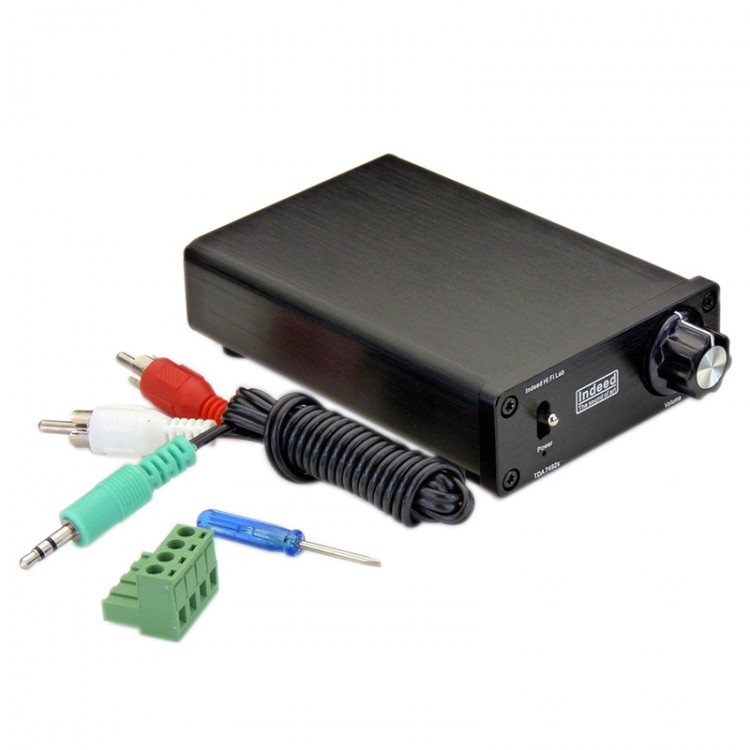

Indeed TDA7492s Cute Class D HiFi 50WX2 Mini Amplifier + 24V2A Power Adapter Silver for LCD TV Monitor

Indeed TDA7492s Cute Class D HiFi 50WX2 Mini Amplifier + 24V2A Power Adapter Silver for LCD TV Monitor

Description:


What is the different coming from this Indeed TDA7492s cute Class D amp ?
1. Double side gold coat PCB ,an audiophile grade 4400MFD huge capacitor for power reserve.
2. High cost OFC Copper Air Coils will get good Q-values than ferromagnetic core base coil, frequency response is very good linearity in both high/low end and less losses;the sound effect is smooth and sweet to hear like as analog LP records.
3. Compact Size(W)72mm x (H)26mm x (D)108mm.Fully Aluminum Alloy Case with nonmagnetic reduce the noise.
4. UP to one year warranty for this product, because we  are manufacture (Indeed Hi Fi Lab).

High Quality Components:
- DC 12-25V input socket (outlet 5.5mm/ centre pin 2.1mm)
- Speakers output socket
- 3.5mm input jack
- Tptal 4400Mfd (2200x2) large capacitors
- Air Coils will get good Q-values than ferromagnetic core base coil
- Sienens mica capacitors
- Wima capacitors
- ALPS volume control

Specifications:
- 4-8Ohm spakers
- ST  IC  TDA7492
- Output Power 2 x 50W @ 4ohm, 2 x 35W @ 8ohm
- Signal-to-Noise Ratio (SNR) 98dB
- Dynamic Range 98dB
- IHF-IM Distortion 0.1% @ 1W, 4ohm
- THD Distortion
- 1% @ 12W 4ohm
- 1% @ 10W 8ohm
- 10% @50W 4ohm
- 10% @ 35W 8ohm
- Power Efficiency 90% @ 40W, 4ohm, 88% @ 25W, 8ohm
- Input Sensitivity 200mV
- Audio IN : 3.5mm socket (Left/Right) x 1
- Power socket (5.5mm/2.1mm) x 1
 Output
- Speaker OUT : 4 pins socket with screw lock.
- Power Indicator (Green LED) x1
- Power input socket: Diameter is 5.5mm of outlet (- ground ) and centre hole (+) is 2.1mm/ DC 12V-25V 2-5A
- Dimensions: (W)72mm x (H)26mm x (D)108mm
- Weight 450g

Notice:
- If you have children in family or worry the risk of high temperature, please think twice to buy it.
- The machine is BTL output, that is to negative side of speaker out is not public grounded,(the two speakers cable must independent connect, no grounding together),we must strictly in accordance with the marking of plus or minus cable connection,this class D amp is  recommend to the DC volts input 18-24V(not less than 1.5A)
- This item come without any AC power cord, please buy the IEC standard power cord in local shop to fit for your need!

Package Contents:
- 1 x Indeed TDA7492s Amplifier
- 1 x 3.5mm jack to RCA plug cable
- 1X Indeed AC90-265V 50/60Hz to 24VDC2A adapter (without IEC power cord)
