Parameter:

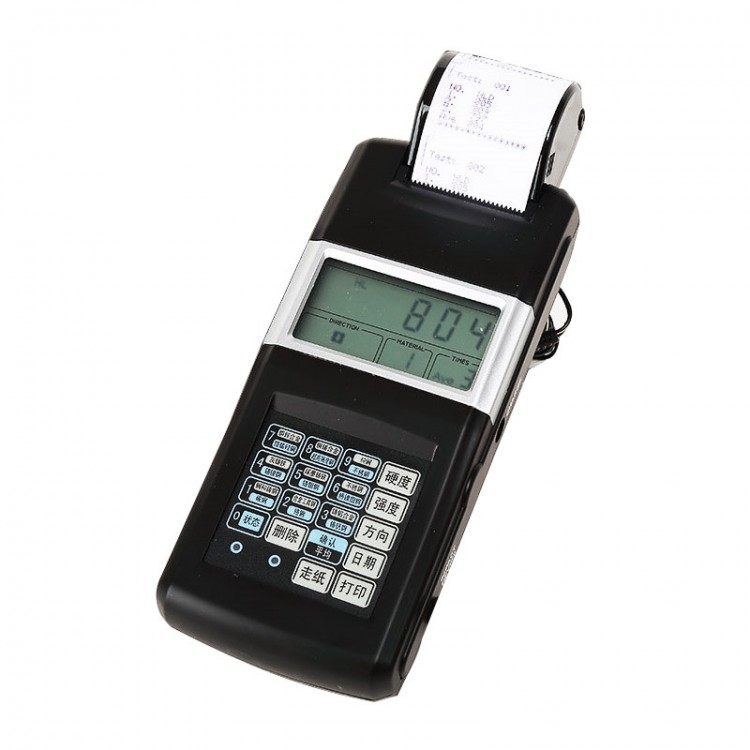

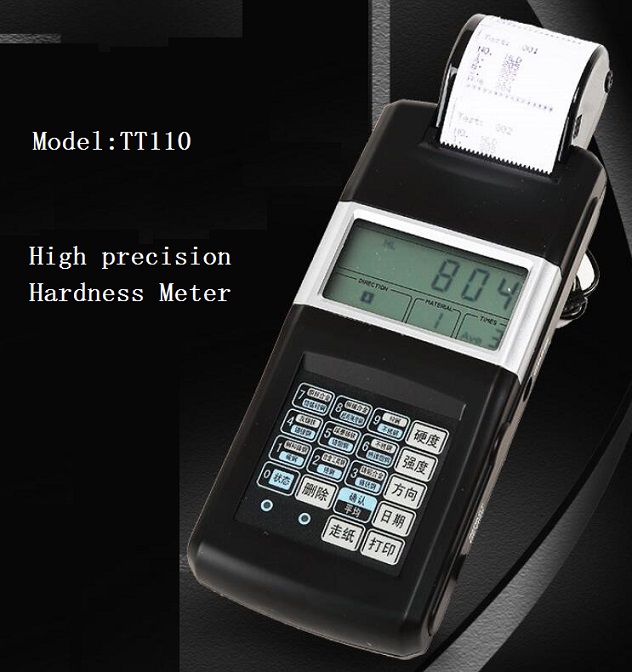

- Model:TT110
- Power supply:9V
- Printer:needle type printer
- Screen display:128x64 dot matrix LCD,with backlight,adjustable contrast
- Printing paper wid th:44.5+-0.5mm
- Printing diameter:40mm
- Data storage:can store 350 groups testing data
- Working voltage:6V
- Testing direction:support 360°(vertical down,Diagonal down,horizontal,diagonal up,vertical up)
- Upper and lower limit setting measurement range:(170-960）HLD
- Continuous working time: about 20 hours (without printing,without backlighting)
- Can test hardness:HL,HRC,HRB,HV,HB,HS
- Testing accuracy:HLD:±4
- Menu language:Chinese,English,Japanese
- Maximum hardness value:940HV(D,C,DC,D+15,C-type impact device)
- The radius of curvature of measuring workpiece:Rmin=50mm（special-shaped support ring,Rmin=10mn）
- Identification function:automatically identify the type of impact device function
- Measuring materials: Steel & Cast steel,alloy tool steel,stainless steel,grey cast iron,spheroidal iron,cast aluminum,brass,bronze,wrought copper alloy.
- Voltage monitoring:when the operating voltage is lower than the rated value,it will automatically alarm
- Charging time: about 1 hour
- Continuous working time: about 20 hours (without printing,without backlighting)

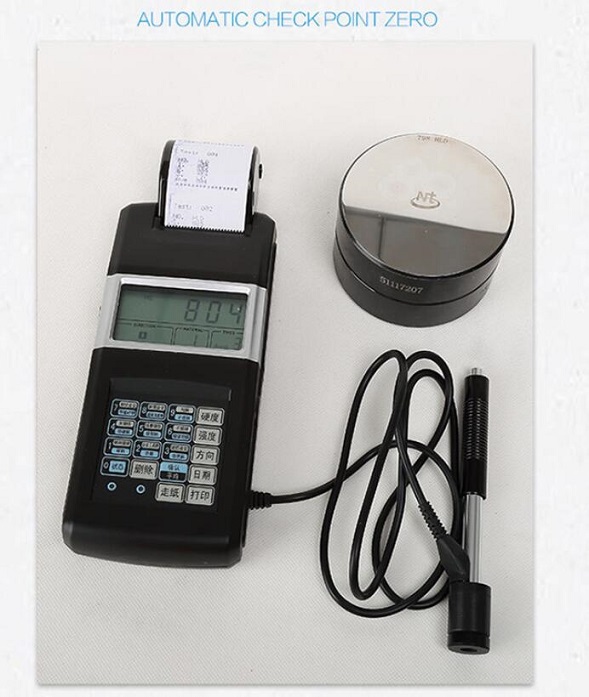

- Calibration: using independent calibration mode,it can be calibrated directly under HRC,HB ect
Main functions:
1.Can achieve the conversion of 6 kinds of hardness (HL,HRC,HRB,HV,HB,HS)
2.Can repeatedly display the results of each measurement,and can automatically or manually delete the results of the test
3.Can output a single test average at any time or the overall output of all stored data
4.Automatic test battery voltage,battery low voltage warning,the screen shows the power icon
5.Testing report instant output
6.Rich status bar displays,buzzer,error message,time,battery
7.A variety of electricity states
8.Multilingual display,menu type operation,easy and convenient operation
9.Operating temperature:-10~+50 ℃
10.Storage temperature:-30~+50 ℃
