Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $173.14 | $169.60 | $164.30 | $157.24 | Contact US |

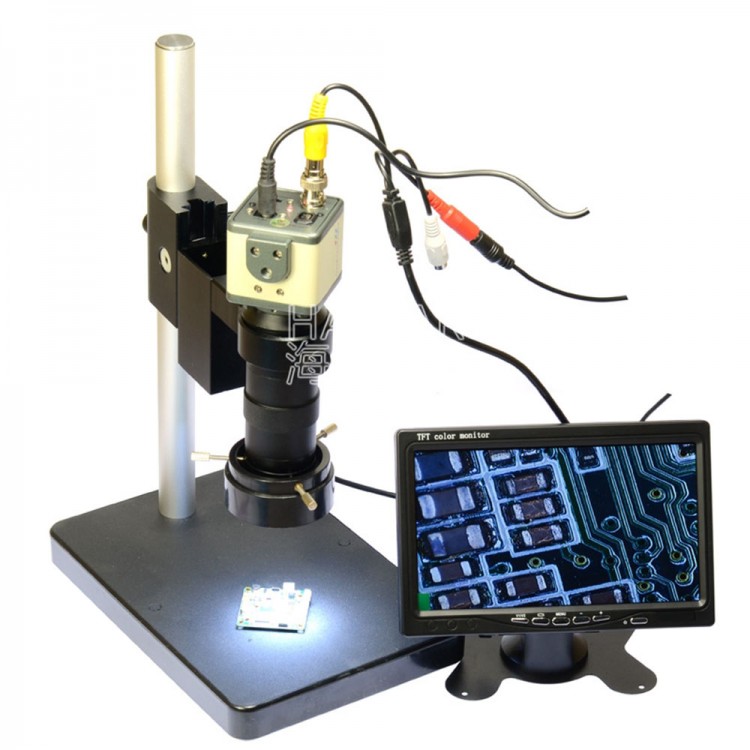

Industrial 800TVL HD Microscope Camera BNC Output w/ Table Stand 7" TFT Color Monitor Stand
Specification:
- Resolution: 800 TVL
- Sensor type: CCD "1/3 color (SONY)
- Support resolution: 800*600 (support 1024*768)
- Output mode: AV/BNC
- Color: color
- Frame rate: 60 frames / sec
- White balance: automatic
- Pixel size: 2.8um*2.8um
- Data: 10bit
- Scanning mode: progressive scan
- Shutter type: electronic shutter
- Dynamic range: >60dB
- Exposure time: 54us - 540ms, automatic exposure
- Power supply: DC12V1A
- Operating temperature: -10 -60 degree C
- Interface: Standard C interface
- Lens: manual focus lens (optional)
- Support system: display with BNC AV interface
- Weight: About 2.8kg
40 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 40 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, auto switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-45mm
Camera Table Stand:
- With Dual Ring:42mm(diameter) ,23mm(diameter)
- Large table stand for stereo microscopes
- 29cm microscope high pillar
- Size: 22cm x 15.5cm x 33cm(height)
- Item weight: 1200g
- Material: Alloy Aluminum
Package List:
- 1 x Microscope Stand set
- 1 x BNC microscope
- 1 x 100X camera
- 1 x 40*LED set
- 2 x 12V 1A power supply
- 1 x BNC adapter
- 1 x Cable
