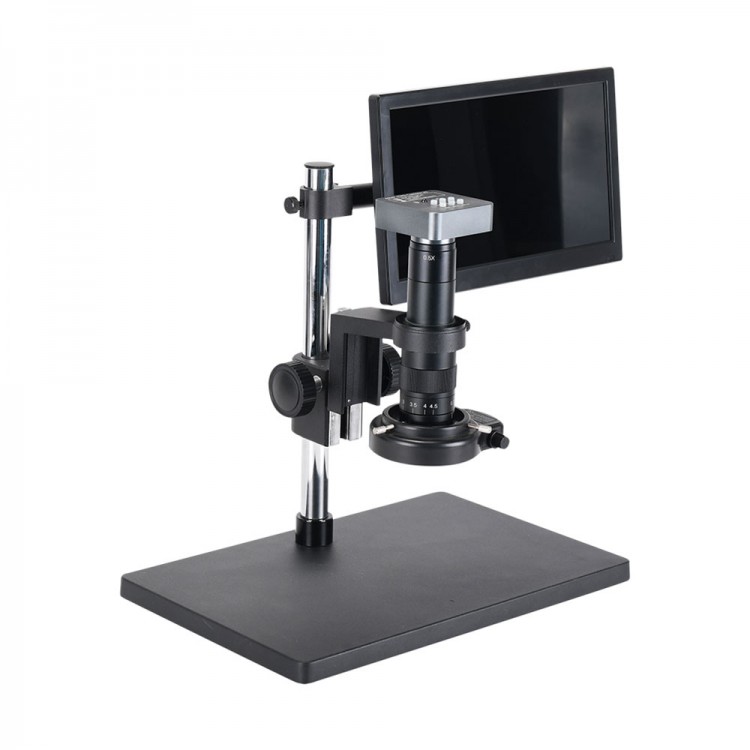

Industrial Camera 48MP FHD Camera V8 w/ 180X C Mount Lens 144 LED Ring Light Stand For PCB Repair

Industrial Camera 48MP FHD Camera V8 w/ 180X C Mount Lens 144 LED Ring Light Stand For PCB Repair

Features:
1. PC supports for multiple system, supports for Windows XP/7/8/10 system
2. Comes with a 180X C-mount zoom lens for industrial microscope camera
3. This 48MP industrial microscope camera is suitable for repairing industry
4. Adopts high quality metal housing, sturdy, durable and has long life
5. High resolution and dual output, which makes it more convenient to use

Specifications:
- Condition: 100% Brand New
- Item Type: Microscope Camera
- Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
- Image Format: jpg
- Image Resolution: 48MP
- Video Format: MP4 (for Memory Card)
- Video Recorder: 1080P at 60FPS
- High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS (For HDMI)
- USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
- White Balance: Automatic / Manual
- Light: Automatic / Manual
- Exposure: Automatic / Manual, Value Adjustable
- Direction: Left / Right, Up / Down
- Freeze: Support
- OSD: English / Chinese / French / Spanish / Japanese / German
- Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
- Image Sensor: 48MP for CMOS Sensor 1/2.33 Inches
- Effective Pixels: 48MP
- Pixels Size: 1.335μm x 1.335μm
- Frame Rate: 60fps
- Definition: Full High Definition
- Housing: Metal
- Lens: C/CS
- Video Format: MOV
- Digital Zoom: Support
- Brightness Control: Automatic / Manual
- Color: R / G / B Adjustable
- Film and Records: Support
- Cross Cursor: Support multi-color, adjustable size
- Horizontal and Vertical Lines: Support multi-color, 5 horizontal / vertical lines, movable. Different colors, 5 horizontal lines, 5 vertical lines, any position
- Memory Card Interface: up to 64G (Not Included)
- High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
- USB Interface: Standard USB2.0 Interface (Type B)
- Input Voltage: DC 12V

180X C-Mount Lens:
- Working distance: 95mm
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7-4.5X (about 10-180X on the display)
- Size: 180mm (L) * 50mm (DIA.)
- Working distance: 11cm

144 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power supply input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-45mm

Package Included:
- 1 x Set of 48MP Microscope Camera

Note:
1. PC Support: for Windows XP/7/8/10 system.
2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. (The camera keys are not available. Remote control cannot operate)
3. For high-definition multimedia interface output, the function can adjusted when connected to the monitor. (Camera keys available. The remote control can be operated wirelessly)
4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.
5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).
