Industrial PC Computer Soft Router 4405U Barebone System Without Memory Nor Hard Disk For Openwrt

Industrial PC Computer Soft Router 4405U Barebone System Without Memory Nor Hard Disk For Openwrt

Specifications (Configuration C):
- Processor: for intel Pentium 4405U, 2-core 4-wire main frequency: 2.1G
- Shell: All aluminum alloy shell, no built-in fan, zero noise, full passive cooling
- Front panel IO interface: 2*USB3.0, 2*USB2.0, 1*HDMI, 1*VGA

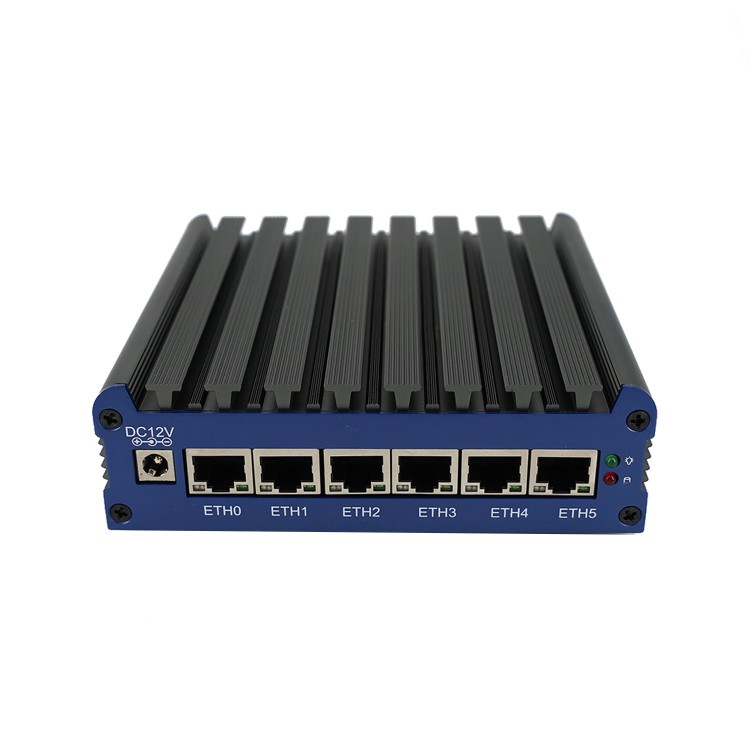

- Rear panel IO interface: 6*RJ45 Gigabit Ethernet port, 12V DC power interface
- Memory: Support 2 DDR4 laptop memory, up to 64GB (32G*2)
- Hard disk: 1*MSATA, 1*SATA 3.0 interface
- Expansion interface: 1*MINIPCIE (can be connected to WiFi, Bluetooth)
- Size: 13.5*12.5*4.2cm
- System support: for Openwrt, Ikuai, UNRAID, Windows

Attention:
- System for OpenWrt is installed by default.

Package Included:
- 1 x Set of Soft Router

FAQ:
Q: What can soft router do?
This is an industrial computer. Only when it has a routing system installed, it can be called "soft router". Soft router will not increase the bandwidth of your home. For example, if you install a 200M network, using soft router will not increase to 300M 500M (except for multi-dial overlay. And multi-dial is only available in single thread). The soft routing system is only more open than the hard routing system. More plug-ins can be installed, and the plug-in efficiency is higher. For example, some plug-ins that everyone loves to see can exert higher efficiency.

This industrial computer can be installed with many systems, "soft routing" is only one of them, the default configuration models are pre-installed with routing system for Openwrt. Please leave a message if you need ESXI virtual machine!

Q: Why can't I enter the background?
The configuration models with memory and hard disk are all installed by us, and a manual is attached. If you cannot get into the background after connecting network cable according to the instructions, check these aspects. 1. Does the computer automatically obtain an IP? Set it to automatically obtain IP. 2. If the soft router is connected to a router, is the router in AP mode or bridge mode? To set these two modes, you can enter the background only under the same network segment. If the router does not have these two modes, your computer can be directly connected to the IPC network port to enter the background. 3. Check whether the industrial computer starts normally. (Connect the HDMI on the back to a monitor. If there is a picture and display the IP, then it is a normal startup, you need to connect the HDMI first and then connect power supply, otherwise there will be no picture).

Q: Why I can enter the background but cannot access the Internet?
If you can’t connect to the Internet, you need to investigate from several aspects. 1you’re your modem in bridge mode? If it is in bridge mode, you need the WAN port for Openwrt to dial (The modem is bridged when your computer can be directly connected to the modem through the network cable. If it can, the modem can dial the Internet. If it can’t bridge the modem) 2. If you need soft routing dialing, you need to wait for a while after setting the account password (in some areas, dialing is extremely slow and it takes nearly 10 minutes to dial successfully). 3. If the wireless router is connected, the wireless router should be set to AP, Bridge or DHCP mode (router mode). It is recommended that the first two, do not choose PPPOE mode. 3. If all settings are ok and still can’t go to the network, you can find MWAN3 in the background system for Openwrt-startup item to disable it, and then check whether can be networked.

Q: How to modify each backend IP address?
To modify the background IP address for VMware ESXI, the industrial computer must be connected to a monitor and a keyboard, and the IP address must be modified in the background of the industrial computer's display.

For OpenWrt IP, you can enter the network-interface LAN by entering the background for OpenWrt to modify the IP behind IPV4.

In addition, the input of the registration code for VMware can be found in the background of the ESXI webpage. Enter it in the host-management-license. The registration code can be found online.

Q: Is it normal for the casing to become hot?
If the industrial computer adopts passive cooling (no cooling fan inside), then the shell will be a sink. Therefore, it is normal for the shell to heat up, so try not to prevent the IPC in the sealed space of the machine. If it must be placed in a weak current box, please purchase a separate cooling fan and stick it on the industrial computer to ensure the normal operation of the industrial computer.
