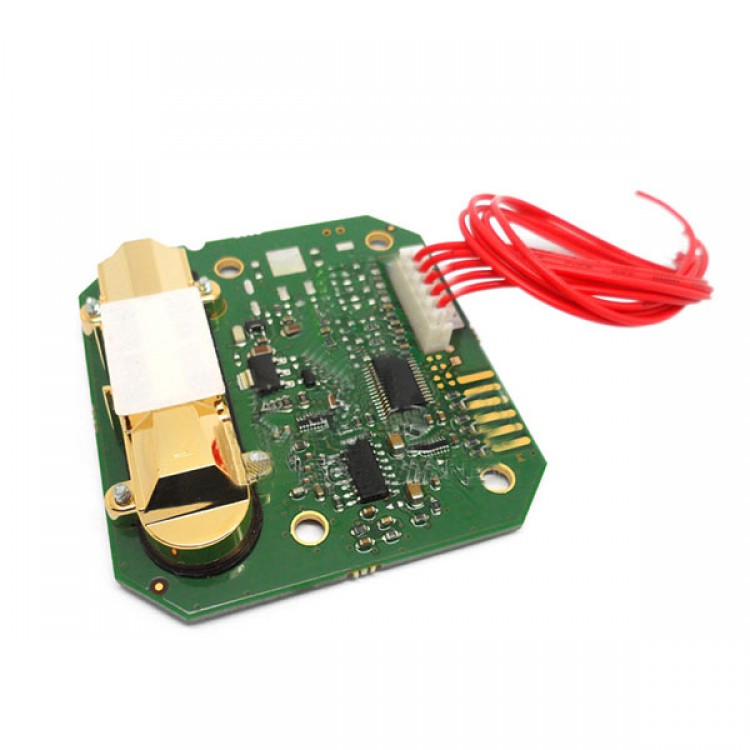

Infrared Carbon Dioxide Sensor Module CO2 High Sensitivity
Description:
- Range: 0~2000ppm
- Resolution: 20ppm
- Precision: the CO2 reference values for the factory were 75ppm@22 (72F), or 10% of the readings, whichever was the maximum.
- Stability: Logic ABC will make the module achieve complete accuracy. When abd logic that can, as long as the sensors in every 21 days at least 3 times can be detected reference CO2 concentration values (400 ppm - CO2 concentration) can be, and the reference CO2 concentration value can be detected the lowest value.
- Temperature effect: 0.5% per or 0.275%FS per F FS
- Non linear degree: Scale 2%Full
- The impact of the pressure: the typical, every millimeter of mercury to live affects the output readings error of about 0.13%
- Response time: 3 minutes
- The engine reaches the normal working time: less than 3 minutes
- Maximum accuracy: less than 15 minutes
- Carbon dioxide sensor module T6603-5 range: 0~2000ppm
- Resolution: 20ppm
- The accuracy: 75ppm@22, or reading 10%, whichever is the maximum
- Nonlinearity:
- Pressure effect: reading Hg 0.13%/mm
- Response time: minute
- The engine reaches the normal working time: minutes
- Achieve maximum accuracy minute
- Digital output: UART@19200Baud
- Analog output: OC gate output (PWM output or threshold detector)
