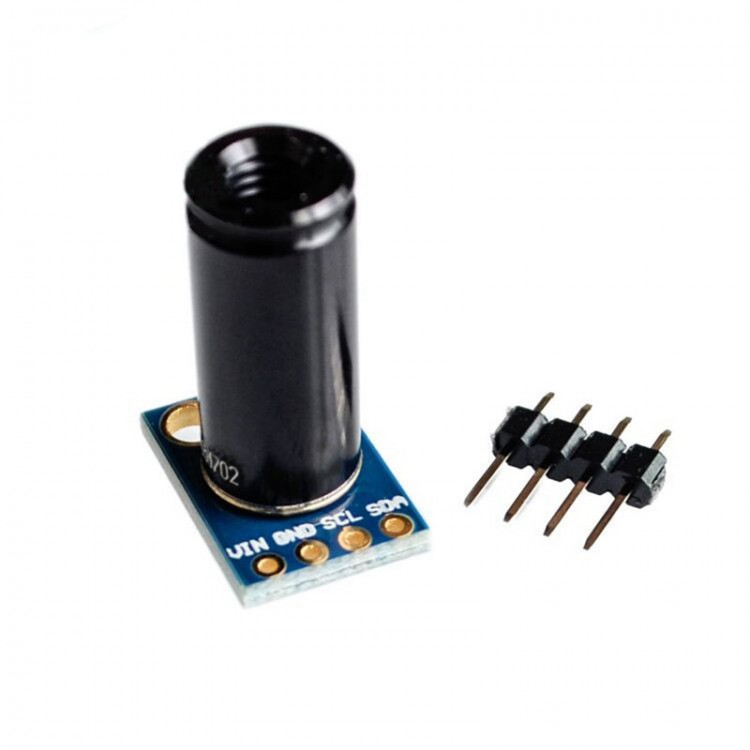

Infrared Temperature Sensor Non Contact Thermometer Sensor Detection Distance 50cm GY-MLX90614-DCI

Infrared Temperature Sensor Non Contact Thermometer Sensor Detection Distance 50cm GY-MLX90614-DCI

Advantages:
- Measurement Distance: 50cm
- 3V medical application accuracy
- Temperature gradient compensation
- 3° FOV (angle)

Features:
- Small size and low cost
- Easy to integrate
- Factory calibrated in wide temperature range: -40 to 125℃ for sensor temperature and -70 to 280℃ for object temperature
- High accuracy of 0.5℃over wide temperature range (0 to 50℃for both Ta and To)
- Medical accuracy of 0.1℃ in a limited temperature range available on request
- Measurement resolution of 0.02℃
- Single and dual zone versions
- SMBus compatible digital interface for fast temperature readings and building sensor networks
- Customizable PWM output for continuous reading
- Available in 3V and 5V versions
- Simple adaptation for 8 to 16V applications
- Power saving mode
- Different package options for applications and measurements versatility
- Automotive grade

Application Examples:
- High-precision non-contact measurement
- Temperature comfort sensor for automotive air conditioning control system
- Air-conditioning temperature sensing element for residential, commercial and industrial buildings
- Windshield anti-fog application
- Detecting dead angle of car visual field
- Industrial mobile component temperature control
- Printer and copier temperature control
- Home appliance temperature control
- Health care
- Livestock monitoring
- Moving object detection
- Multi-zone temperature control-two-wire communication supports up to 100 sensors
- Thermal relay / alarm
- Body temperature measurement

Specifications:
- Module No.: GY-906-DCI
- Chip: MLX90614-DCI
- Power Supply: 3-5v (internal low dropout voltage regulation)
- Communications Method: standard IIC communications protocol
- High quality immersion gold PCB
- Size: 11.5 x 16.5mm
- Weight: 2g

Package Included:
- 1 x IR Temperature Sensor Module
- 1 x Pin Header
