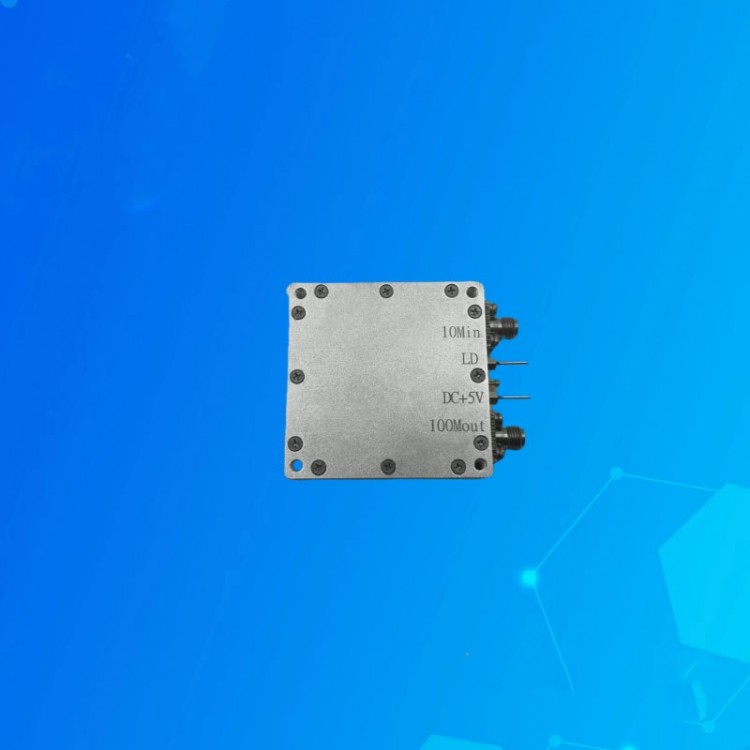

Injection Phase-locked Crystal Oscillator 100MHz Low Phase Noise Crystal Oscillator w/ 10M Input 100M Output

Injection Phase-locked Crystal Oscillator 100MHz Low Phase Noise Crystal Oscillator w/ 10M Input 100M Output

Description:
The phase-locked frequency-doubling crystal oscillator uses phase-locked frequency synthesis technology. Its main feature is that the voltage-controlled oscillator in the loop adopts a voltage-controlled crystal oscillator, which has better phase noise than the general voltage-controlled oscillator. It indirectly makes the phase-locked loop have a better remote phase. Due to loop filter, the phase noise of the phase-locked crystal oscillator at the near end is related to the phase of the reference signal, which deteriorates by 20 logN. The phase noise at the far end is determined by the phase of the voltage-controlled crystal oscillator.

Specifications:
* Input and output: SMA-K
* Input signal: 10MHz at 0dBm
* Output signal: 100MHz at 14dBm
* Harmonic suppression: ≥60dBc
* Spurious suppression: ≥75dBc
* Power supply: +5V±5%, current less than 200mA
* Lock indication: Lock LD to output high level
* Attention: In the case of no input, a 100MHz signal can still be output, but the signal will be about 200KHz higher

Package Included:
* 1 x Crystal Oscillator

Packaging Details:
* Weight: 0.22kg
