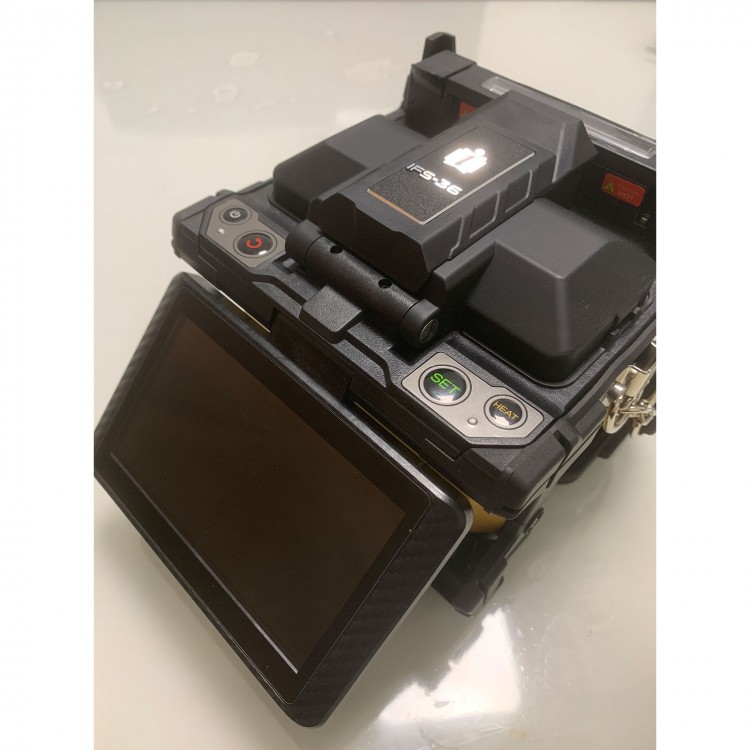

Inno IFS-36 Cladding Alignment Fusion Splicer Fusion Splicing Machine with 4.3-inch Color Screen

Inno IFS-36 Cladding Alignment Fusion Splicer Fusion Splicing Machine with 4.3-inch Color Screen

Features:
- Two white light sources
- Mirror-less construction
- Industrial quad-core CPU
- 4.3-inch color screen
- Multi-functional fixture
- Complete accessories
- Shock-resistant rubber protective curtain
- With a touch screen and buttons
- Accessories with anti-counterfeiting function
- Optional with a variety of Internet of Things

Technical Parameters:
- Dimensions: 144mm x 134mm x 130mm/5.7" x 5.3" x 5.1"
- Weight: 1.68kg/3.7lb (including battery)
- Applicable number of cores: single core
- Applicable fiber type: SM (ITU-T G.652&T G.657); MM (ITU-T G.651); DS (ITU-T G.653); NZDS (ITU-T G.655)
- Cladding diameter: 0.125mm-3mm/0.005"-0.1"
- Fiber cutting length: 5mm-16mm/0.2"-0.6"
- Average loss: SM: (0.03dB); MM (0.02dB); DS (0.05dB); NZDS (0.05dB); G.657 (0.03dB)
- Splicing method: Cladding alignment
- Number of motors: 4 motors
- Heating modes: 32 heating modes, 4 presets
- Splicing modes: 128 splicing modes, 9 presets
- Return loss: >60dB
- Splicing time: 7s (fast: 5s)
- Lighting: LED*2
- Splicing loss assessment: With
- Length of heat shrink tube: 20mm-60mm/0.8"-2.4"
- Heating time: 20s typical / 9s fast speed
- Splicing result storage: 10000 pieces of data and 10000 images
- Tensile test: 1.96~2.25N
- Operating conditions: altitude 0-5000m/0-16404.2ft, relative humidity 0~95%, -10°C to 50°C, maximum wind speed 15m/s
- Storage conditions: 0~95% relative humidity, -20°C to 60°C, -20°C to 30°C for battery
- Observation method: Two cameras are 90° to each other for easy observation, with a 4.3-inch color LCD screen
- Display magnification: 320X magnification. There are 3 display modes for the splicing screen
- Power supply: AC100~240V, DC12.6V-1.8A
- Battery: 3500mAh, 140 cycles typical (splicing + heating)
- How it works: Buttons and touch screen
- Automatic-discharge correction function: It will automatically calibrate with changes in air pressure and temperature
- Electrode rod life: >5500 cycles
- Data output: Type-C

V7MINI Fiber Cleaver:
- Model: V7MINI
- Size: 65mm x 70mm x 53mm/2.6" x 2.8" x 2.1"
- Applicable optical fiber type: 0.25mm-0.9mm/0.01"-0.04" pigtail and bow-type drop cables
- Fiber diameter: 0.125mm/0.005"
- Cutting length: 6mm-20mm/0.2"-0.8"
- Average angle: 0.5°
- Blade life: cut 1000 times, adjust 1 time, each scale can adjust the height 3 times, a total of 16 faces, the total life of 48000 times
- Steps: 2

Package Included:
- 1 x Set of Fusion Splicer

Packaging Details:
- G.W.: 12kg
