Description:

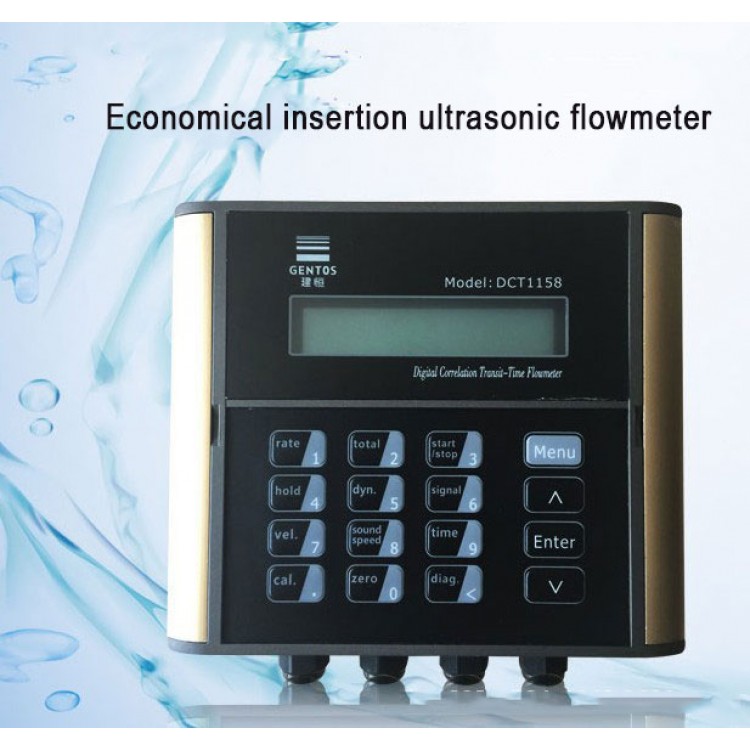

DCT1158W is a universal, economical, plug-in, time difference ultrasonic flowmeter.
It is easy to install, without the need to stop production on site, enabling customers to easily measure pipeline flow. The most advanced digital correlation technology and intelligent adaptive sound wave technology makes its measurement stability more outstanding. At the same time, it uses the patented acoustic focusing technology to significantly improve the signal reception quality of the product during continuous measurement.

It consists of transmitter and sensor. The plug-in probe can be installed online with pressure, featuring stable installation and no need to stop production on site. Particularly suitable for flow measurement of a single liquid medium containing a small amount of particles and bubbles.

It adopts advanced modular integrated design, independent menu operation, and LCD backlight display. The protection level of the transmitter is IP65, and the protection level of the sensor is IP68, which is suitable for use in harsh environments, including humidity and soaked places.

It fits for solar, Rem power, explosion-proof and other functional modules to meet your needs.

In the transmitter menu, input your pipe diameter, pipe wall thickness, pipe material, medium, and probe installation method to calculate the installation distance of the probe. After completing electrical connection and welding of the base, the probe and ball valve can be installed for on-site measurement.

Features:
- Online installation with pressure
- Positive, negative flow measurement and cumulative flow measurement
- 50,000 hours of trouble-free test
- Traffic statistics by period
- The life span of buttons is greater than 200,000 times
- For calibration and maintenance site without stopping production
- Applicable Fluid: Suitable for water, liquid without a lot of impurities, particles, suspended matter or air bubbles, and pipe measurement full of liquid
- Applicable Pipes: Carbon steel, stainless steel & PVC
- Applicable Industries: Tap water, sewage treatment, desalination, pure water, industrial circulating water, reclaimed water and cooling water

Specifications:
- Measuring Range: 1000m3/h
- Precision Grade: 1.0
- Compatible Pipes: DN50-1200mm
- Applicable Medium: Water or full-pipe non-stick flowing liquid without suspended particles
- Operating Pressure: 1.6MPa
- Working Temperature: -40 to 80℃

Technical Parameters & Options:
Model Selection Format: DCT1158W-A-B-C-D-E-F
DCT1158W:
- Item Name: Insertion Type Ultrasonic Flow Meter
- Installation Method: Wall Mounted
- Flow Range: 0 to ±5m/s
- Accuracy: ±1% of Measured Value
- Repeatability: 0.2%
- Power Supply: 10-36VDC or 10-24VAC, 1A Max.
- Communications Interface: RS-485, supporting for Modbus protocol
- Analog Output: 4-20mA, Max. Load 750Ω
- OCT Pulse Output: 0-50,000Hz
- Protection Level: IP65
- Ambient Temperature: -10℃ to 80℃
- Relative Humidity: 0-99%, no condensation
- Shell Material: ABS/PC Plastic
- Keyboard: 16 (4X4) Buttons
- Display: 20X2 Dot Matrix Characters

A: I/O Option
- 1: OCT frequency output, 4-20mA output & RS-485 communications interface
- E: GPRS function

B: Transmitter Shell
- 1: Shell: IP65, ABS/PC Plastic
- 2: Explosion-Proof Shell: Ex d II B T4

C: Sensor
- WS:
 Type: Normal Temperature Mini Insertion-Type Sensor
 Installation Way: Insertion
 Compatible Pipe Diameter: 50mm-600mm
 Sensor Cable Length: 9m
 Sensor Shell: Stainless Steel & PEI. Base: Carbon Steel. Ball Valve: Copper
 Operating Temperature: 0℃ to 50℃
- W:
 Type: Normal Temperature Insertion-Type Sensor
 Installation Way: Insertion
 Compatible Pipe Diameter: 400mm-1200mm
 Sensor Cable Length: 9m
 Sensor Shell: Stainless Steel & PEI. Base: Carbon Steel. Ball Valve: Copper
 Operating Temperature: 0℃ to 50℃
- WH:
 Type: High Temperature Insertion Type Sensor
 Installation Method: Insertion
 Compatible Pipe Diameter: 50mm-600mm
 Sensor Cable Length: 9m
 Sensor Shell: Stainless Steel & PEI. Base: Carbon Steel. Ball Valve: Copper
 Operating Temperature: -40℃ to 150℃

D: Sensor Explosion-Proof Level
- N: No
- 1: Ex d IIB T4

E: Cable Length
- 009: Standard Cable Length: 9m
- XXX: Sensor Cable Length: It can be prolonged by every 5m and up to 305m

F: Power Supply Converter
- 1: Not Needed
- 2: Needed (Input 220V, output 12V & load current 1A)

Package Included:
- 1 x Set of Insertion Ultrasonic Flow Meter

Note: Please tell us the type you want when purchasing. Thank you!
