INSTINCT-NX V6 3-in-1 NS Chip OLED V6 Chip OLED Mod Chip Suitable for Raspberry Pi NS DIY Projects
Description:

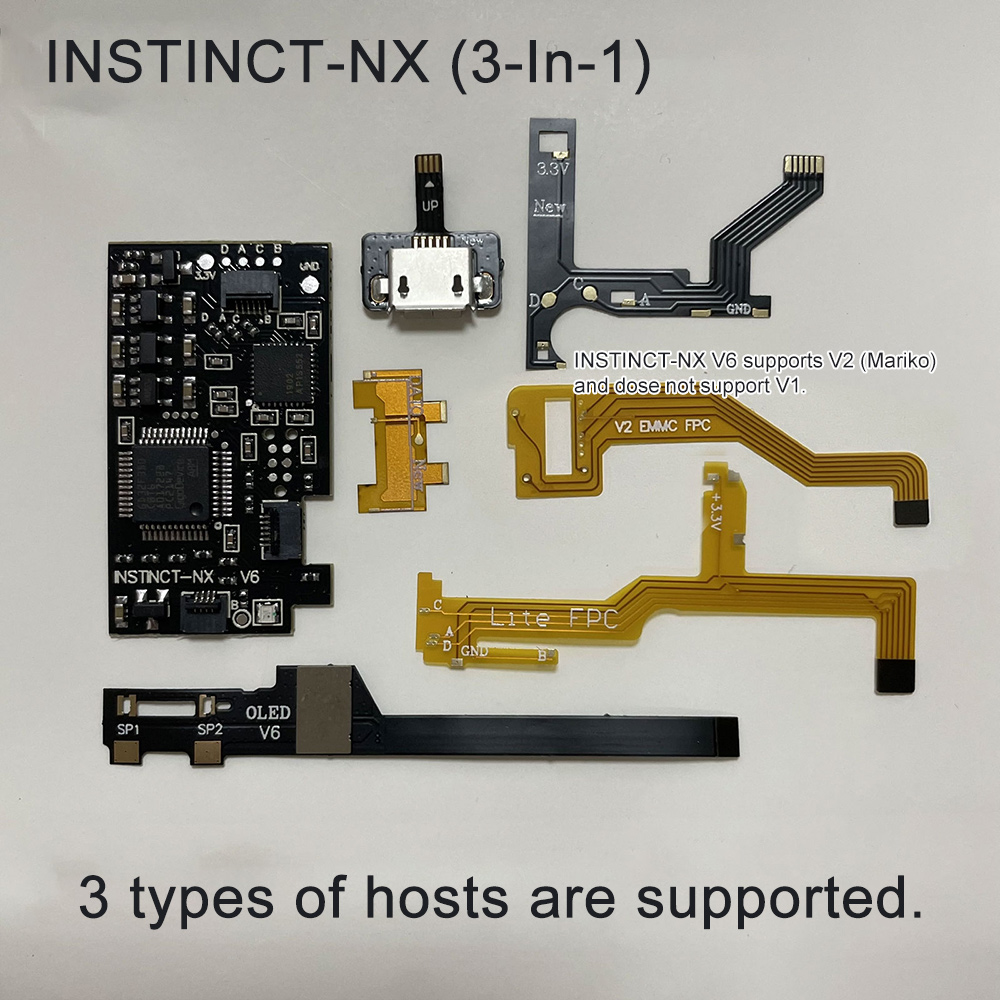

The INSTINCT-NX V6 supports V2 (Mariko), while it does not support V1. Furthermore, three types of hosts are supported.
Package Included:

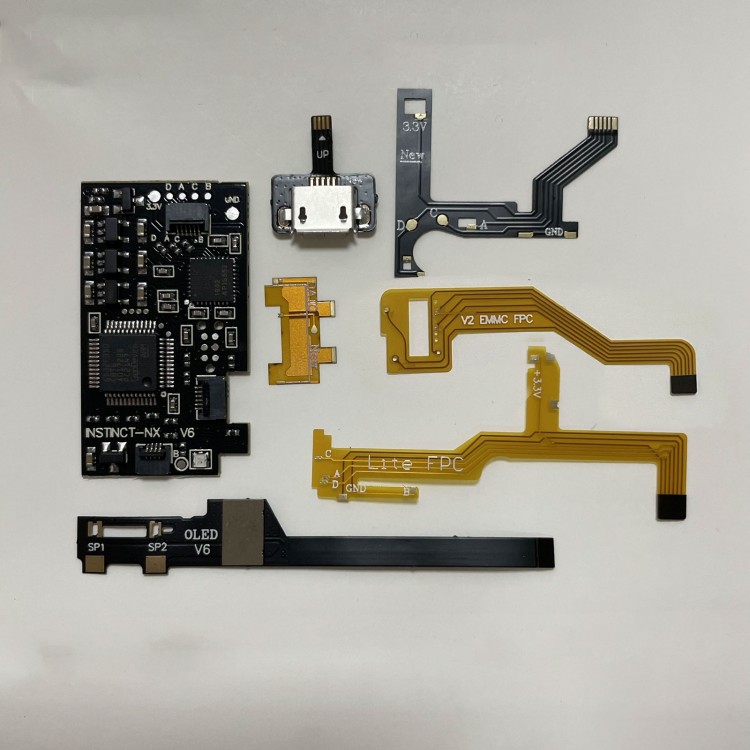

- 1 x Set of INSTINCT-NX V6
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
How to connect Raspberry Pi to a computer:
Press and hold the BOOT button, insert a Micro USB to copy firmware into the RPI-RP2 disk (firmware is included by default, so users do not need to copy the firmware again).
Fault Description of INSTINCT-NX Chip LED Indicator Lights:

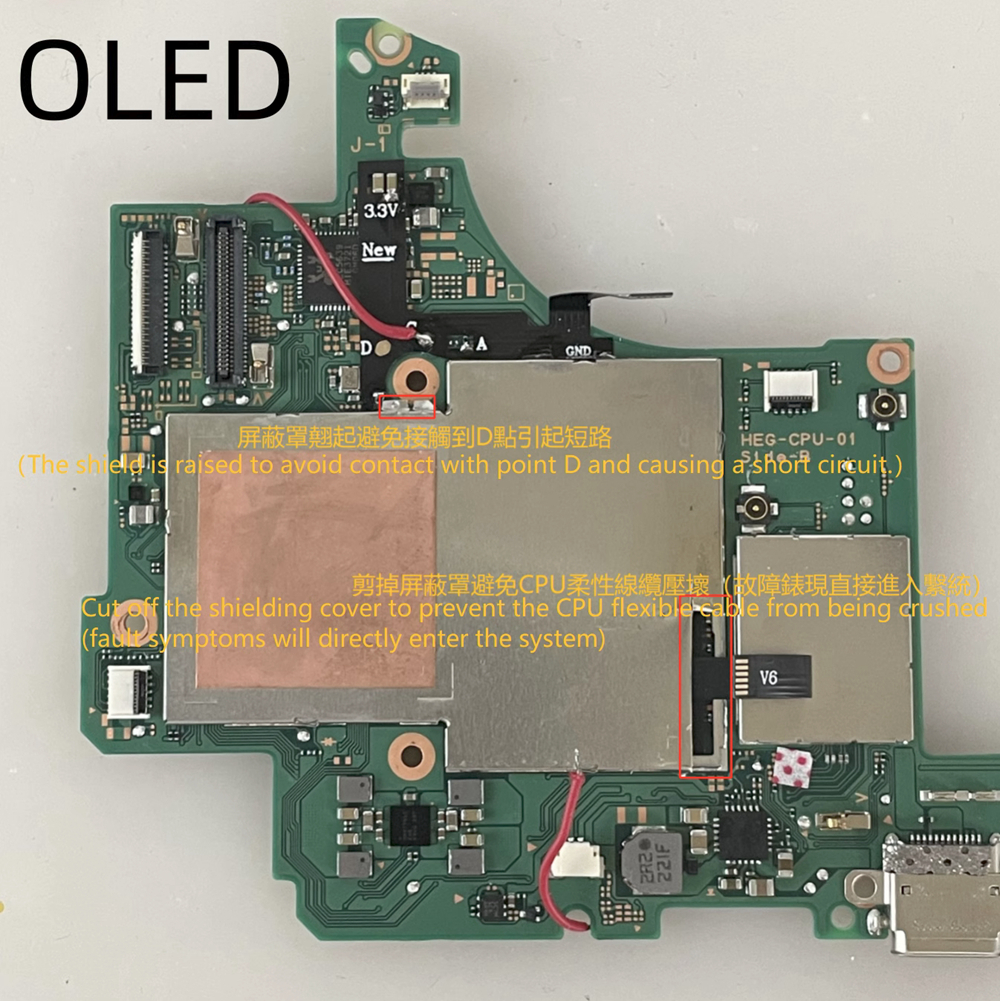

- White light flashes 15 times: CMD, CLK and RST are not connected (Check points A, D and B).
- Red light flashes 5 times: DAT0 is not connected (Check point C).
- Blue light flashes 3 times: CPU is not connected.
- White light stays on for 5 seconds: CMD is not connected (Check point A). It is usually uncommon in emmc for SK hynix.
