Product Description:
- GL2100 is a new generation LoRaWAN gateway,long distance communication,compact structure,low power,strong function.
- Wide application:environmental monitoring,intelligent agriculture,engineering monitoring,mobile asset management,mart city.GL2100 supports GPRS uplink.
Specification:
- Mode:GL2100
- Uplink interface:GSM/GPRS
- Cloud service:IntoYun
- Power voltage:9-48V DC
- Power interface type:1:DC power socket compatible with 55x2.1mm/55x2.5mm DC power plug; 2:Plug-in type 5.08 spacing power plug
- Frequency band:850/900/1800/1900MHz
- Protocol:TCP/IP data code format CS1/CS2/CS3/CS4
- LoRa band:433MHz+/-5MHz
- LoRa transmitter power:2-20dBm
- LoRa interface:SMA RF interface external screw inner hole
- Wifi interface:/
- GSM/GPRS:SMA RF interface external screw inner hole
- Debug interface:MICRO USB interface

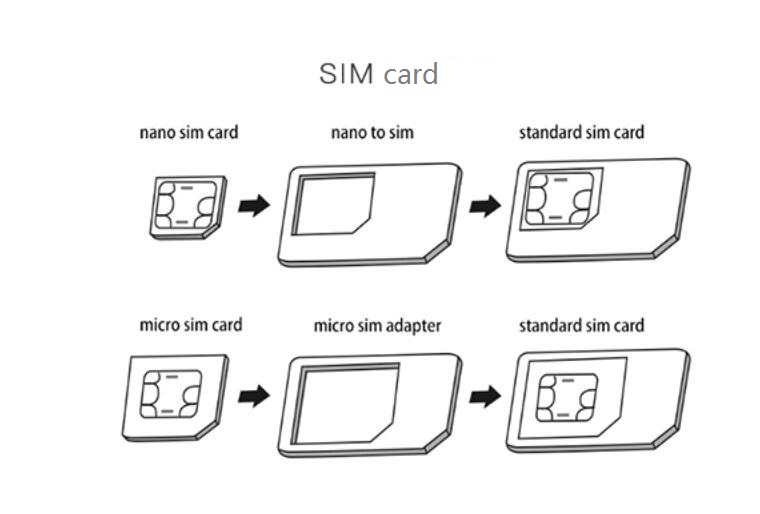

- SIM interface:drawer style standard cassette
- Wifi security mechanism:/
- Wifi encryption type:/
- Upgrade firmware:UART Download/OTA
- Network protocol:TCP/UDP/MQTT

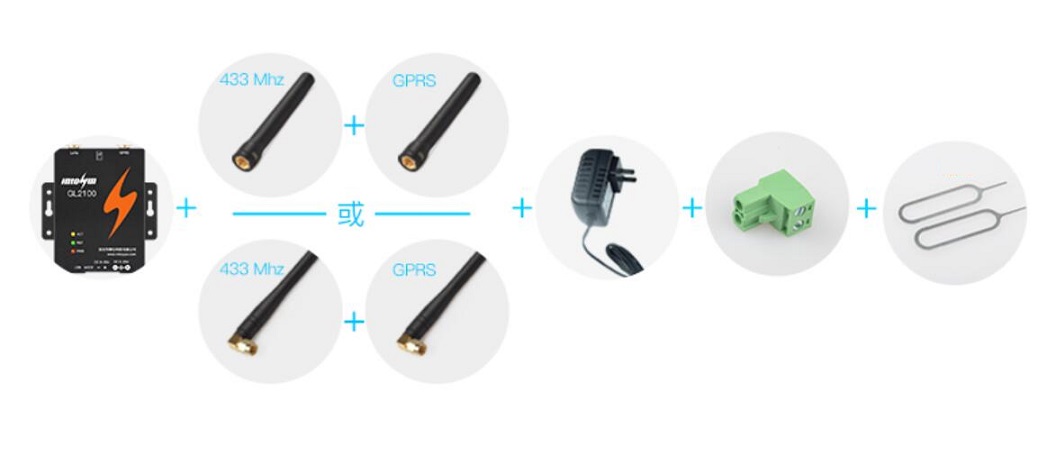

Package List:
- 1 x GL2100 Gateway
- 2 x Antenna
- 1 x 12V Power adapter
- 1 x 5.04mm Power connector
- 2 x Pin for retrieving card
