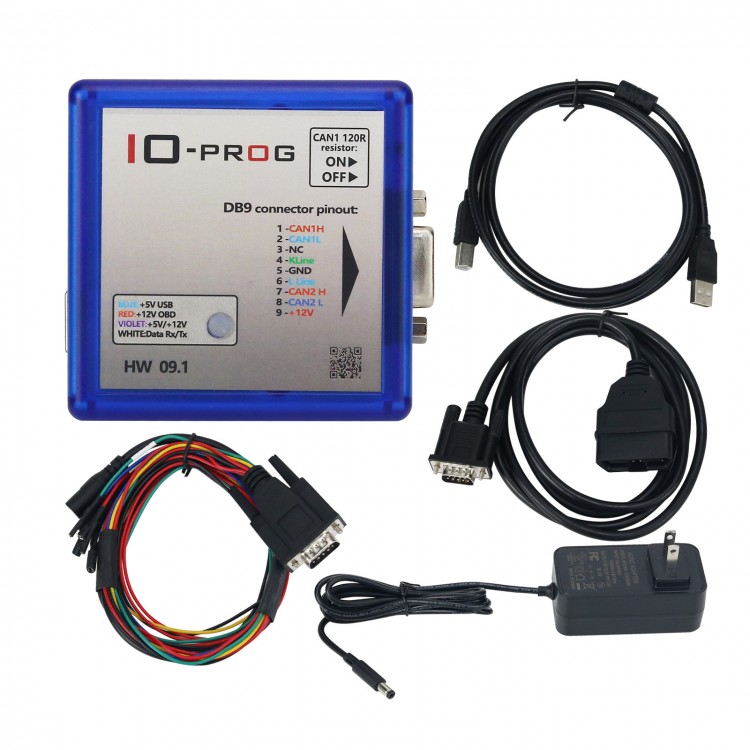

IO Terminal ECU Programmer DB9 Connector Pinout Accessory

IO Terminal ECU Programmer DB9 Connector Pinout Accessory

Description:
- I/O Terminal is a software and hardware solution designed for work with a great number of ECUs, automatic transmissions, BSI installed in VAG, and vehicles such as for Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar, Land Rover, Lancia, Maseratti, Hyundai, Kia and Daewoo using the OBD-II data link connector.

I/O Terminal Advantages:
- Combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device
- Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link
- Checksums testing and correction. Safe reading and flashing

Licensing:
- The software is marketed on a module basis. Each module is a separate program which functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some license can be recorded on one card, others require separate recording.

Note:
- Purchased licenses please contact your suppliers. Now, basic edition only with ecu licenses for OPEL. All licenses will be activated in future.

BASIC PACKET: MULTITOOL + ECU LICENSE FOR OPEL/GM

MULTITOOL FOR OPEL/GM ECU:
- Reading/writing of ECUs for OPEL/GM by CAN (OBD or wired on the bench). Also software has boot-pin recovery mode.

Supported ECU types for OPEL/GM:
- For ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- For ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- For ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- For ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- For ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- For ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- For DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
- For DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
- For DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)
- For ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
- For ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
- For ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- For ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- For ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- For ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
- For ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);
- EEPROM DUMP VIEWER, EDITOR.

PAY UP Licenses: You can add new licenses by device ID, and activate on the internet.

For SIEMENS:
- For PEUGEOT, CITROEN, VOLVO, FORD, VAG, JAGUAR, DAE WOO, OPEL. EEPROM reading/writing; pin-code reading; ECU virginizing; service history (DATE/MILEAGE/DIADEVID) reading/modifying. All operations are done through Kline or CAN bus without opening the ECU.

Supported ECUs:
- For BMW  Mini/Rover Siemens  EMS
- For BMW  Mini/Rover Siemens  EMS2
- For BMW  Mini Siemens  EMS5150
- For DAE WOO SIEMENS/KEMSCO  D3
- For KIA/HYUNDAY Siemens SIMK31
- For KIA/HYUNDAY Siemens SIM2K - 34VR
- For OPEL SIMTEC 70
- For OPEL SIMTEC 71
- For OPEL SIMTEC 71.1
- For Ford Siemens SID802  ECU Tool
- For Ford Siemens SID803  ECU Tool
- For Ford Siemens SID803A  ECU Tool
- For Ford Siemens SID804  ECU Tool
- For Ford SIEMENS/CONTINENTAL EMS2101 – included in MULTITOOL SOFT WARE
- For Ford SIEMENS/CONTINENTAL EMS2102 – included in MULTITOOL SOFT WARE
- For Ford SIEMENS/CONTINENTAL EMS2103 – included in MULTITOOL SOFT WARE
- For Volvo Siemens  EMS2000
- For Volvo Siemens SID803ECU Tool
- For Volvo Siemens SID803A ECU Tool
- For PSA  ECU  Detect
- For PSA Siemens SID 201
- For PSA Siemens SID 801  ECU Tool
- For PSA Siemens SID 801A  ECU Tool
- For PSA Siemens SID 802  ECU Tool
- For PSA Siemens SID 803  ECU Tool
- For PSA Siemens SID 803A  ECU Tool
- For PSA Siemens SID 804  ECU Tool
- For PSA Siemens SID 805  ECU Tool
- For PSA Siemens SID 806  ECU Tool

For MARELLI+MARELLI2:
- Reading/writing, pin-code reading, mileage changing of Opel ECUs (Z13DT, Z13DTJ, Z13DTH) by OBD or on bench (6JO, 6O2, 6O3 ECUs). For Fiat ECUs 8F2, 8F3, 8DF, 8GMF HW502, 8GMF HW503, 8GMW, 8GSF, 8GSW, 6JF, 6F3, IAW 5SF8, IAW 5SF3, IAW 5SF9, IAW5NF, IAW5SF.XX, IAW5SF4, IAW 4AF.

Supported ECUs and functions:
- For SUZUKI – 8DS CAN – MPC5565 R/W – 95640 R/W
- For SUZUKI – MJD 6O2 KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W
- For OPEL – MJD 6JO KLINE – MPC555 R/W – 95320 R/W
- For OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W
- For OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W
- For OPEL – MJD 6O3 CAN – MPC563 R/W – M58BW016DB R/W – 95320 R/W
- For FIAT – MJD 9DF CAN – SPC5644 R/W – 95128 R/W
- For FIAT – 8GMK CAN – SPC564A80B4 R/W – 95640 R/W
- For FIAT – IAW 9GF CAN – SPC564A70L7 R/W – 95640 R/W
- For FIAT – 8GSF CAN – MPC5565 R/W – 95640 R/W
- For FIAT – 8GSW CAN – MPC5565 R/W – 95640 R/W
- For FIAT – 8FMW CAN – MPC5565 R/W – 95128 R/W
- For FIAT – 8GMF HW03 CAN – MPC5565 R/W – 95640 R/W
- For FIAT – 8GMF HW02 CAN – MPC5553 R/W – 95640 R/W
- For FIAT – MJD 8DF KLINE – MPC5553 R/W – 95640 R/W
- For FIAT – MJD 8F2 CAN/KLINE – MPC5565 R/W – 95640 R/W
- For FIAT – MJD 8F3 CAN/KLINE – MPC5565 R/W – 95640 R/W
- For FIAT – IAW 7GF CAN/KLINE – MPC5565 R/W – 95640 R/W – included in MULTITOOL software
- For FIAT – IAW 5SF.XX KLINE – ST10F280 R/W
- For FIAT – IAW 5SF3 CAN/KLINE – ST10F280 R/W
- For FIAT – IAW 5SF4 KLINE – ST10F296 R/W
- For FIAT – IAW 5SF8 CAN/KLINE – ST10F296 R/W
- For FIAT – IAW 5SF9 CAN/KLINE – ST10F296 R/W
- For FIAT – IAW 4AF HW204 KLINE – ST10F168 R/W – 95160 R/W
- For FIAT – IAW 4AF HW407 KLINE – ST10F269 R/W – 95160 R/W
- For FIAT – IAW 59F <HW100 KLINE – 29F200BB R/W – 95080 R/W
- For FIAT – IAW 59F HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W
- For FIAT – IAW 59F HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W
- For FIAT – IAW 5AF HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W
- For FIAT – IAW 5AF HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W
- For FIAT – IAW 5NF.T1/5NF.T9 KLINE – MC68F375 R – 95160 R/W
- For FIAT – MJD 6JF KLINE – MPC555 R/W – 95320 R/W
- For FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W
- For FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W
- For FIAT IAW 10GF MPC5642 FLASH+95640 EEPROM R/W
- VAG IAW 9GV MPC5634 FLASH+95320 EEPROM R/W

For DENSO:
- Reading/writing(64F7055, 64F7058, 64F7059 microcontrollers). FULL FLASH reading/writing; EEPROM reading/writing (usually). All operations are done via K-LINE or CAN by OBD or wired on the bench without opening the ECU. On some ECUs there are some extra functions like odometer calibration, pin-code extraction and reset (virgin). Also software has FLASH memory CRC calculator.

ECUs supported:
- For OPEL MERIVA, CORSA C 1.7 CDTI HYBRID ECU. Full R/W 64F7055, R/W 93C66 eeprom, show pincode, reset(virgin). (CAN & K-LINE)
- For OPEL VECTRA C/SIGNUM 3.0 CDTI. Full R/W 64F7058, R/W 93C86 x2 eeprom, show pincode, odometer calibration, reset(virgin). (CAN)
- For OPEL 1.7CDTI 110CV/125CV Z17DTJ/Z17DTR/Z17DTH/A17DTH/A17DTR ASTRA H/ASTRA J/ ZAFIRA B/CORSA D/MERIVA B/TIGRA B. Full R/W 64F7058, R/W 93C86 x3 eeprom, odometer calibration, show pincode , reset (virgin). Full R/W 64F7059, R/W 93C86 x4 eeprom, odometer calibration, show pincode , reset (vir-gin). (CAN)
- For MAZDA 3/5/6 RF7 ECU. Full R/W 64F7058, R/W 93C86 eeprom. (CAN)
- For MAZDA 2 1.5 from year 2010. Full R/W 64F7058, R/W 93A56 eeprom. (CAN)
- For MAZDA 6 2.2TD R2AC. Full R/W 64F7058, R/W 93C86 eeprom. (CAN)
- For MAZDA RX8 . Full R/W 64F7055, R/W 93C56 eeprom. (CAN)
- For NISSAN NAVARA/PATHFINDER 2.5DCI 2005-2009. Full R/W 64F7058, R/W 93C86 eeprom. (CAN)
- For NISSAN NAVARA/PATHFINDER D40 2.5DCI from 2010. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)
- For MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID till year 2009. Full R/W 64F7058, R/W 93C86 eeprom. (CAN)
- For MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID from year 2009. Full R/W 64F7059, R/W 93C86 eeprom. (CAN)
- For MITSUBISHI DELICA D5/OUTLANDER 2.2DID 4N14 from year 2009. Full R/W 64F7059, R/W 93C86 eeprom. (CAN)
- For SUBARU FORESTER 2.0D KH. Full R/W 64F7058, R/W 93C86 eeprom. (CAN)
- For SUBARU OUTBACK 2.0DNG. Full R/W 64F7059, R/W 93C86 eeprom. (CAN)
- For SUZUKI 1.3/1.5/1.6. Full R/W 64F7058, R/W 93A56 eeprom. (CAN)
- For SUZUKI <2007 1.3/1.5/1.6. Full R/W 64F7055, R/W 93A56 eeprom. (CAN)
- For SUZUKI JIMNY <2007 1.3  Full R/W 64F7055, R/W 93A56 eeprom. (CAN)
- For Volvo V50/S40/V40 2006-2010 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)
- For Volvo V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)
- For Volvo V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7055 , full R/W external flash 29LV200BC ,R/W 93C56 eeprom. (CAN)
- For Volvo S80/XC90 4.4L V8 2007-2010 full R/W 64F7058,R/W 93A86 eeprom. (CAN)
- For JAGUAR/LANDROVER P3.0NA / JAGUAR XF 4.2SC full R/W 64F7058,R/W 93A86 eeprom. (CAN)
- For JAGUAR S-TYPE 4.2 V8 V8SC full R/W 64F7058,R/W 93A86 eeprom. (CAN)

For FIAT BSI:
- EEPROM reading/writing, showing the pincode stored in BSI. Tool works by OBD or on the bench.

BSIs supported:
- For Magneti Marelli with Freescale MCU 3K91D,1k79X (R/W EEPROM SHOW);
- For Magneti Marelli with NEC MCU 70F3237,70F3378 (R/W EEPROM SHOW PIN);
- For Siemens Continental Freescale MCU 9S12DG128  (R/W EEPROM SHOW PIN).

Vehicles with Freescale 3K91D,1k79X MCUs:
- For Alfa Romeo: 147, GT
- For Fiat: Stilo (1999-2007), Palio (1999-), Idea
- For Lancia: Thesis, Ypsilon
- For Maserati: Quattroporte, Granturismo

Vehicles with Freescale 70F3237,70F3378 MCUs:
- For Fiat: Bravo (2007-), Ducato (2006-), Stilo (2007-), Punto (2007-)
- For Lancia: Ypsilon (2007-)

Vehicles with Freescale 9S12DG128 MCUs:
- For Fiat: Panda (2003-)

MOTORCYCLE:
- FULL FLASH reading/writing, DUCATI BIKES ECUS for CONTINENTAL. All operations done by CAN.

ECUs supported:
- For CONTINENTAL M3C with freescale 9S12XDP256 mask 1L15Y;
- For CONTINENTAL M3C with freescale 9S12XET256 mask 2M53J.
- For VAGDSG+EASYTRONIC
- For TEMIC DQ250 MPC555+95160 KLINE
- EEPROM 95160 R/W, MPC555 FLASH R/W

For VAGDSG+EASYTRONIC:
- For TEMIC DQ250 MPC555+95160 KLINE
- For EEPROM 95160 R/W, MPC555 FLASH R/W

For BOSCH:
- Reading/writing.

Supported ECUS and functions:
- For BMW EDC15C4 KLINE -29F400BT R/W – 95P08 R/W
- For LAND ROVER EDC15C4 KLINE -29F400BT R/W – 95P08 R/W
- For SMART ME7.7.0 KLINE – ST10F275 R/W – 95080 R/W
- For SMART EDG15C-5.X KLINE – 29F400BT R/W – 95P08 R/W
- For OPEL EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W
- For OPEL ME7.6.1/ME7.6.2 KLINE – ST10F275 R/W – 95080 R/W – Reset(Virgin) – Change ODO
- For OPEL ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgin) – Change ODO
- For OPEL ME7.6.1/ME7.6.2 KLINE -29F800BB – 95080 R/W – Reset(Virgin) – Change    ODO
- For OPEL ME1.5.5 KLINE -29F400BB – 95080 R/W – Reset(Virgin)
- For VOLVO EDC16C31 CAN (29bit) – M58BW016DB R/W – 95320 (until year 2008) (XC90 until year 2012)
- For VOLVO EDC16C34 CAN (29bit) – M58BW016DB R/W – 95160 (V50,S40,C30 until year 2008) (1.6L)
- For VOLVO ME9.0 CAN (29bit) – M58BW016DB R/W – 95080 (V50 until year 2008)
- For VOLVO ME7.0/ME7.0.1  CAN( 500 kbps) – 29F800BB R/W – 95080 R/W – CKS
- For VOLVO ME7.0/ME7.0.1  CAN(250 kbps) – 29F800BB R/W – 95P08 R/W – CKS
- For VOLVO EDC15C11 CAN(250kbps/500kbps)/KLINE – 29F400BT R/W – 95P08 R/W
- For VOLVO EDC15C3 KLINE – 29F400BT R/W – 95P08 R/W
- For JEEP/CHRYSLER EDC15C5 KLINE – 29F400BT R/W – 95P08 R/W
- For MB EDC15C6 KLINE – 29F800BT R/W – 95P08 R/W
- For HONDA ME7.9.3 KLINE – 29F800BB R/W – 95040 R/W
- For HONDA EDC15C7 KLINE -29F400BT R/W – 95P08 R/W
- For TOYOTA EDC15C9 KLINE -29F400BT R/W – 95P08 R/W
- For TOYOTA ME7.9.5 KLINE – ST10F275 R/W – 95040 R/W
- For TOYOTA ME7.9.51 KLINE – ST10F275 R/W – 95040 R/W
- For TOYOTA M7.9.5 KLINE – ST10F275 R/W – 95040 R/W
- For TOYOTA M7.9.52 KLINE – ST10F275 R/W – 95160 R/W
- For FIAT ME7.3.1 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin)
- For FIAT ME7.3.H4 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin) – Change ODO – Change Flash Counter
- For FIAT ME7.9.10 KLINE – ST10F275 R/W – 95160 R/W – Reset(Virgin)
- For FIAT ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgi
- For FIAT EDC15C7 KLINE -29F400BT R/W – 95P08 R/W
- VAG ME7.5 KLINE – 29F400BB R/W – 95040 R/W
- VAG ME7.5-1M KLINE – 29F800BB R/W – 95040 R/W
- VAG ME7.5.10 KLINE – 29F400BB R/W – 95040 R/W
- VAG ME7.5.20 KLINE – ST10F275 R/W – 95040 R/W
- VAG MED7.5.11 KLINE – 29F800BB R/W – 95040 R/W
- VAG EDC15P+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W
- VAG EDC15VM+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W
- For PSA M7.4.4 KLINE – 29F400BB R/W – 95080 R/W
- For PSA ME7.4.4 KLINE – 29F400BB R/W – 95160 R/W – Reset(Virgin)
- For PSA ME7.4.5 KLINE – ST10F275 R/W – 95320 R/W – Reset(Virgin)
- For PSA EDC15C2 1XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W
- For PSA EDC15C2 3XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W
- For KIA EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W
- For KIA/HYUNDAY KEFICO/BOSCH M(G)7.9.8 KLINE – ST10F275 R/W – 95160 R/W
- For HYUNDAY BOSCH/KEFICO ME7.9.0 KLINE – 29F400BB R/W – 95040 R/W

For VOLVO:
- Reading/writing of various modules used in cars for Volvo.

Supported Modules and functions:
- Dashboard cpu mask 1M80F flash+eeprom R/W  – 11bit/500kbit CAN
- Dashboard cpu mask 1M80F flash+eeprom R/W  – 11bit/125kbit CAN
- Dashboard cpu mask 1K78X flash+eeprom R/W  – 11bit/ 125kbit CAN
- Dashboard cpu mask 1H56A eeprom R/W  – 29bit/125kbit CAN
- Dashboard cpu mask 4F73K flash+eeprom R/W  – 29bit/ 125kbit CAN
- Dashboard cpu mask 3K91D flash+eeprom R/W  – 29bit/125kbit CAN
- Dashboard cpu mask 0L85D flash+eeprom R/W  – 29bit/ 125kbit CAN
- Dashboard cpu mask 3L16Y flash+eeprom R/W  – 29bit/ 125kbit CAN
- ICM 64F7055 flash R/W  – 29bit/ 125kbit CAN
- ICM MAC7116 flash+dataflash R/W  – 29bit/125kbit CAN
- ICM MAC7116 flash+dataflash R/W  – 11bit/125kbit CAN
- Read view mirror  cpu mask 0K75F flash+eeprom R/W  – 29bit/125kbit CAN
- Read view mirror  cpu mask 3L40K flash+eeprom R/W  – 29bit/125kbit CAN
- Read view mirror  cpu mask 0L85D flash+eeprom R/W  -29bit/ 125kbit CAN
- EPS XC164CS flash+eeprom(25L160) R/W  – 11bit/500kbit CAN
- Airbag for Bosch CR16MCS9 eeprom R/W -29bit/ 125kbit CAN
- Airbag for TEMIC/CONTINENTAL  cpu mask 1L40K flash+eeprom R/W  – 29bit/125kbit CAN
- Airbag for TEMIC/CONTINENTAL  cpu mask 1L15Y flash+eeprom R/W  – 11bit/125kbit CAN
- For PHM (Phone module) Autoliv  29F800BB flash R/W  – 29bit/ 125kbit CAN
- For PHM (Phone module) Autoliv  AM29DL162DT flash R/W  – 29bit/ 125kbit CAN
- CCM (Climate control module)  Alps 28F200 flash R/W  – 29bit/ 125kbit CAN
- CCM (Climate control module)  Alps 29F200BB flash R/W  – 29bit/ 125kbit CAN
- CCM (Climate control module)  Alps 1K79X flash+eeprom R/W  – 29bit/ 125kbit CAN
- CCM (Climate control module)  Alps MAC7111 flash+dataflash R/W  – 11bit/125kbit CAN
- CCM (Climate control module)  Alps MPC5516 flash R/W  -11bit/ 125kbit CAN

MULTITOOL For PSA BSI:
- For Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;
- For Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASH R/W;
- For Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;
- For Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;
- For Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;
- For Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;
- For Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W;
- For Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W;
- For Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX); EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W.

MULTITOOL FOR SMART SAM:
- 3L80R (MC9S12B128) CAN , EEPROM R/W, FLASH R/W;
- 0L01Y (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W;
- 2K79X (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W.

MULTITOOL FOR FIAT BSI2:
- Reading/writing for FIAT, FORD, PSA BSI modules made by brand for DELPHI. Also software extracts PIN CODE and shows KEY PREPARATION DATA from the EEPROM dump or data flash dump.

Supported BSI types for DELPHI:
- For FIAT DELPHI BSI 70F3237+93C86 CAN. EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3237 FLASH R/W;
- For FIAT DELPHI BSI 70F3379+93C86 CAN. EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W;
- For FIAT DELPHI BSI 70F3632/70F3633 CAN. 70F3632/70F3633 DATA & PROGRAM FLASH R/W, show PIN, show KEY preparartion data;
- For FIAT DELPHI BSI 70F3556 CAN. 70F356 DATA & PROGRAM FLASH R/W;
- For FFIAT DELPHI BSI 70F3557 CAN. 70F357 DATA & PROGRAM FLASH R/W;
- For FFORD DELPHI BSI 70F3379+93C86 CAN. EEPROM 93C86 R/W ,show PIN, show
- KEY preparartion data. 70F3379 FLASH R/W.
- For FFIAT CONTINENTAL BSI MPC5606 CAN. MPC5606 DATA & PROGRAM FLASH R/W.

MULTITOOL FOR OPEL BCM:
- Reading/writing of BCM modules for FORD made by brand for DELPHI, CONTINENTAL/SIEMENS

Supported BCM types:
- For FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN. 9S12DT256 EEPROM R/W, 9S12DT256 FLASH R/W;
- For FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN. 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W;
- For FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN. 70F3384/70F3637 DATA & PROGRAM FLASH R/W;
- For FORD CONTINENTAL BCM MPC5607 CAN. MPC5607 DATA & PROGRAM FLASH R/W;
- For FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W;
- For FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PRO-GRAM FLASH R/W.
- For FORD LEAR BCM SPC560B64+95320. SPC560B64 DATA & PROGRAM FLASH R/W.EEPROM 95320 R/W.
- For FORD LEAR BCM MC9S12XEP768. MC9S12XEP768 DATA & PROGRAM FLASH R/W.
- For FORD LEAR BCM V2 MC9S12XEP768. MC9S12XEP768 EEPROM+DATA FLASH &PROGRAM FLASH R/W.
- For FORD TEMIC BCM MC9S12XD256. MC9S12XD256 EEPROM + PROGRAM FLASH R/W.
- For FORD TEMIC BCM MC9S12DG256. MC9S12DG256 EEPROM + PROGRAM FLASH R/W.

MULTITOOL FOR OPEL/GM TCM:
- Reading/writing for OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

For OPEL/GM TCM types:
- TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90
- FULL M58BW016DB FLASH R/W. CAN (OBD).

MULTITOOL FOR OPEL/GM EPS:
- Reading/writing of EPS modules for OPEL/GM via CAN (OBD or wired on the bench).

Support for OPEL/GM EPS types:
- For EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).

For FCARFHUBLIC00001:
- For FCA (for Fiat Chrysler Automobiles) RFHUB/RFHM Keyless modules
- For CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 11-bit system)
- For CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 29-bit system)

MULTITOOL FOR FORD/BCM:
- Reading/writing of modules for FORD BCM made by brands for DELPHI, CONTINENTAL/SIEMENS

Supported BCM types:
- For FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN. 9S12DT256 EEPROM R/W, 9S12DT256 FLASH R/W;
- For FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN. 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W;
- For FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN. 70F3384/70F3637 DATA & PROGRAM FLASH R/W;
- For FORD CONTINENTAL BCM MPC5607 CAN. MPC5607 DATA & PROGRAM FLASH R/W;
- For FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W;
- For FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PRO-GRAM FLASH R/W.
- For FORD LEAR BCM SPC560B64+95320. SPC560B64 DATA & PROGRAM FLASH R/W.EEPROM 95320 R/W.
- For FORD LEAR BCM MC9S12XEP768. MC9S12XEP768 DATA & PROGRAM FLASHR/W.
- For FORD LEAR BCM V2 MC9S12XEP768. MC9S12XEP768 EEPROM+DATA FLASH &PROGRAM FLASH R/W.
- For FORD TEMIC BCM MC9S12DG256. MC9S12DG256 EEPROM + PROGRAM FLASH R/W.
- FORD TEMIC BCM MC9S12XD256. MC9S12XD256 EEPROM + PROGRAM FLASH R/W.

MULTITOOL FOR VOLVO CEM P3:
- For VOLVO DELPHI CEM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.
- For VOLVO DELPHI CEM R5F64524/R5F64525. R5F64524/R5F64525 DATA &PROGRAM FLASH R/W. In order to use need PINCODE.
- For VOLVO DELPHI CEM REVB. R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
- For VOLVO LEAR BCM SPC560B60/SPC560B64+95320. SPC560B60/SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PIN-CODE.
- Possible activation on simcard for VOLVO.

MULTITOOL FOR VOLVO CEM P2:
- For VOLVO DELPHI CEM L M30835F+93C86. M30835F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.
- For VOLVO DELPHI CEM L M30855F+93C86. M30855F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.
- Possible activation on simcard for VOLVO.

WEBASTOLIC000001 (activation/simcard):
- For FORD/LAND ROVER/VOLVO AHCM/CPM TTV/TTVEVO WEBASTO CONTINENTAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

FOMOCOKVMLIC000001 (activation/simcard):
- For VOLVO P3/FORD/JAGUAR KVM (Keyless Vehicle Module) SIEMENS/CONTINENTAL 9S12DG256.  9S12DG256 FLASH R/W, EEPROM R/W.

OPELPIMLIC000001 (activation/simcard):
- For OPEL/GM Drive motor power inverted module
- For ACDELCO S95 with 1xMPC5566 and 3xMPC5565 microcontrollers (FLASH+EMULATED EEPROM ZONEs, reading and writing of PIM/TPIM (Drive motor power inverter module)

Package Included:
- 1 x I/O Terminal
- 1 x Power Adapter
- 1 x Set of Cables
