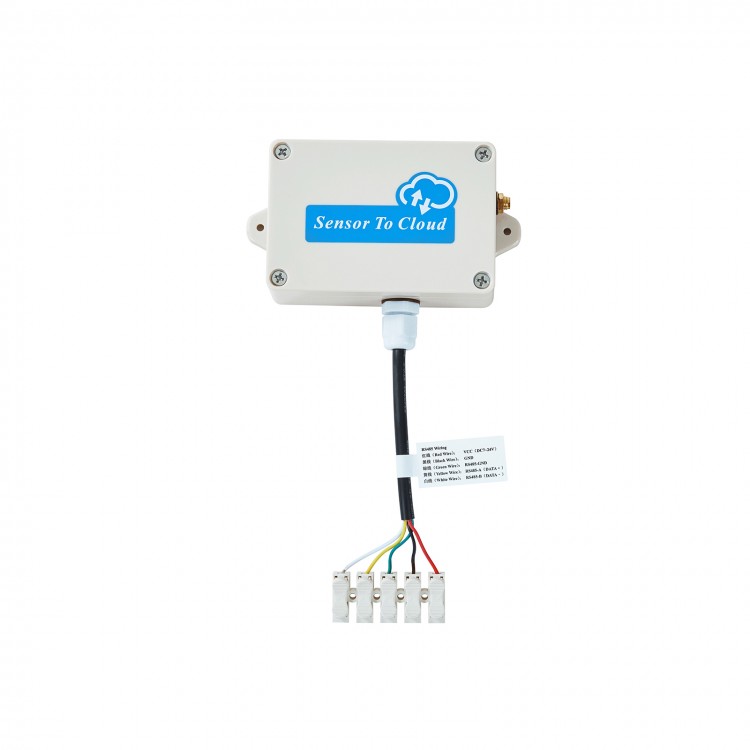

IOT100 IoT Sensor RS485 Serial Port w/ Waterproof Shell For Modbus RTU Over TCP 2G Communication

IOT100 IoT Sensor RS485 Serial Port w/ Waterproof Shell For Modbus RTU Over TCP 2G Communication

Description:
This product is small and exquisite, with powerful functions, you can choose the normal working mode or ultra-low power consumption working mode according to your needs. When finished product is connected to the sensor, it can monitor and collect data, remote control and abnormal alarm notification through SMS, phone, network, WeChat, Web terminal, cloud platform, etc., and can also be used for secondary development when PCBA module is embedded in a third-party motherboard, which is convenient for traditional sensors, instruments, etc. quickly connected to IoT.

I/O Type:
1-way RS485 serial port, can be connected to RS485 instruments that support for Modbus RTU

Features:
- Communication protocol: For Modbus RTU Over TCP
- Housing: waterproof shell
- 2 working modes are optional: (1) Normal mode: data is communicated in real time, allowing users to know on-site situation in time; (2) Low power consumption mode: ultra-low power consumption design (less than 230uA), suitable for places where data is collected periodically
- Support setting parameters and viewing real-time data through SMS, computer configuration software, cloud platform;
- Support 10 user numbers, each number can be set individually to receive specific alarm messages and alarm calls;
- Support 10 timers, you can set timing restart, timing report, timing online, timing offline, etc .;
- Support 2 different server centers, can set IP address or domain name;
- Support for Modbus RTU Over TCP protocol or data transparent transmission;
- Perfect data reissue mechanism to ensure that each piece of data is uploaded to server effectively;
- 32M-bit cache capacity, can cache up to tens of thousands of historical data;
- Wide working voltage design, support 7-24VDC power supply, and with anti-reverse protection;
- Built-in clock chip and super capacitor to ensure long-term timing after power failure;
- Support for Nano-SIM mobile phone card, support PIN code verification function to ensure the safety of the card.

Package Included:
- 1 x Set of IOT100
