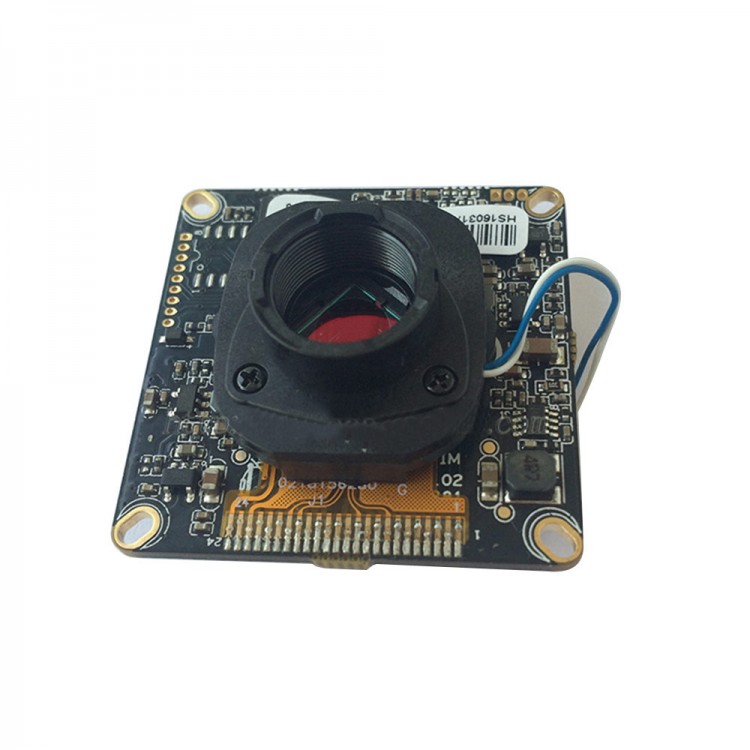

IP Camera Module 1.3 Mage CMOS Cam 960P Audio Monitor Module 3518EV200+H81 Chip

IP Camera Module 1.3 Mage CMOS Cam 960P Audio Monitor Module 3518EV200+H81 Chip

Features:
- Resolution: 960P
- 1/3 "1.3 CMOS Mage IP Camera
- Integration IR-CUT day and night to switch
- Master control Hi3518EV200, maximum 960P real time video coding output
- 1* photosensitive resistor interface, 1*IR-CUT driver interface (has been connected with the IR-CUT)
- 1* Ethernet interface (10/100M adaptive), 12V 1*DC power input interface
- 38mm*38mm single board

Firmware address: Click here

Specification:
- System: RTOS design, dual core 32bit DSP(Hi3518ev200)
- Sensor: 1.3MP  1/3 " h81 CMOS color: 0.01Lux @F1.2 black and white 0.001 Lux@f1.2
- Video: H.264 video encoding,support double stream,AVI format, support stream 0.1M-6M adjustable,support 1-30frame/s adjustable
- Image output: Main stream: 1280*960, 1280*720, SUB 704*576
- Shutter: 1/50 (1/60)-1/10,000s
- Lens: NO
- Support IR-CUT
- Support 2D/3D noise reduction
- Support digit wide dynamic
- 1*RJ45 Ethernet interface, 10/100M self adaptive,support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
- 1*photosensitive resistor interface, 1*IR-CUT driver interface (has been connected with the IR-CUT)
- SD card: Not support
- Support OSD, mobile detection,mobile alarm center alert;screen pop-up linkage,support MJPEG,support remote supervision software,MYEYE
- Support ONVIF protocal
- Support phone monitoring
- Size: 38*38mm

Package List:
- 1 x IP Camera module
