IP Camera Tester HD CCTV Tester w/ 4" IPS Touch Screen Support 8MP TVI/ 8MP CVI/ 8MP AHD V6-ADH

IP Camera Tester HD CCTV Tester w/ 4" IPS Touch Screen Support 8MP TVI/ 8MP CVI/ 8MP AHD V6-ADH

Basic Functions:
- Size & Display resolution: 4" IPS touch screen, 960*640 resolution
- PoE Power Output: 48V PoE power output, max power 25.5W
- 12V/3A Power Output: Output DC12V/3A power out,supply temporarily power for the camera
- External Power Supply: DC 12V 1A
- Rechargeable: The full charging time is about 3-4 hours, working time lasts 8 hours.
- Working Conditions Working Temperature: -10℃ to +50℃; Working Humidity: 30%-90%
- Dimension/Weight: 204mm x 123mm x 38mm /1.5kg
- RAM(DDR): 1G
- FLASH(EMMC):    8G
- Language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, etc.

Features:
- 4-inch IPS touch screen, 960*640 resolution
- H.265 & H .264 IP, 4K video display via mainstream
- 8MP TVI test,3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
- 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
- 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
- 8MP EX-SDI test, 3840 x 2160P 25/30 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)
- HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)
- 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)
- Rapid ONVIF, Auto log in and display image, create testing report
- Chrome browser, test and set Axis camera
- AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
- CVBS camera test and PTZ control
- IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
- Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
- 48V PoE power output, DC12V 3A, power output
- Rapid video, just by one key to detect all network cameras and auto display
- Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
- CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable
- Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
- Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately *(Optional)
- Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement *(Optional)
- Optical power meter, Wavelength: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm, measurement range of -70 to +10 dBm, for optical power testing and fiber link loss relative measurement *(Optional)
- Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM *(Optional)
- Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
- Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
- Tester Play: Tester, android version mobile phone and PC display at the same time
- Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
- HDMI input support 1080P *(Optional)
- Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
- Self-update software, you can install apps with android version
- Media player, 4K video files and MKV/MP4 media files play
- Quick office, quick office app (support excel, word, ppt format) doc. editable
- Display its genuine resolution of the IP camera images
- Audio in, LED lamp, calculators, music players and other application tools

Package Included:
- 1 x IP Camera Tester V6-ADH

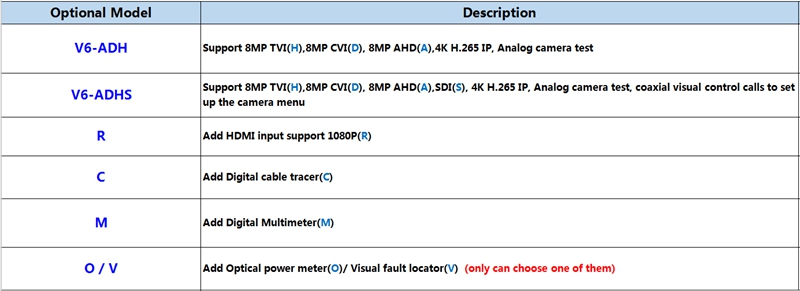

Note: The default model is V6-ADH. If other models/functions are needed, please contact us to pay extra money. Thank you!
