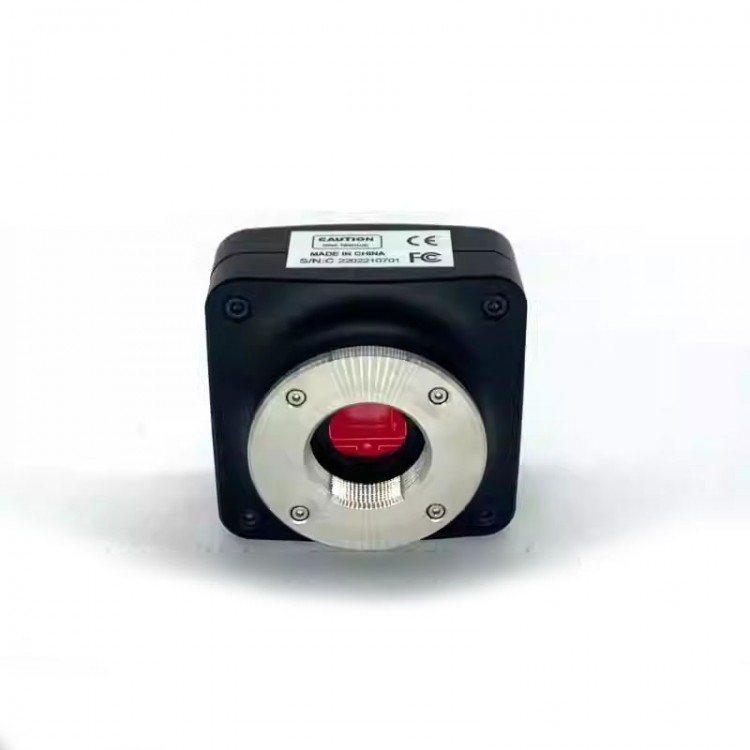

IP108000A 4K-14it (108000A) 8MP C Mount Microscope Camera USB3.0 CMOS Camera with 1.15" Sensor Size
Features:
- High-performance CMOS camera based on scientific-grade sensors for Sony
-
It provides processing software with one-click white balance, automatic
exposure, gain, saturation, brightness, contrast, sharpening, flipping,
crosshair, dark-field & flat-field correction, grayscale mode,
histogram, stitching, depth of field expansion, split counting, color
improvement, color filtering, detail enhancement, video recording, timed
collection, DPI, grayscale calibration, measurement and other functions
-
Shifts from computer CPU processing to hardware processing, which
improves the transfer speed of the camera and reduces the CPU usage
- USB3.0 interface for transmission and power supply
-
Provides professional video and image processing software, and provides
SDKs (native C/C++, C#/VB.NET, Python, Java, MatLab, LabView,
DirectShow, Twain, etc.) for Windows/Linux/macOS/Android
- Its shell made of aluminum alloy by CNC machining
-
The front of the camera sensor is equipped with a high-quality IR-cut
filter (the filter is not attached to the models with NIR mark by
default)
- There are no moving parts, and there is no blur caused by jitter
Package Included:
- 1 x Camera
- 1 x USB3.0 data cable (A male to B male gold-plated connector; 2m/6.6ft)
- 1 x USB drive (with software and driver)
Packaging Details:
- Weight: 0.55kg
Product Parameters:
Interface:
- Type: C-mount
Main Functions:
- Operation: via PC software / SDK development
- Image collection: Manual or timed collections saved in a local folder
- Video recording: Video format: H264/H265/WMV/AVI. You can set the recording time, frame rate, bitrate, encoding quality, etc.
-
Left control panel of the camera: Take photos, video, exposure, gain,
white balance (automatic, manual, ROI), color adjustment, sharpen, flip,
rotate, sample, histogram, presets, etc.
- Toolbar: Including
points, line segments, circles, arcs, text, scale, calibration,
grayscale calibration, crosshair, browsing, depth of field expansion,
stitching, high dynamics, reports and other functions
Other Parameters:
- White balance: Automatic/manual/ROI white balance
- Color technology: Ultra-Fine color engine
- SDK: For Windows, Linux, macOS, and Android
- Recording method: still image or video
-
Measurement information storage: Collected image supports hierarchical
storage and converged storage of measurement information and content
- Spectral corresponding range: NIR: 300-1100nm (380-650nm for common models)
-
Auxiliary functions: De-interlacing, color compositing, split counting,
denoising, color mapping, filtering, binarization, 3-D, broadcasting,
grayscaling, DPI, pseudo-color, color contrast brightness adjustment,
edge smoothing, detail enhancement and so on
- Language: Supports
factory reset function. Supports multiple languages such as
English/Simplified Chinese/Traditional
Chinese/Korean/Thai/French/German/Japanese/Italian/Russian
- Cooling method: natural cooling
- Size (LxWxH): 68mm x 68mm x 40.5mm/2.7" x 2.7" x 1.6"
- Fixing method: 1/4" (20) threaded hole (1pcs)
- Weight: 0.47kg/1lb
- Power supply mode: via USB3.0 interface
- Operating temperature: -10°C to 50°C
- Operating humidity: 30~80%RH
- Storage humidity: 10~60%RH
Operating Environment:
- Operating system: For Windows XP /Vista /7/8/10 (32 & 64 bit), OS X (Mac OS X) and Linux
- PC basic configuration:
* CPU: For Intel Core2 2.8GHz or higher
* RAM: 2GB or more
* USB interface: USB3.0
