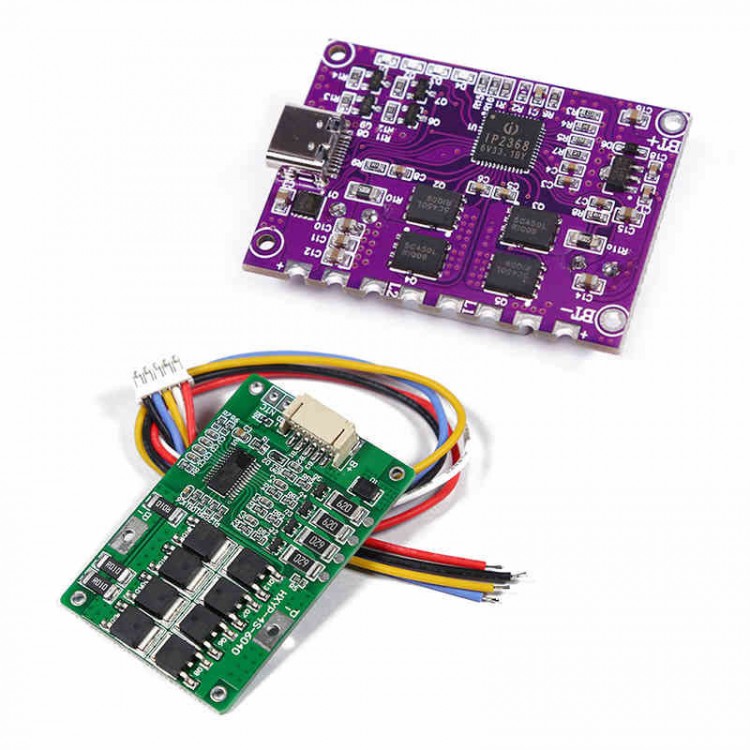

IP2368 100W Bidirectional Fast Charging Module Fast Charging Board (Motherboard + Protection Board)

IP2368 100W Bidirectional Fast Charging Module Fast Charging Board (Motherboard + Protection Board)

Read before Purchasing:
1. The product is a high-power two-way fast charging module, not a toy. The module needs to be welded or wired. And there is no free warranty after welding.

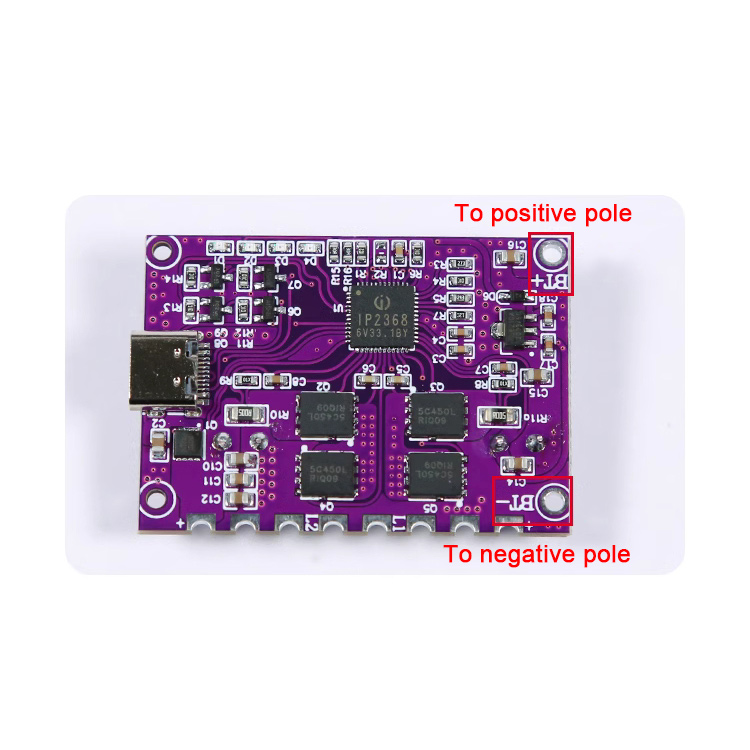

2. Be sure to pay attention to the wiring of the positive electrode and the negative electrode. Do not need to repair it if it is burned out due to wrong wiring.

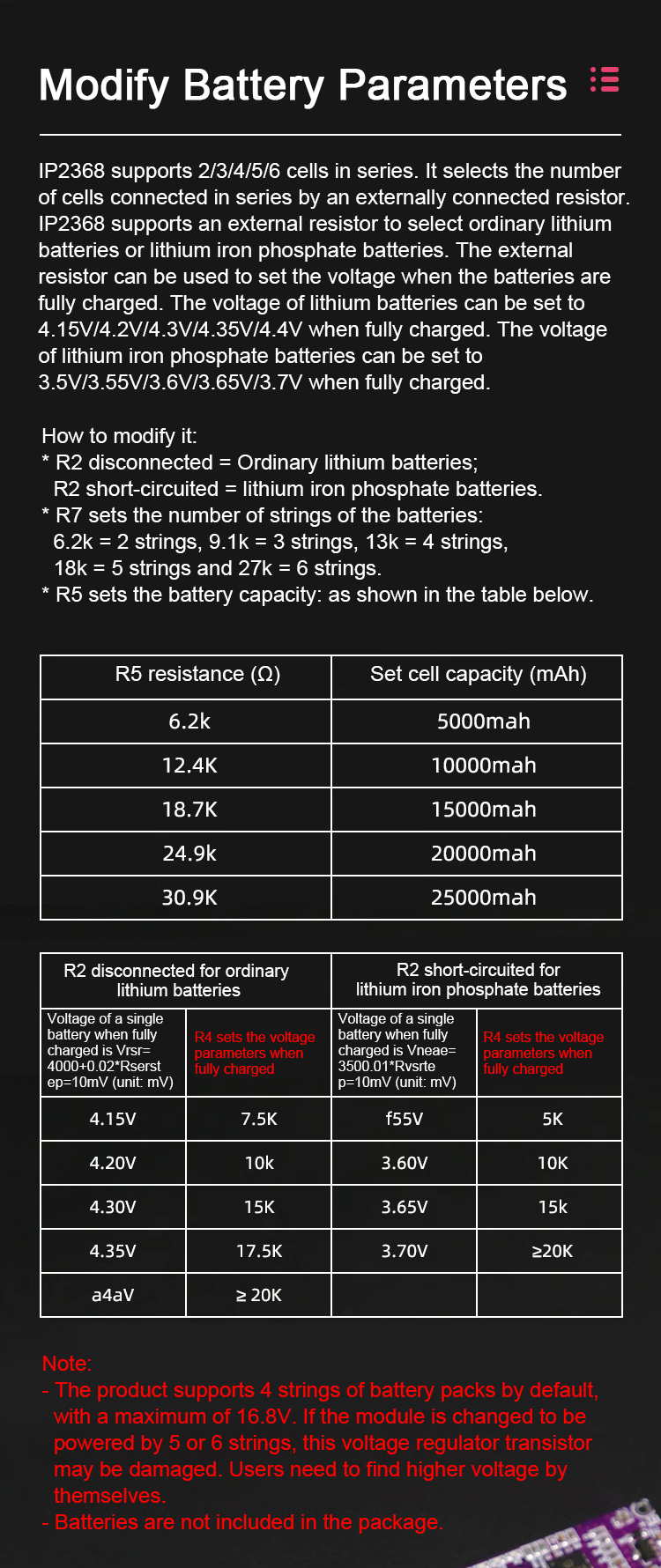

3. The default battery capacity supported by the module is 20000mAh. And the capacity can be changed to 25000mAh by modifying the resistance parameters. The module calculates the power by reading the voltage and current. If the total capacity exceeds the set value, the LED lights may not display accurately.

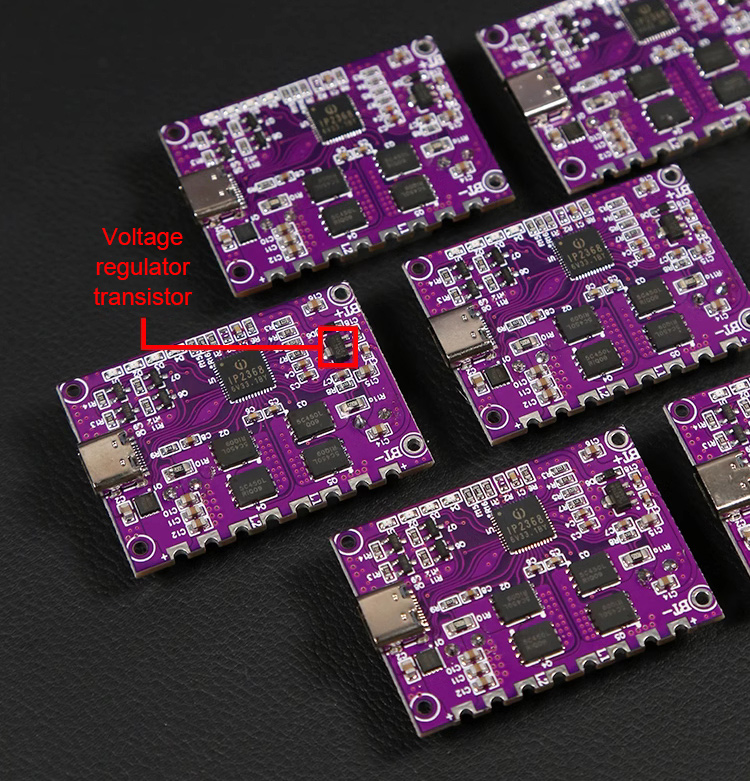

4. The product supports 4 strings of lithium batteries by default, the voltage of a single battery is 4.2V, and the voltage after the batteries are fully charged is 16.8V. For the time being, there is no service to change the voltage and parameters, and there is no corresponding component, so users need to change it by themselves. Once the product has been welded, it cannot be returned or exchanged.

Attention:
- The two-way C port of the product can only be connected to one-way electrical appliances or chargers, such as chargers, mobile phones and other electrical appliances. It is forbidden to connect a two-way C-port to the two-way C-port of the module, because it may cause frequent switching between modules and cause the above equipment to be unrecognized, and the above equipment may be damaged in serious cases.
- The bidirectional fast charging module is recommended to be connected to a battery pack with a protection board. Without a protective board, it will be impossible to prevent unexpected situations such as short circuits.
- Due to the influence of lighting, display screen and other factors, there is a certain color difference in the product, please refer to the actual product for the specific color.

Motherboard Features:

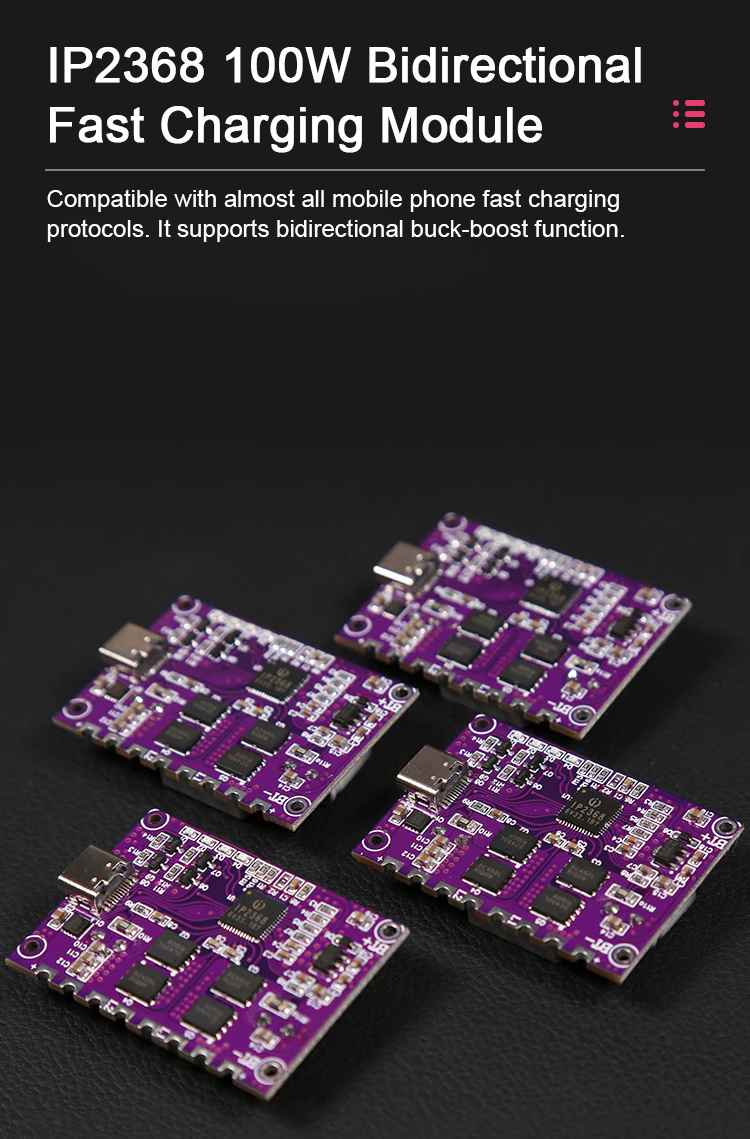

- IP2368 100W bidirectional fast charging module: It is compatible with almost all mobile phone fast charging protocols. Modify resistor to support other batteries. It supports bidirectional buck-boost function.
- IP2368 main control IC: The module adopts IP2368 main control IC, and the maximum power of both input and output can reach 100W.
- Supports almost all fast charging protocols on the market: IP2368 full protocol 100W fast charging output. The output not only supports laptops, but is also compatible with almost all mobile phone fast charging protocols.
- Two-way buck-boost function: The module has the function of two-way buck-boost. It can also output a fixed 5V or 20V regardless of the battery voltage. It should be noted that 100W must have a 20V charge/discharge voltage. If there is 12V output, the maximum current can only reach 3A, and the power is 36W.

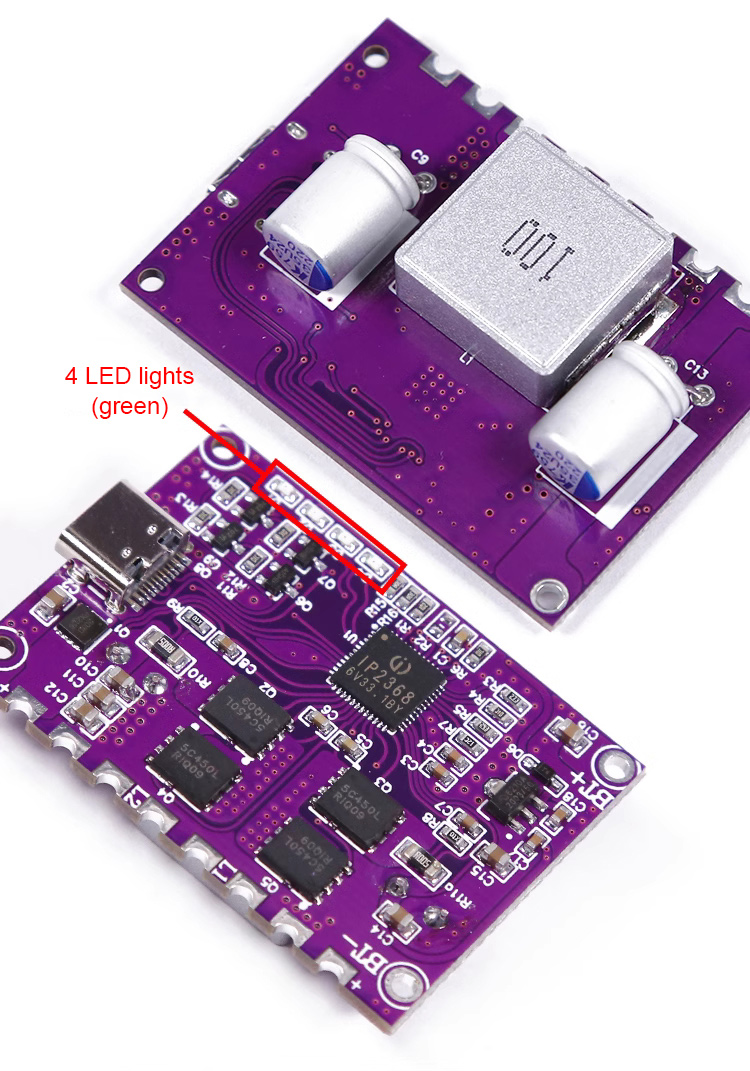

- Quality materials ensure better effect: The product adopts a 17mmx17mm (0.7"x0.7") inductor, which dissipates heat quickly, generates low heat and has a higher cost. The product comes with 4 LED lights, which can display the electricity. The indicator lights will turn on when there is input and output.
- Powered by screw holes in the tail. Supports for multi-layer overlays: The product is small in size, and can be powered by two screw holes in the tail, which does not necessarily need to be welded, making it very convenient to use. With the copper pillars, multiple modules can be stacked and connected to a single battery pack. In this way, it supports multi-port output or can be made as a UPS power supply.

Motherboard Parameters:
- Product name: 100W bidirectional fast charging module
- MAX. power: 100W
Product main control: IP2368
- With light for electric quantity: With
- Parameter modification: Supported
- Power supply mode: Welding
- Default voltage: 4 strings 12-16.8V

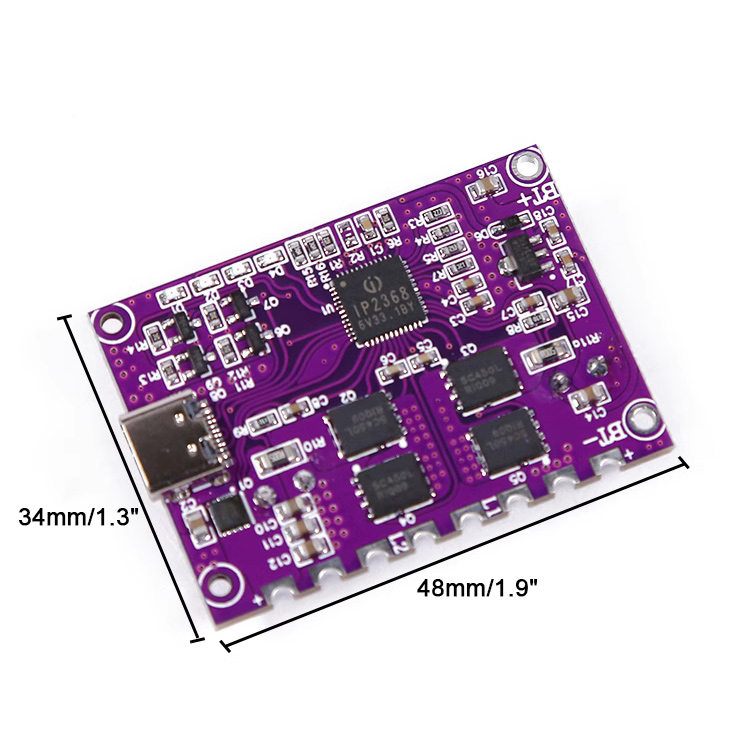

- Dimensions: 48mm x 34mm x 10mm / 1.9" x 1.3" x 0.4"
- Weight: 20g/0.04lb
- Hole spacing: 43.5mm x 28.5mm/1.7" x 1.1" (4pcs M2 screw holes)
- Product features: high power and multiple protocols
- Power supply voltage: 4 strings of lithium batteries (the resistor can be modified to support 2-6 strings of lithium batteries or lithium iron phosphate batteries). The discharge capacity of the battery pack is required to be over 5A, and the battery pack must be used together with a protection board

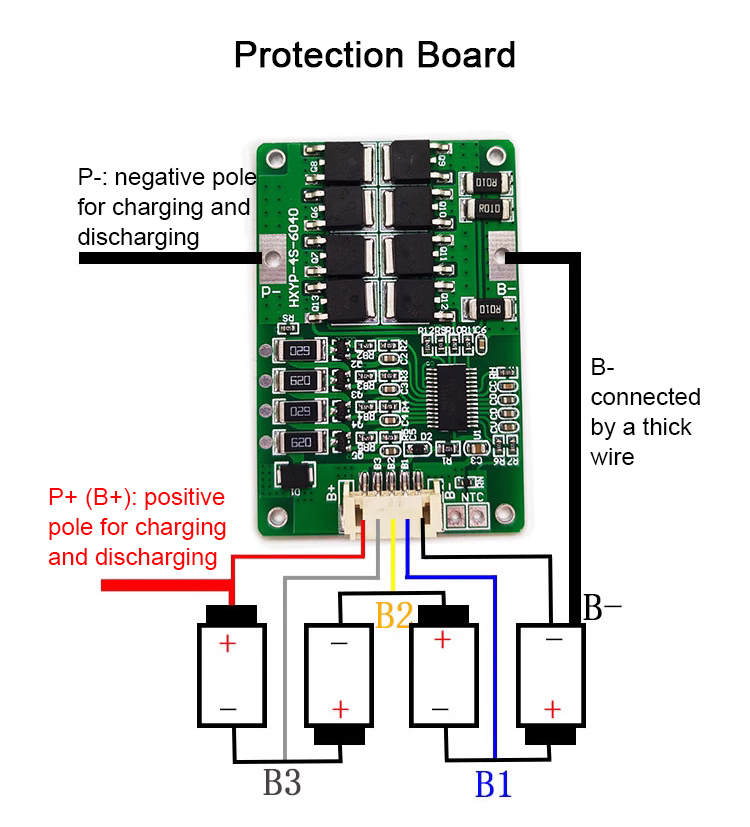

Protection Board Parameters:
- Model: HXYP-4S-6040
- Continuous working current: 18A
- Instantaneous current: 30A
- Charging voltage: 16.8-17V
- Charging current: 1-10A
- Dimensions: 60mm x 40mm x 3.6mm/2.4" x 1.6" x 0.1"
- Overcharge voltage: 4.235V±0.025V
- Overcharge release voltage: 4.19±0.05V
- Over-discharge voltage: 2.8±0.08V
- Over-discharge release voltage: 3.0±0.1V
- Balanced starting voltage: 4.19±0.05V

Package Included (w/ Protection Board):
- 1 x IP2368 Motherboard
- 1 x Protection Board
- 1 x Connection Cable

Packaging Details:
- Weight: 0.25kg
