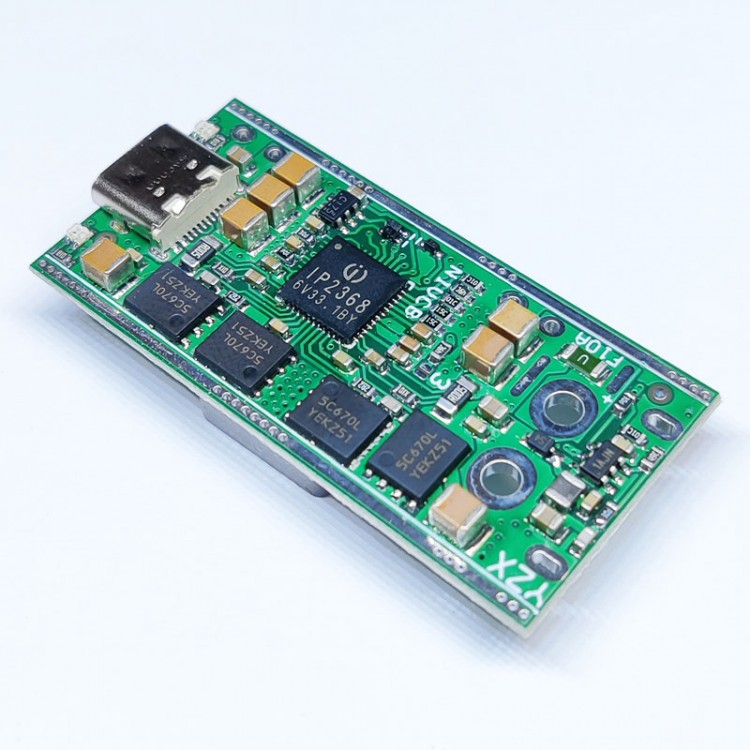

• IP2368 Two-way 100W Fast Charging Module Voltage Regulator Charging Board  XT60 to Type-C interface PD3.0 QC2.0/3.0

IP2368 Two-way 100W Fast Charging Module Voltage Regulator Charging Board XT60 to Type-C interface PD3.0 QC2.0/3.0

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.50
  • Price in reward points: 245 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.01 $23.52 $22.79 $21.81 Contact US
Quantity:

IP2368 Two-way 100W Fast Charging Module Voltage Regulator Charging Board  XT60 to Type-C interface


Description:
- Original and original chip external DC-DC main power supply +emark power supply,
- The original Schmidt trigger external emark circuit replaces a stack of sbmos, greatly improving the stability and reducing the board size
- New and original power tubes 5c670*4 PCs
- Japan Murata X7R chip capacitors *7
- TID certified krconn high-quality C-Port, pluggable and high current resistant
- Taiwan Zhimei 125 ℃ high temperature resistant solid state capacitors *2
- Taiwan Meiji magic integrated high frequency inductor

Note:
This Fast charge module is designed for 4 series batteries. Connect the 3 jumpers to set 3 strings. If you need other voltages, you can change the resistance according to the 2368 document.
After the battery is connected, please charge and activate it before reverse output.

Specifications:
- Volume: 50*26*17.5mm excluding XT60 plug
- Weight: About 40g
- Input: default 4-string battery 12-16.8v, XT60 male socket
- Output: 100W bidirectional pd3.0, compatible with qc2.0-3.0, fcp-scp, Samsung AFC, note no PPS
- Static power consumption: about 0.4ma
- Output ripple: about 40mv for 5v2a and about 300mV for 20v5a
