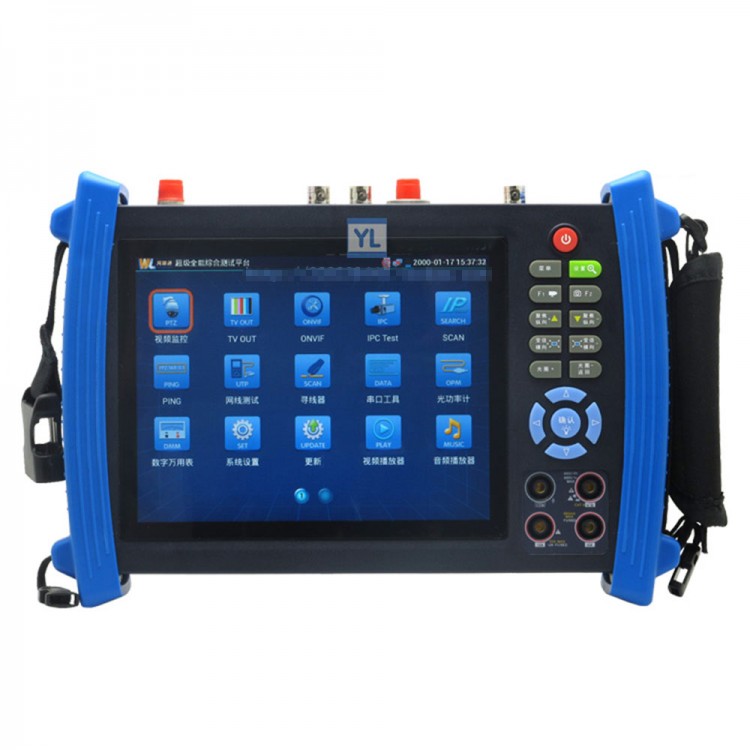

IPC-8600ADHS HD-AHD CVI TVI +SDI 7" Touch HD IP Camera Display TDR PTZ Controller POE CCTV Tester Monitor

IPC-8600ADHS HD-AHD CVI TVI +SDI 7" Touch HD IP Camera Display TDR PTZ Controller POE CCTV Tester Monitor

Description:
- IP camera tester IPC-8600 is great CCTV tools for IP camera’s installation and maintenance, both for Analog and IP camera test, built in video level meter, Analog and digital video signal output, IP address scan, Ping test, Port flashing, cable test, Digital Multi-meter, optical power meter and TDR cable tester etc ,easy to operate.
- 12V 2A power output for camera ,48V PoE power supply,
- Directly provide PoE power to IP Camera 5V 2A power output(as a power bank 13000mAh),
- HDMI output；Audio input and output,
- Network bandwidth testing, image 180degree rotating, the power and networkports on the top of the tester, easy to connect the cable.
- CCTV system installation andmaintenance
- Network cabling project installationand maintenance—Dome camera IP cameratesting—Video transmission channel testing—PTZ controller

Features:
- 7 inch touch screen, 1024*600 resolution. NEW
- Capacitive touch screen, OSD menu,
- Touch screen and key operation
- Built-in WIFI, wireless network camera test  NEW
- Support 1080P HD camera
- Support ONVIF camera and Support DAHUA, HIKVISION, KEDA, Samsung and TIANDY camera. etc
- Support running the mobile phone or tablet mobile client software of the IP camera manufacturers.
- Image can rotate 180 degrees NEW
- Display real resolution of the IP camera images
- Video screenshot ,video recording, files named and save, easy to find NEW
- Support network PTZ controller (ONVIF)
- Support 1080P HD video files and MKV/MP4 media files play
- PTZ controller ,Photograph, Video record, Record playback
- Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement NEW
- Optical Power Meter, it can measure the optical power value
- Visual fault locator, to test fiber’s bending and breakage
- TDR cable test, Digital Multi-meter, optical power meter, and Visual fault locator, etc function NEW
- Digital video color bar output, analog video color bar and testing image output NEW
- POE voltage measurement, PING test ,IP address scan, port flashing etc
- PoE DC48V power output, Max power 24W NEW
- 12V /2A power output NEW
- 5V 2A power output, as the power bank NEW
- HDMI output, 1920*1080P Resolution NEW
- Audio in /out
- LED lamp, calculators, music players and other application tools
- Support customers self update software
- Lithium Ion Polymer Battery, working time lasts 16 hours


Application:
- CCTV system installation and maintenance
- Network cabling project installation and maintenance
- Dome camera IP camera testing
- Video transmission channel testing
- PTZ controller

In the model , IPC-8600ADHS:
- ADH means AHD/CVI/TVI camera test.
- SDI means camera Tester.

Package List:
- 1 x IPC-8600ADHS
- Accessories
