IPC8600MOVTS IP Security Camera CCTV Tester Monitor SDI PTZ Control PoE IP Scan

IPC8600MOVTS IP Security Camera CCTV Tester Monitor SDI PTZ Control PoE IP Scan

Description:

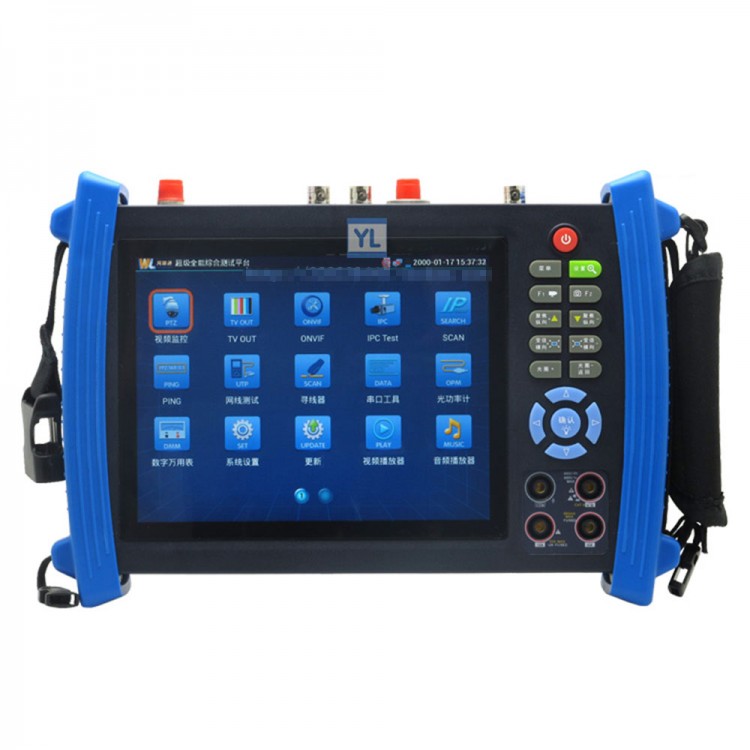

IP camera tester IPC-8600MOVTS is great CCTV tools for IP camera’s installation and maintenance, both for Analog and IP camera test, built in video level meter, Analog and digital video signal output, IP address scan, Ping test, Port flashing, cable test, Digital Multi-meter, optical power meter and TDR cable tester etc ,easy to operate

Improved IP camera tester,After charging 7~8 hours, normal working time 16 hours, built in WIFI, test Wireless IP Camera; 12V 2A power output for camera, 48V PoE power supply, Directly provide PoE power to IP Camera 5V 2A power output (as a power bank 13000mAh), HDMI output; Audio input and output, Network bandwidth testing, image 180 degree rotating,the power and network ports on the top of the tester, easy to connect the cable.

IP Cameras (onvif protocol)+ analog cameras+SDI = video display
Digital multimeter+optical fiber power meter+Visual fault locator+TDR+SDI ==full functions

Modules for CVI, AHD and TVI also can be added now, but you can select one or two of them or CVI, AHD,TVI together to combine with basic IPC8600 or IPC8600M/O/V/T. Please kindly detailed information as below.

This device will be shipped by EXPRESS, such as DHL, UPS, TNT or EMS as its weight is more than 2KG.

Features:
- 7 inch touch screen, 1024*600 resolution. NEW
- Capacitive touch screen, OSD menu,
- Touch screen and key operation
- Built-in WIFI, wireless network camera test  NEW
- Support 1080P HD camera
- Support ONVIF camera and Support DAHUA, HIKVISION, KEDA, Samsung and TIANDY camera. etc
- Support running the mobile phone or tablet mobile client software of the IP camera manufacturers.
- Image can rotate 180 degrees NEW
- Display real resolution of the IP camera images
- Video screenshot ,video recording, files named and save, easy to find NEW
- Support network PTZ controller (ONVIF)
- Support 1080P HD video files and MKV/MP4 media files play
- PTZ controller ,Photograph, Video record, Record playback
- Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement NEW
- Optical Power Meter, it can measure the optical power value
- Visual fault locator, to test fiber’s bending and breakage
- TDR cable test, Digital Multi-meter, optical power meter, and Visual fault locator, etc function NEW
- Digital video color bar output, analog video color bar and testing image output NEW
- POE voltage measurement, PING test ,IP address scan, port flashing etc
- PoE DC48V power output, Max power 24W NEW
- 12V /2A power output NEW
- 5V 2A power output, as the power bank NEW
- HDMI output, 1920*1080P Resolution NEW
- Audio in /out
- LED lamp, calculators, music players and other application tools
- Support customers self update software
- Lithium Ion Polymer Battery, working time lasts 16 hours
- SDI CAMERA Test

Application:
- CCTV system installation and maintenance
- Network cabling project installation and maintenance
- Dome camera IP camera testing
- Video transmission channel testing
- PTZ controller

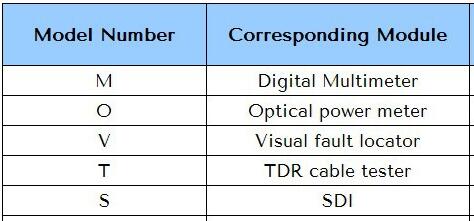

NOTE: In the model number, M means Digital multimeter; O means Optical power meter; V means Visual fault locator; T means TDR cable terter; S means SDI camera Tester.

Package List:
- 1 x IPC8600MOVTS
- Accessories
